911 Turbo Targa F6-3299cc 3.3L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Coordinates
>>

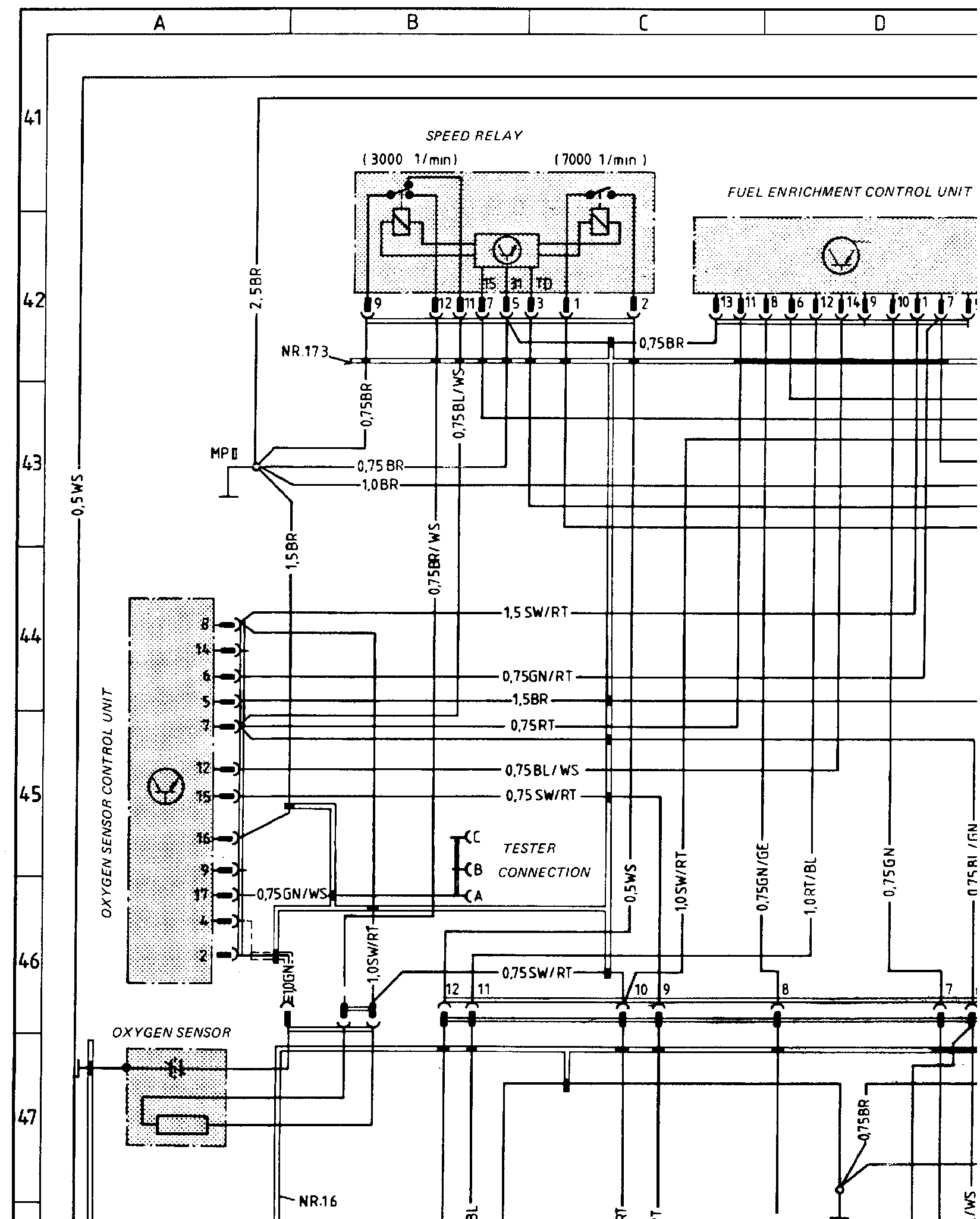

A41 to P50 ENGINE, (K-Jetronik) Oxygen Sensor System
A41 to P50 ENGINE, (K-Jetronik) Oxygen Sensor System
