Fuel Filter: Service and Repair

REMOVING AND INSTALLING FUEL FILTER

1. Disconnect ground strap from both batteries

2. Remove fuel line coupling nut.

Note: Use rag to prevent fuel spillage.

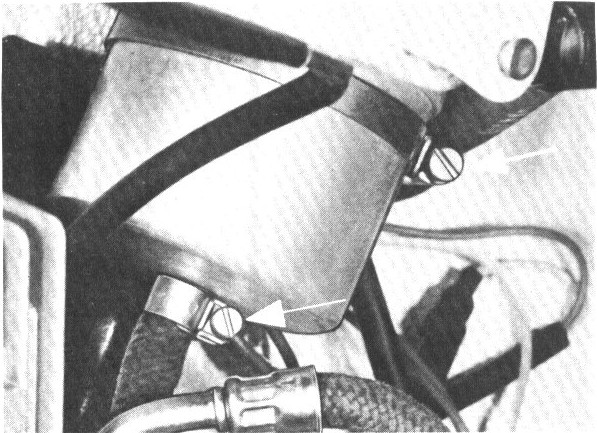

3. Remove retaining clamp and hose clamp and remove filter.

Note: Use an appropriate vessel to collect fuel which may be running out.

4. Do not overtighten the retaining strap since this could deform the filter assembly.

5. Check all connections for leaks.

6. Bleed fuel line system. Service and Repair
