Bleeding Fuel Line System
BLEEDING FUEL LINE SYSTEM The fuel injection system must be bled (prior to starting) whenever a fuel line system component has been replaced.
1.
Remove intake horn with filter cartridge.
2.
Switch the ignition on.
3.

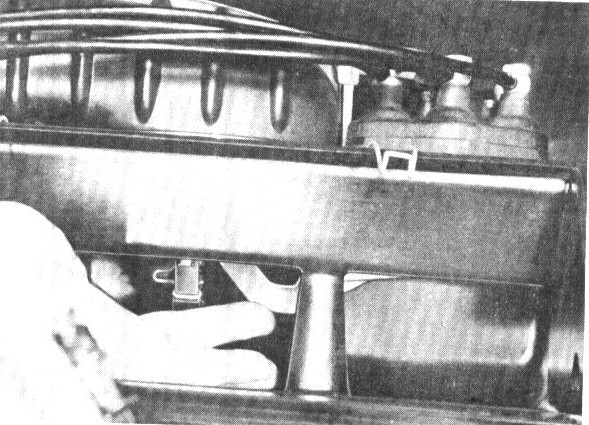

Press diaphragm up by hand to stop (for 1 second to a maximum of 5 seconds) until the fuel lines are filled and the injection valves spray fuel audibly.
