Output Shaft: Service and Repair











Disassembly

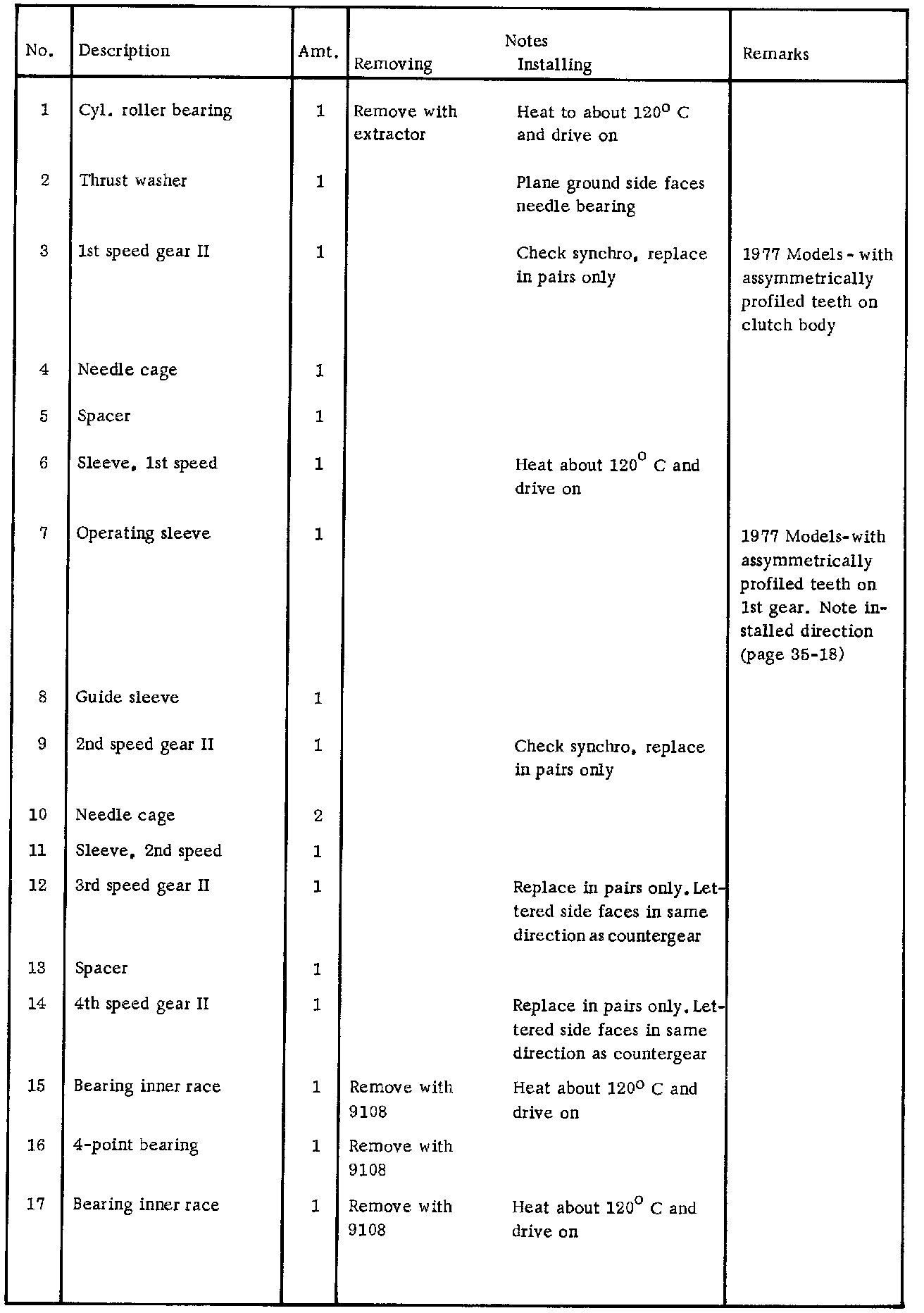

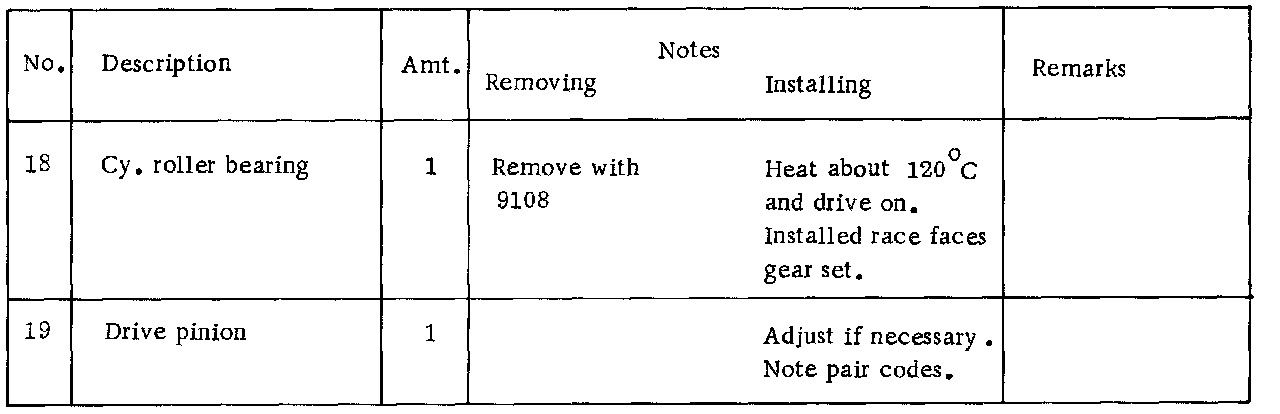

NOTE: The blow-up drawing shows the entire drive pinion without clamping plate for better understanding. The parts up to and including number 14 are taken off and installed on an installed drive pinion.

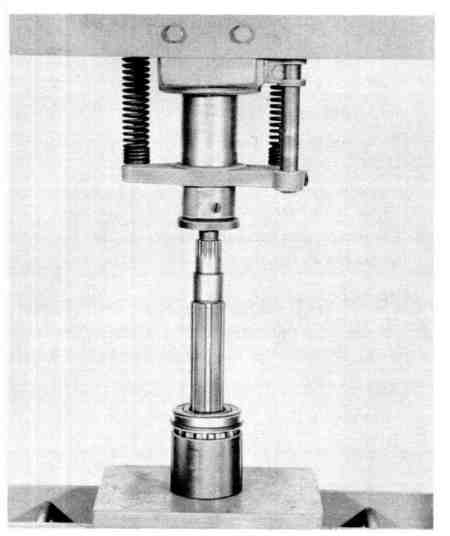

- Remove cylindrical roller bearing and four point bearing with special tool number 9105.

Assembly
- Heat cylindrical roller bearing to about 120°C and drive on.

NOTE: Install bearing so that the two-part roller cage with installed race faces gear set. Asymmetrically profiled teeth of 1st/2nd gear operating sleeve must face toward 1st gear.
