Valve Guide: Testing and Inspection
Checking valve guides 1.
Remove remainders with a cleaning reamer.
2.
Place a new valve in
valve guide and make sure that valve stem end is flush with mating surface of cylinder head/
camshaft housing.
3.

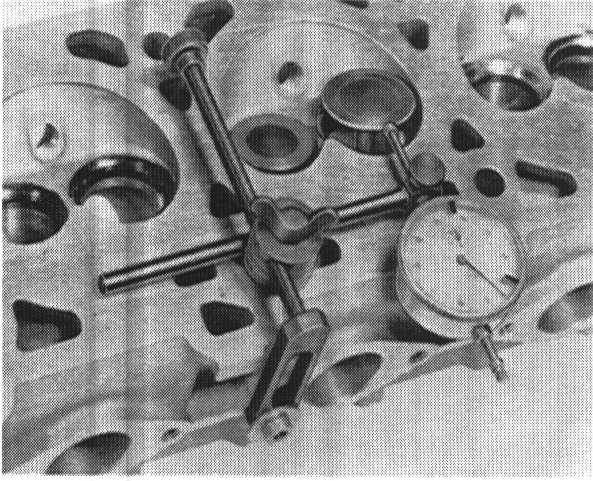

Check clearance with a dial gauge in dial gauge holder VW 387.
Wear limit =
0.8 mm
