Control Arm: Service and Repair

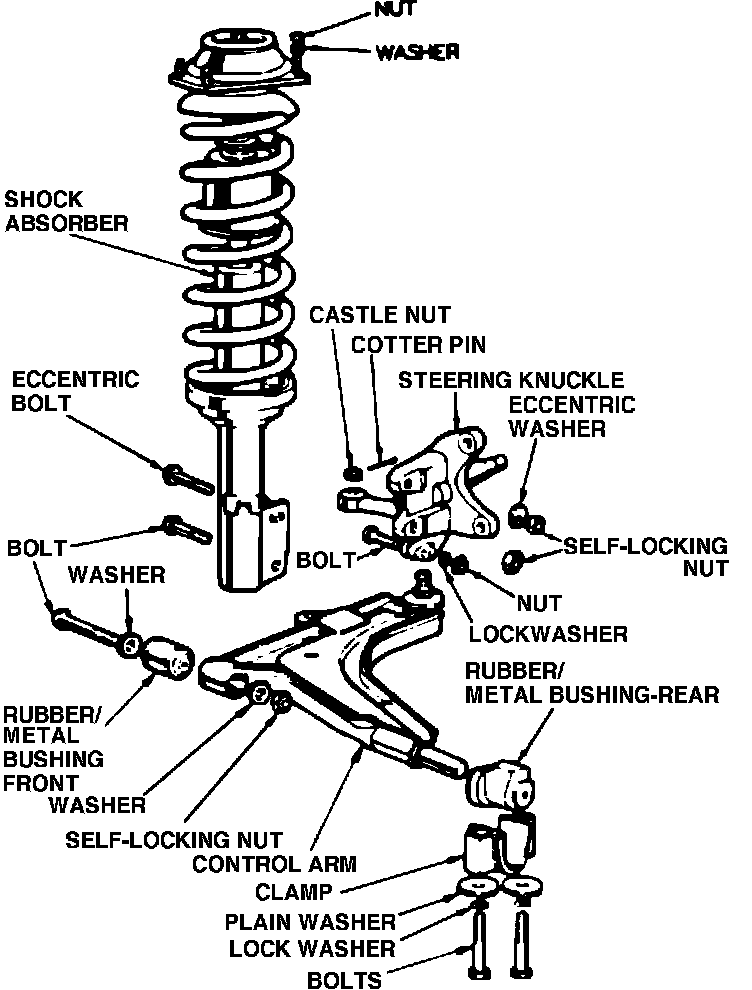

Fig. 1 Front suspension exploded view.:
1.
Raise and support vehicle.
2.
Remove
wheels and
ball joint bolt,
Fig. 1. 3.
Remove two metal/rubber rear bushing bolts.
4.
Remove bushing clamp and bushing.
5.
Remove front metal/rubber bushing bolt.
6.
Remove
control arm.
7.
Reverse procedure to install.
