Disassembling Rear Cover

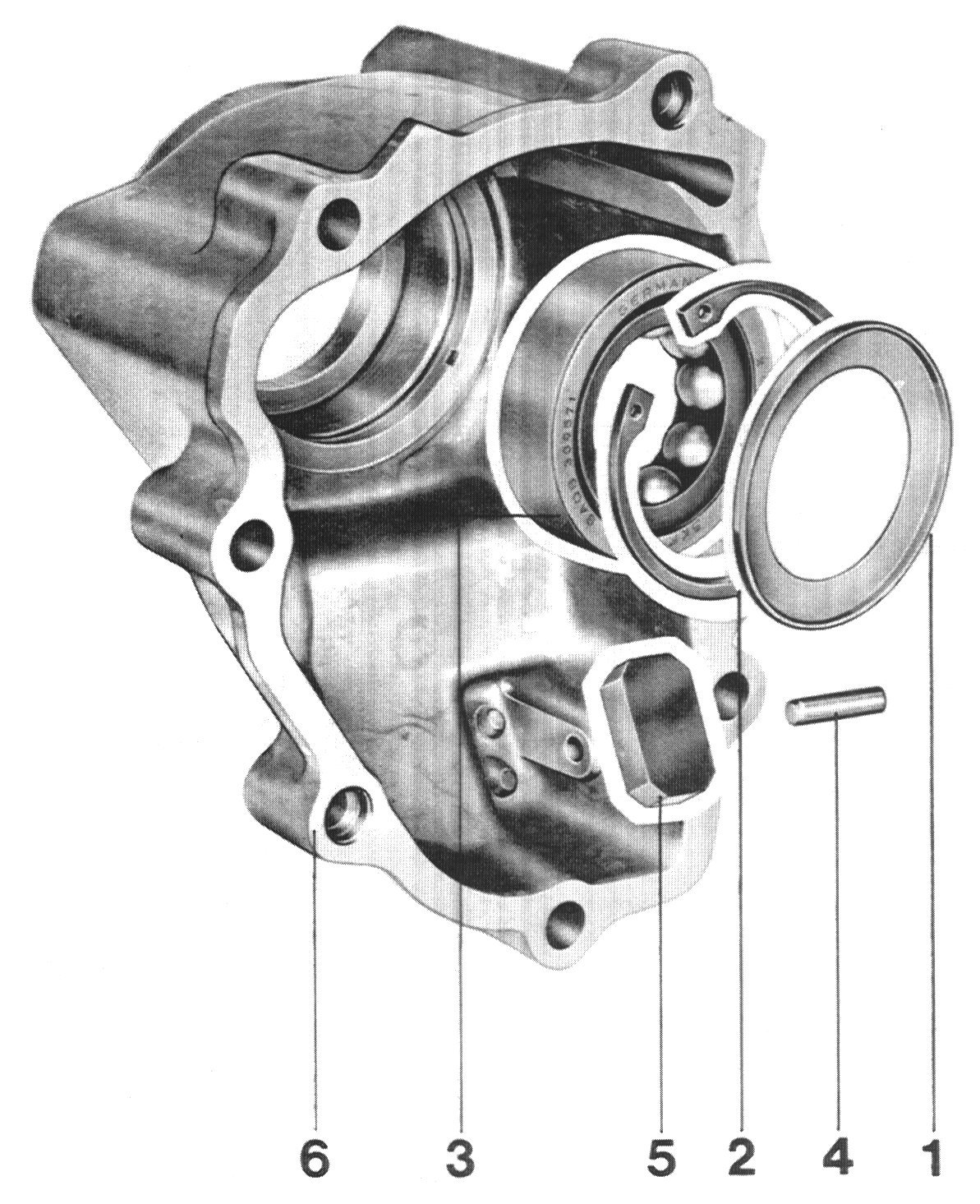

Exploded View:

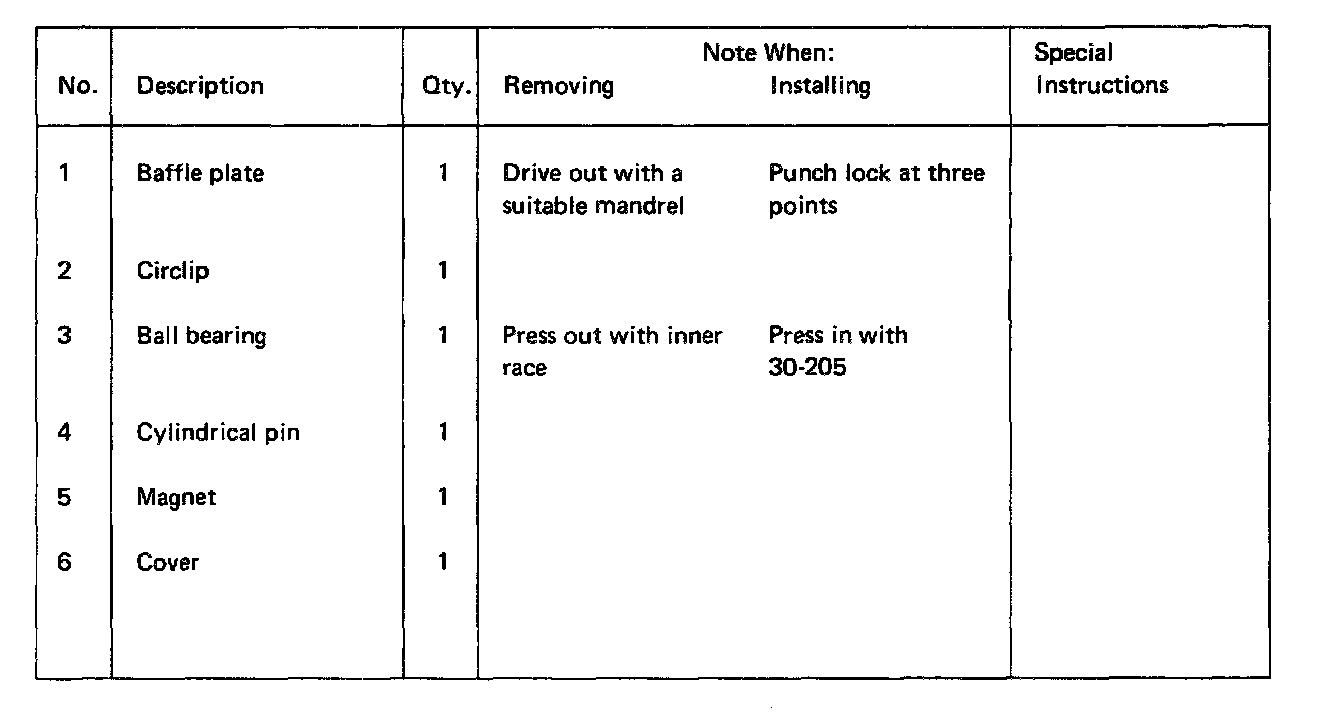

Description:





Disassembling

1. Drive out baffle plate with a suitable mandrel and remove circlip.





2. Press out ball bearing, inserting inner race of ball bearing for this purpose.
