Installing Gear Carrier

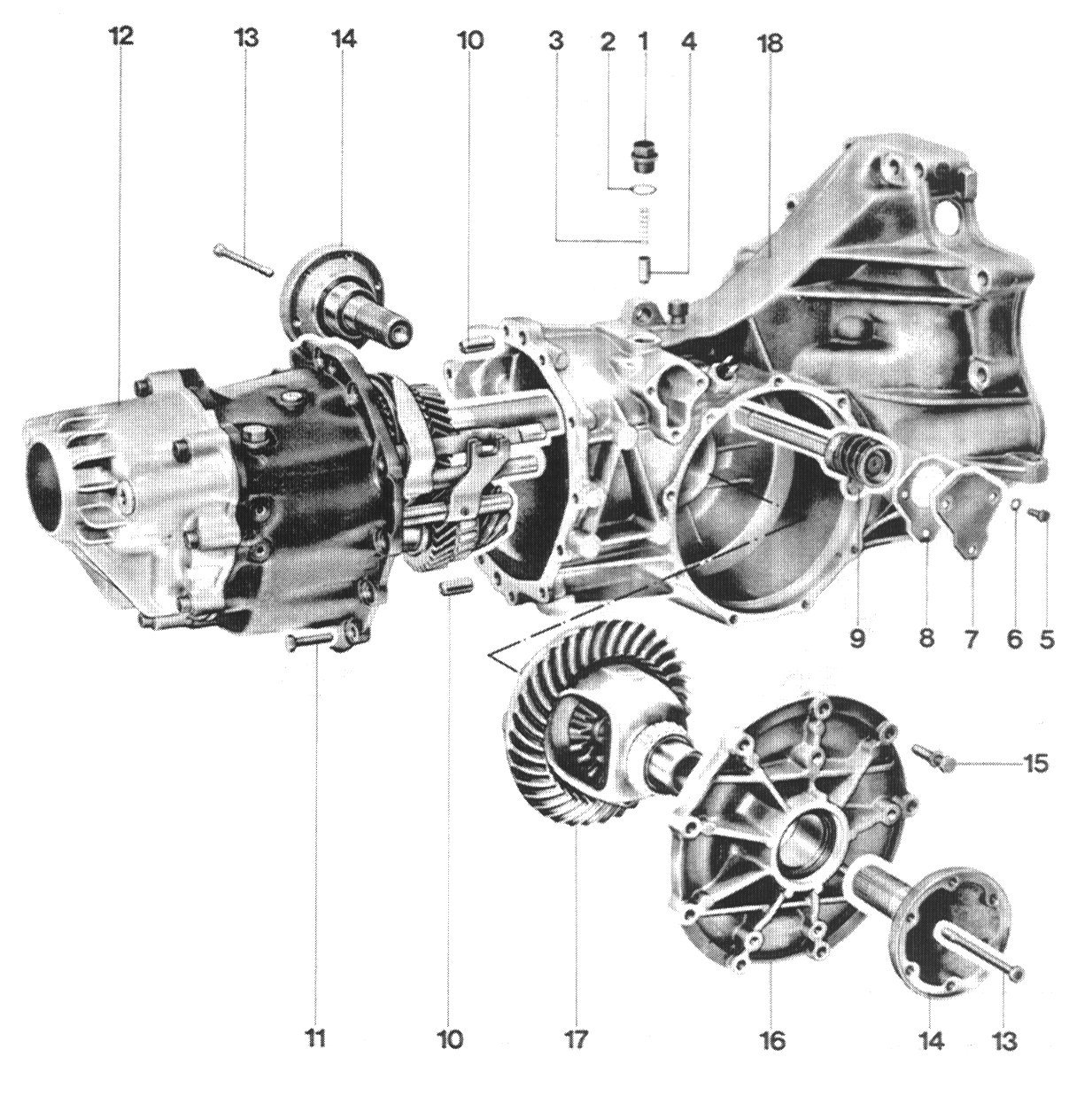

Exploded View:

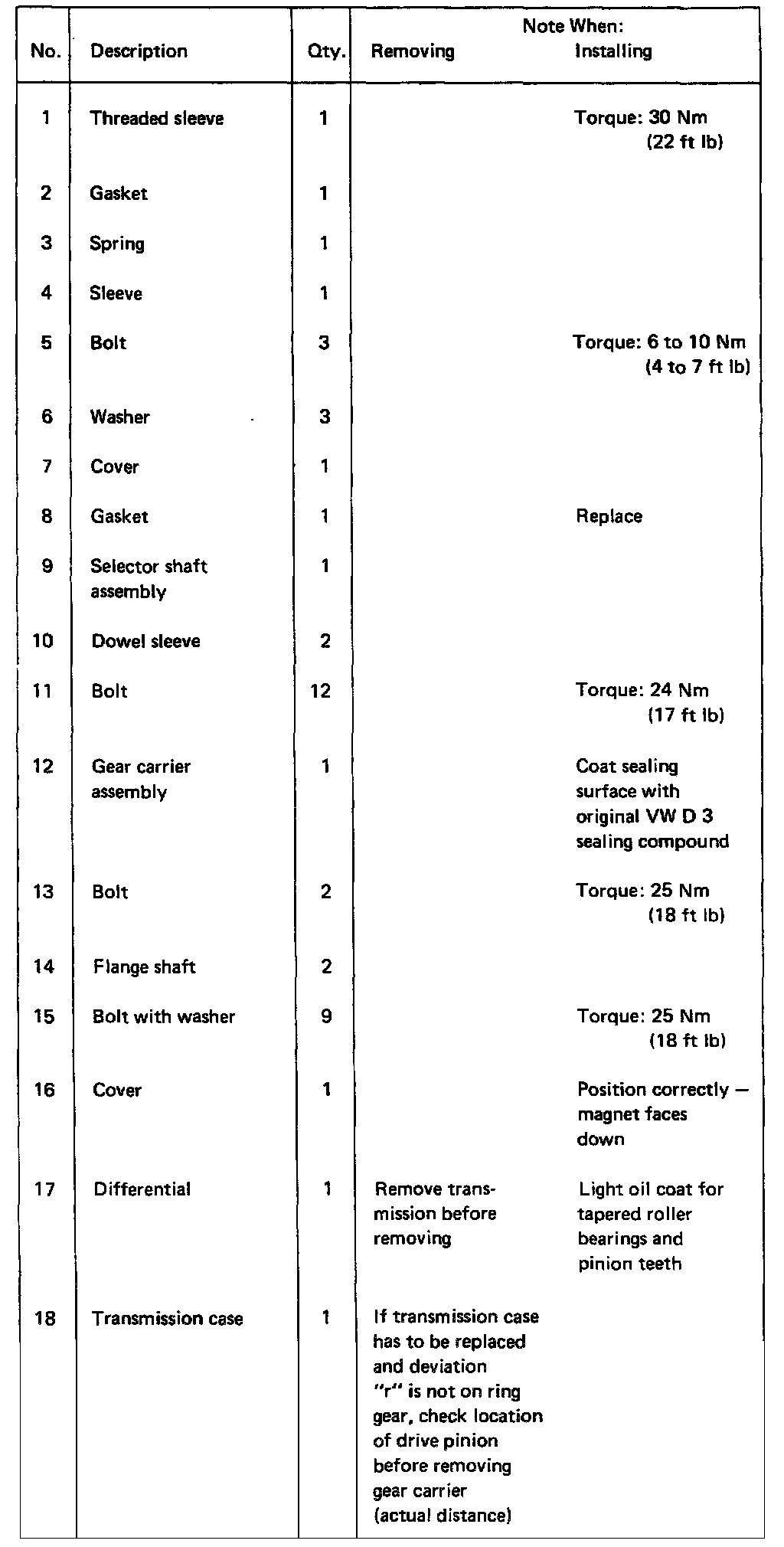

Specifications (Manual Transmission):





Installing

Note: It is recommended to install input shaft seal after installation of gear set (danger of damaging).

1. Give gear carrier/transmission case sealing surface a thin coat of original VW D 3 sealing compound. Slide Special Tool 9178 on spline of input shaft and install gear carrier with set of gears in transmission case.

2. Drive in dowel sleeves and tighten mounting bolts to specified torque.

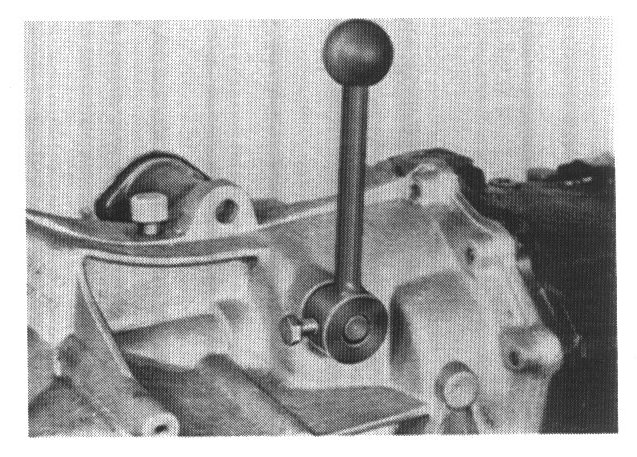

3. Check by shifting through all gears with Special Tool 9155.
