Checking Synchronizer Rings



1. Clean synchronizer rings and gears.

Synchronizer Rings:

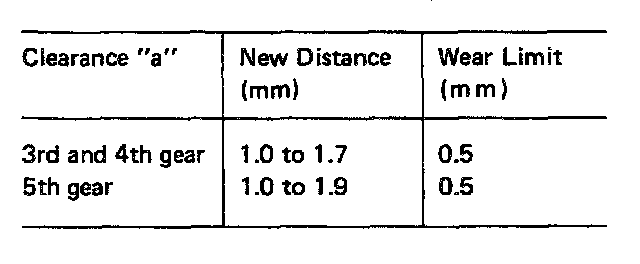

Specifications:

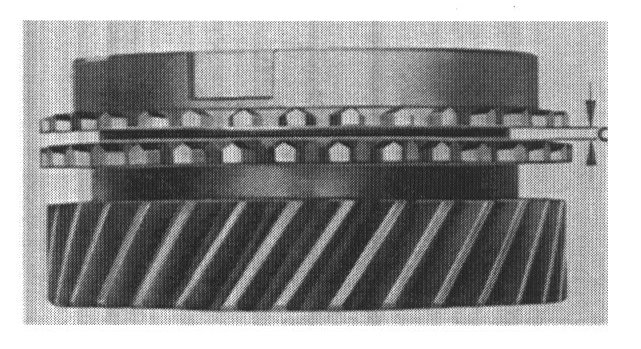

2. Press dried synchronizer rings on tapers of gears and measure clearance "a" with a feeler gauge blade.
