USING THE FSV 102 SERVICE UNIT

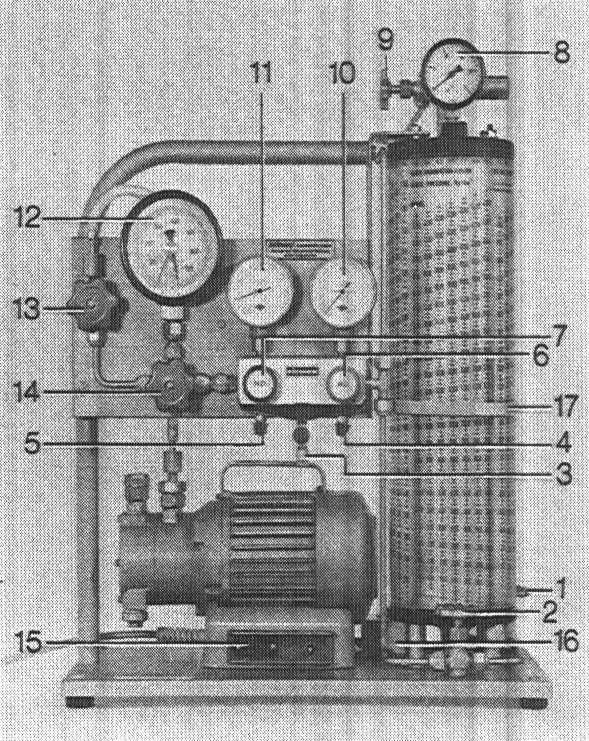

This unit is for the testing, evacuation, flushing and filling of air- conditioning Systems. Essentially, the unit consists of a vacuum pump filling cylinder with electric heating, measurement instruments, and valve battery.

1 - Flask-connection valve
2 - Filling valve (liquid)
3 - Bleed nipple
4 - High-pressure connection nipple
5 - Low-pressure connection nipple
6 - High-pressure cut-off valve
7 - Low-presssure cut-off valve
8 - Pressure gauge (filling cylinder)
9 - Filling valve (gaseous)
10 - Pressure gauge (high pressue)
11 - Pressure gauge (low pressure)
12 - Torrmeter
13 - Evacuating valve
14 - Torrmeter meter cutoff valve
15 - Pump switch
16 - Heating switch
17 - Adjustment ring for refrigerant level
