Engine Speed Sensor: Service and Repair

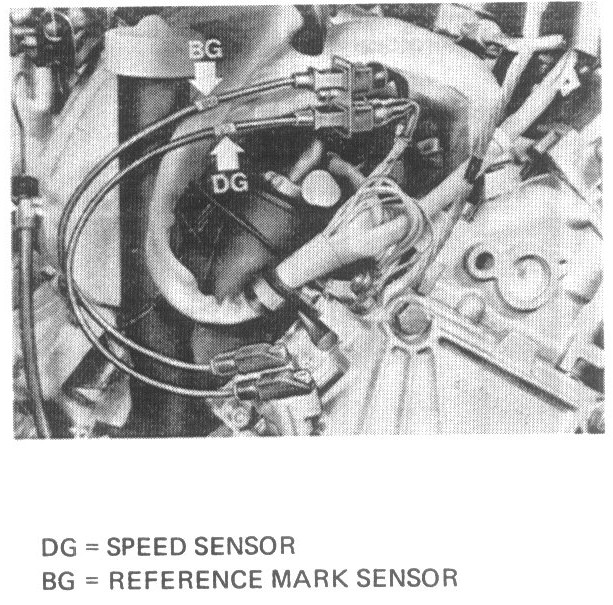

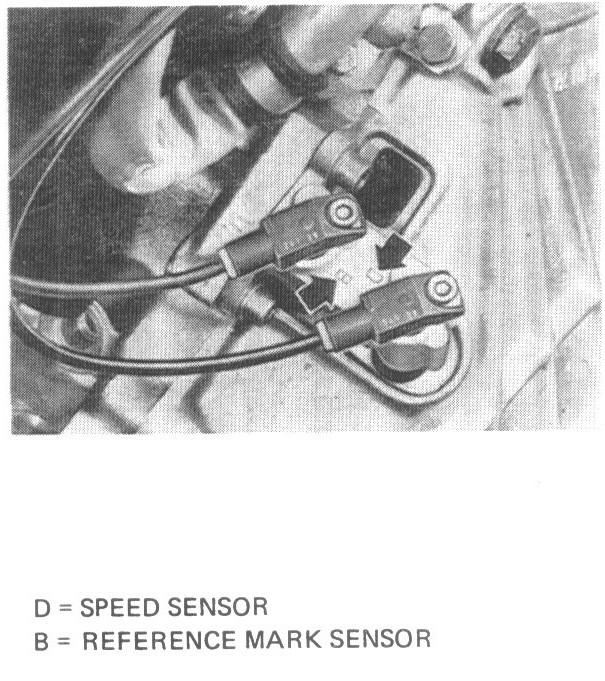

REMOVING AND INSTALLING SPEED AND REFERENCE MARK SENSORS

Removing

1. Disconnect plugs.

2. Unscrew bolt and pull out sensor while turning back and forth at same time.

Installing

Note: Sensors have permanent magnets. Make sure that sensors do not have any metal parts stuck on them before installation.

1. Check codes on sensors. Never use force when installing.

2. Tighten sensors. Tightening torque: 8 Nm (6 ft lb).

3. Check marks when connecting sensors.
