Engine: Application and ID

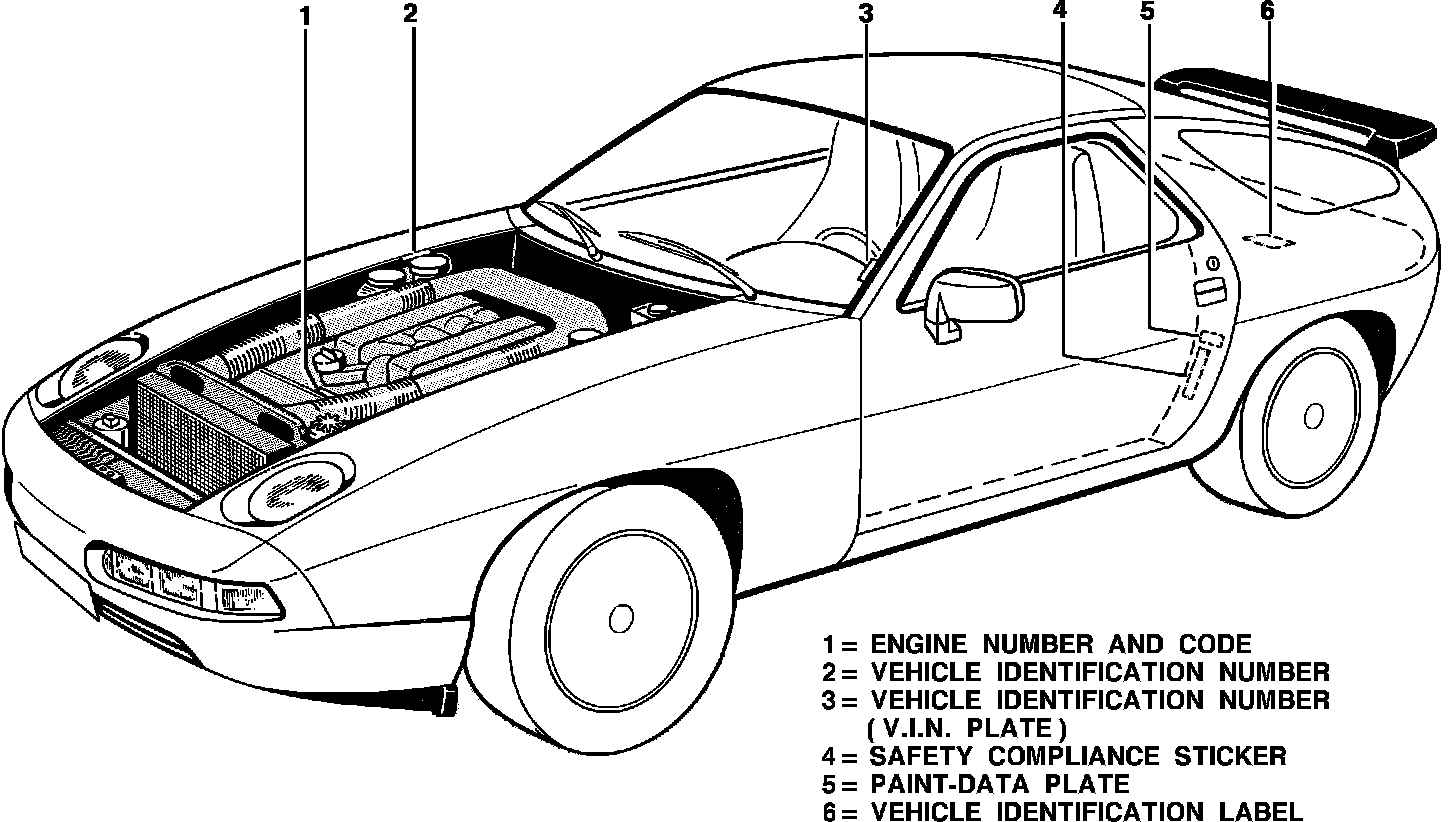

Fig. 19 I.D. Number Locations:
IDENTIFICATION NUMBER LOCATIONS:
GENERAL:
For vehicle identification number locations see Fig. 19.
Fig. 20 V.I.N. Plate Location:
V.I.N. PLATE:
The I.D. plate is located at the driver side windshield pillar, visible through windshield, Fig. 20.

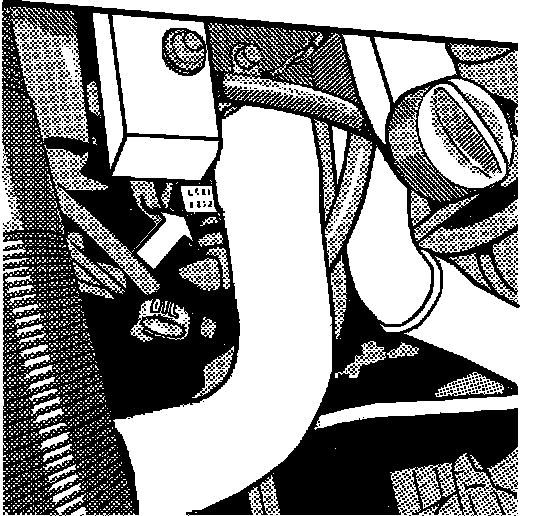

Fig. 21 Engine Code Location:
ENGINE NUMBER:
The code is located on engine block, top of front crankcase reinforcing rib, Fig. 21.
Fig. 9 V.I.N. Decoding System:
V.I.N. IDENTIFICATION:
The vehicle identification number (V.I.N.) can be decoded as shown in Fig. 9.
Fig. 12 Engine Number Decoding System:
ENGINE CODE IDENTIFICATION:
The engine code can be identified as shown in Fig. 12.
