Connecting Rod: Service and Repair

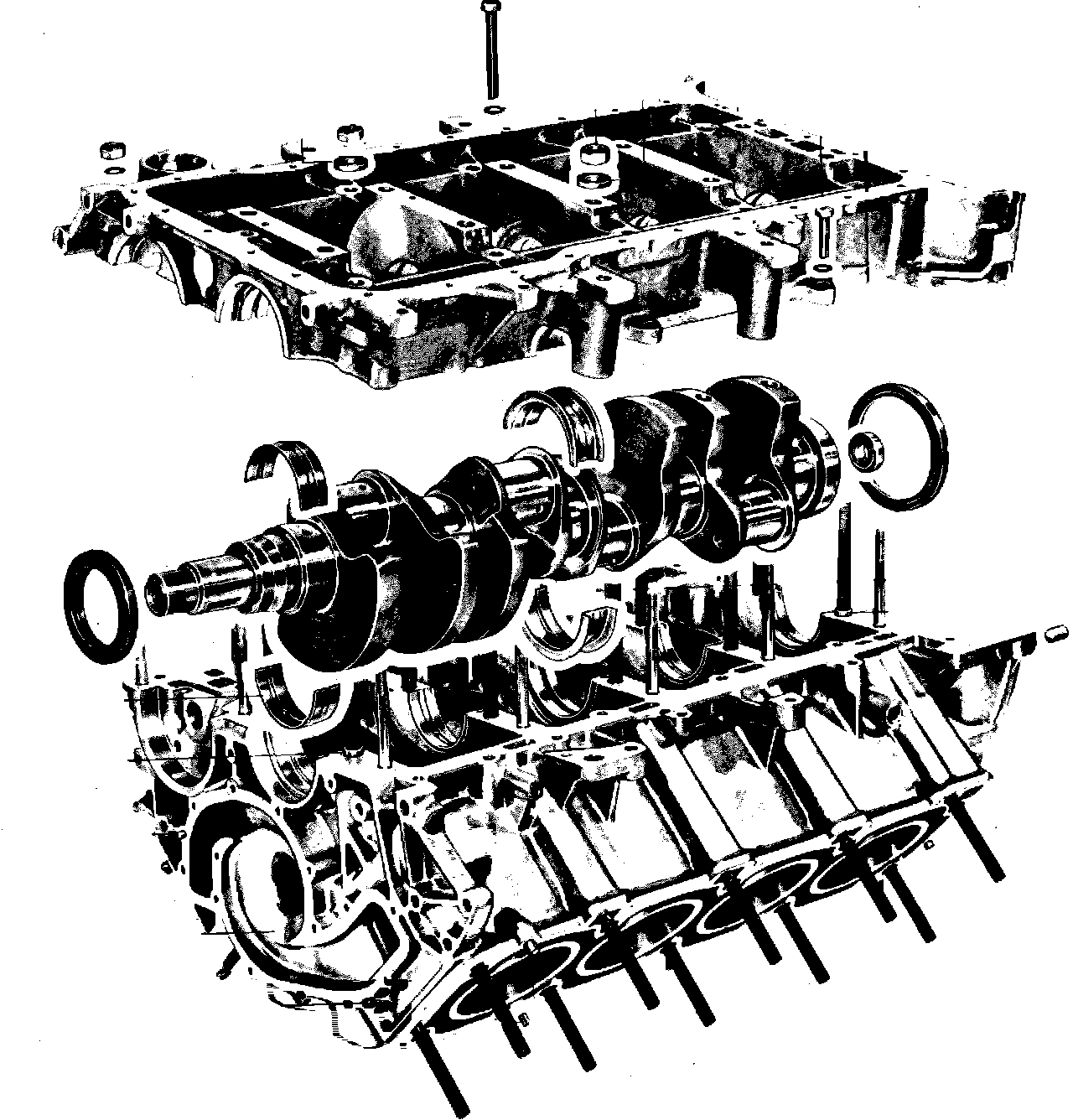

Fig. 8 Crankcase & Crankshaft Exploded View:
Fig. 9 Connecting Rod & Cap Installation:

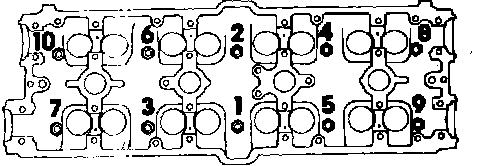

Fig. 10 Crankshaft Tightening Sequence:
Narrow side of
connecting rod and cap face adjacent connecting rod. Wide side faces
crankshaft counterweight,
Figs. 8 and 9. Torque crankshaft lower section attaching bolts in sequence shown in
Fig. 10.
