Removing and Installing High-Frequency Sensor

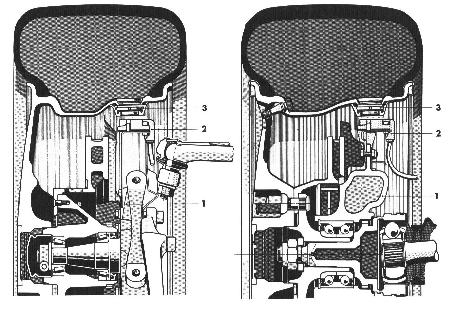

Removing and installing high-frequency sensor (tire pressure warning system)

Notes:
- The front and rear high-frequency sensors (HF sensors) (2) have different cable lengths. The rear sensors have shorter cables.
- The distance between HF sensor (2) and the pressure-operated switch (3) is approx. 6 ± 2 mm. This distance is maintained as long as the HF sensor holder is not out of shape.





1. Remove the HF sensor fastening screws from the holder.

2. Slide the HF sensor (2) out of the holder.

3. Undo and separate the HF sensor connectors at steering knuckle or wheel mount (1).

4. Carry out HF sensor test after installation (tire pressure warning system diagnosis, menu 2) Menu 2 = Sensors
