Alignment - Revised Specifications

Group:
4

Number:
9311

Part Identifier:
4400

September 28, 1993

Subject:
Revised and new alignment specifications.

ATTENTION: Service Manager / Service Technician

Models Affected:
911 Carrera 2/4 1989-
911 Turbo 1991, 1992
911 Speedster 1994
911 3.6 liter Turbo 1994

General Information:
The following information is for U.S. vehicles only. Any changes from previous specifications are located in the shaded boxes of this bulletin.

Specifications are met only with vehicles that have a full fuel tank, spare tire and tools in the vehicle.

Specifications that have changed are in the area of 911 Carrera 2/4 rear toe and camber, 911 3.6 liter Turbo front height, rear height, front toe, front camber and rear camber.

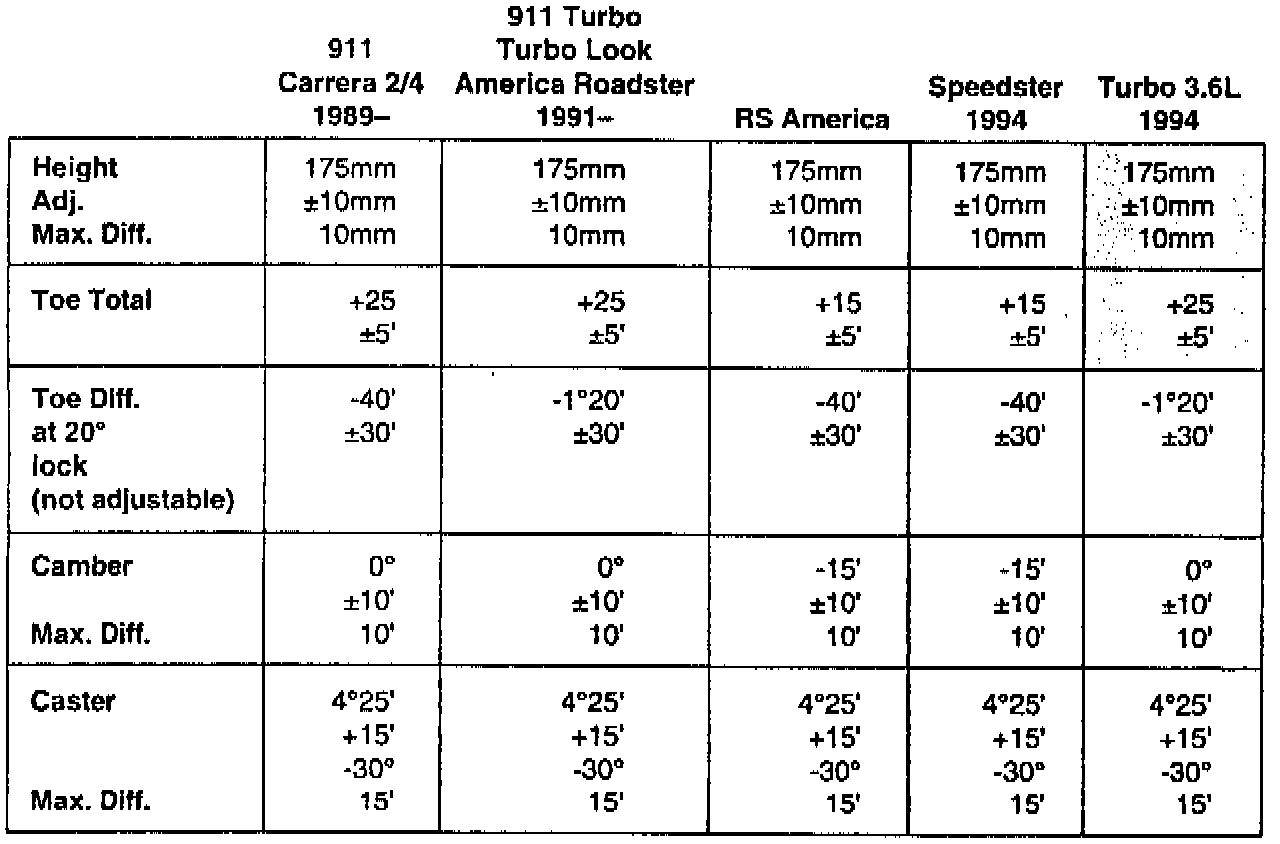

Alignment Specifications Front Axle:

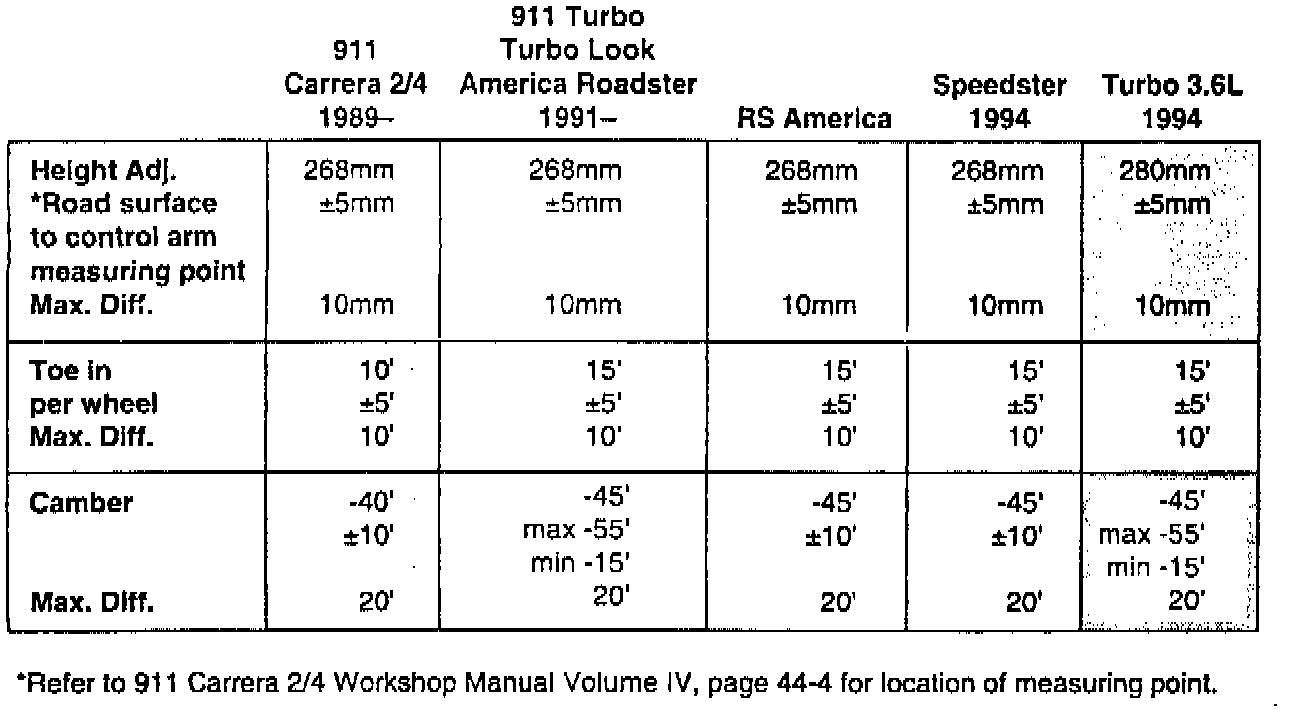

Alignment Specifications Rear Axle:
