Manual Transmission/Transaxle

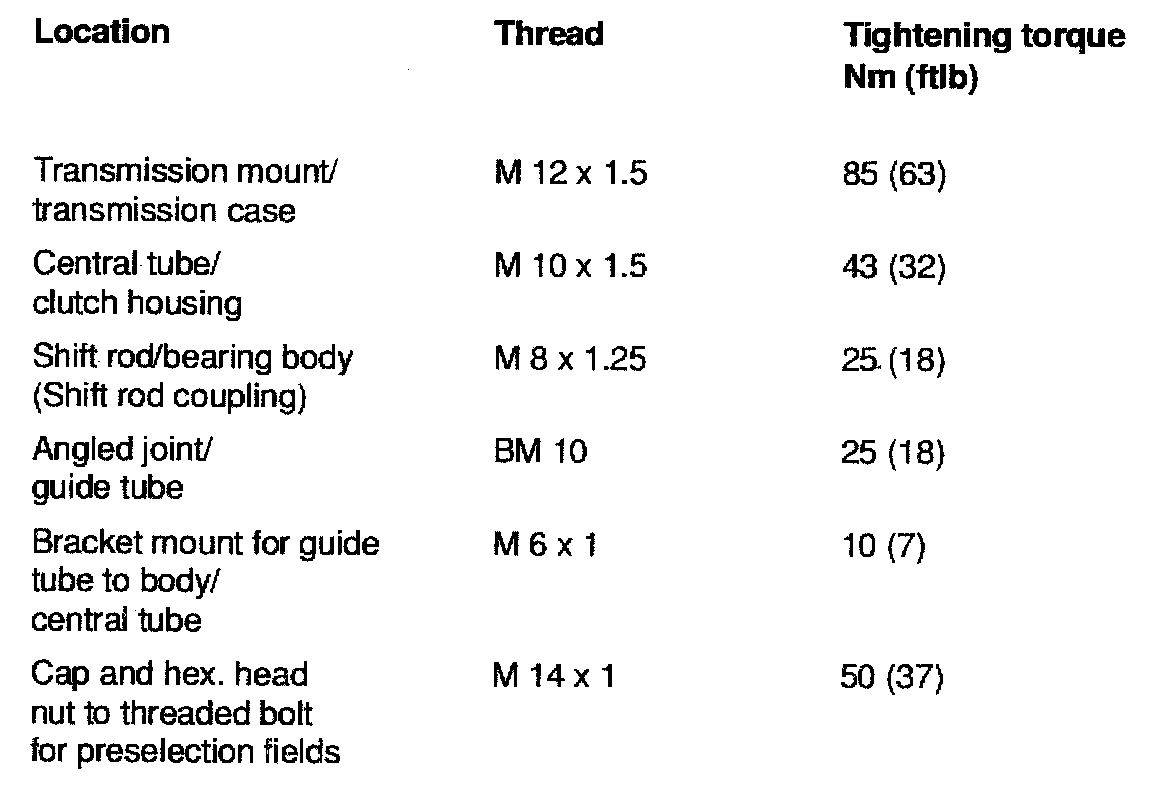

Shift Actuation & Central Tube Torque:
Component
Torque/Ft. Lbs.
Axle Shaft Flange
59
Axle Shaft Nut
31
Brake Caliper Attaching Bolts
61
Crossmember Attaching Bolts
33
Halfshaft Castle Nut
217-253
Spring Strut Self Locking Nut
33
Toe Adjusting Bolt Locknut
87
Transmission Mount To Crossmember Attaching Bolts
61
Upper Strut Retainer Attaching Nuts
42
