Control Assembly: Service and Repair

Removing and Installing Heating and Air Conditioning Control

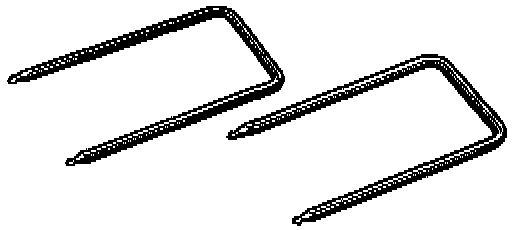

NOTE: Use Special Tool V 160 (this code also is the Part No.) to remove the heating and air conditioning control.

Supplier: Matra Werke GmbH
Dieselstrasse 30 - 40
D-60314 Frankfurt




1. Insert and engage Special Tool in cutout provided in the heating and air conditioning control.
2. Push out heating and air conditioning control manually from below towards the rear.
3. Disengage 25-pin and 35-pin connector.
