Height Adjustment and Alignment

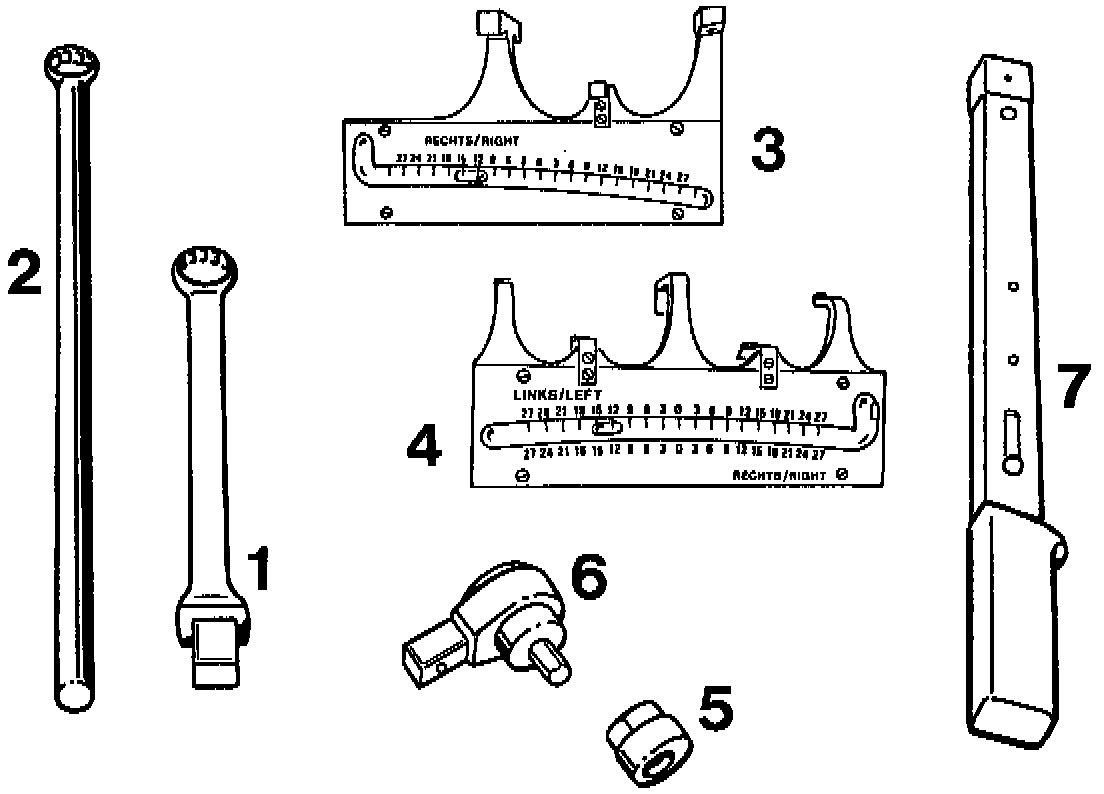

Height And Alignment Adjustment Tools (Part 1 Of 2):

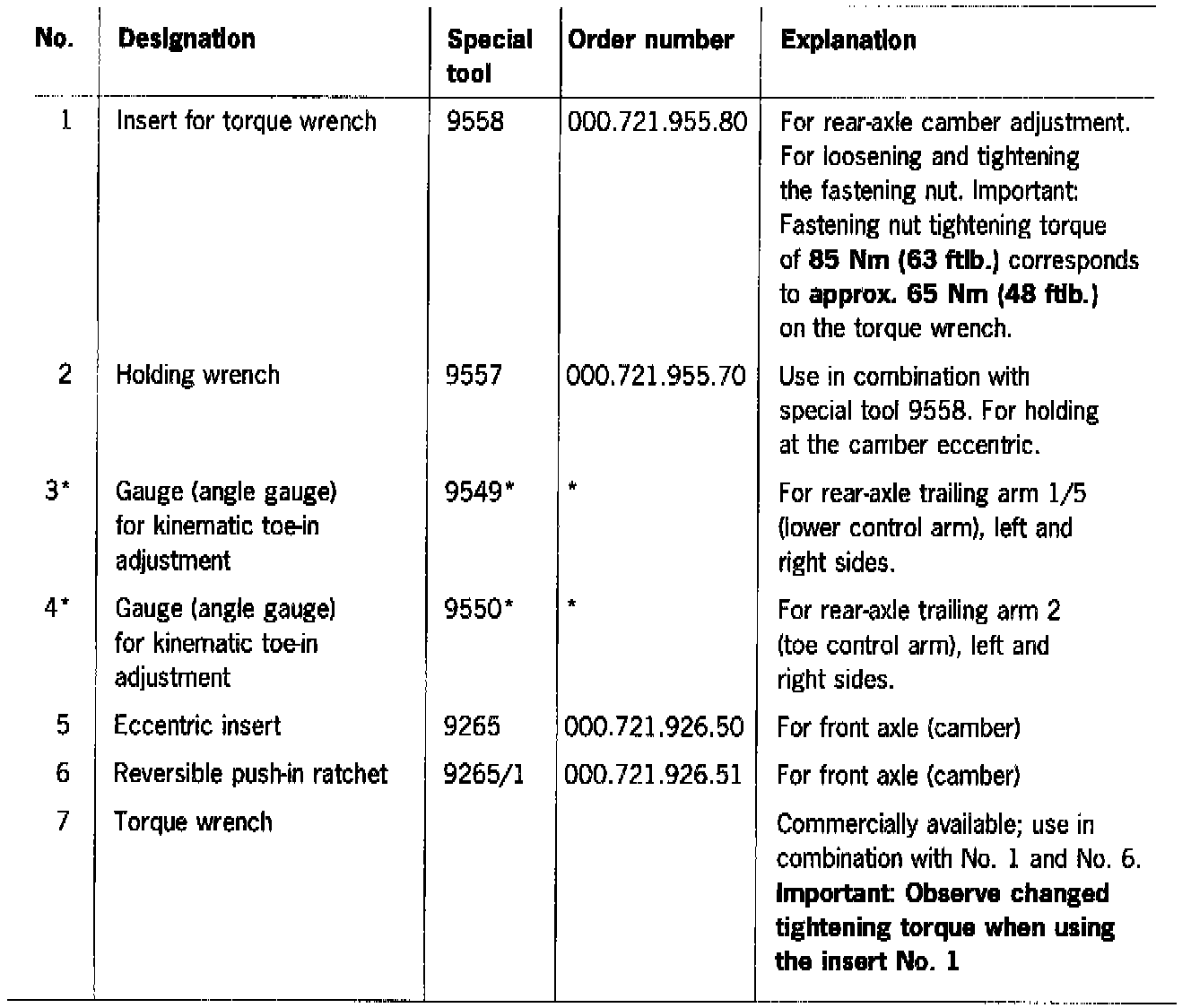

Height And Alignment Adjustment Tools (Part 2 Of 2):
Footnotes * Measuring gauge set 9565 - order no. 000.721.956.50 - consists of one special tool 9549 and one special tool 9550 each. For reasons of measuring accuracy, the gauges must be adjusted, shipped and used in pairs.
