Component Arrangement on Engine

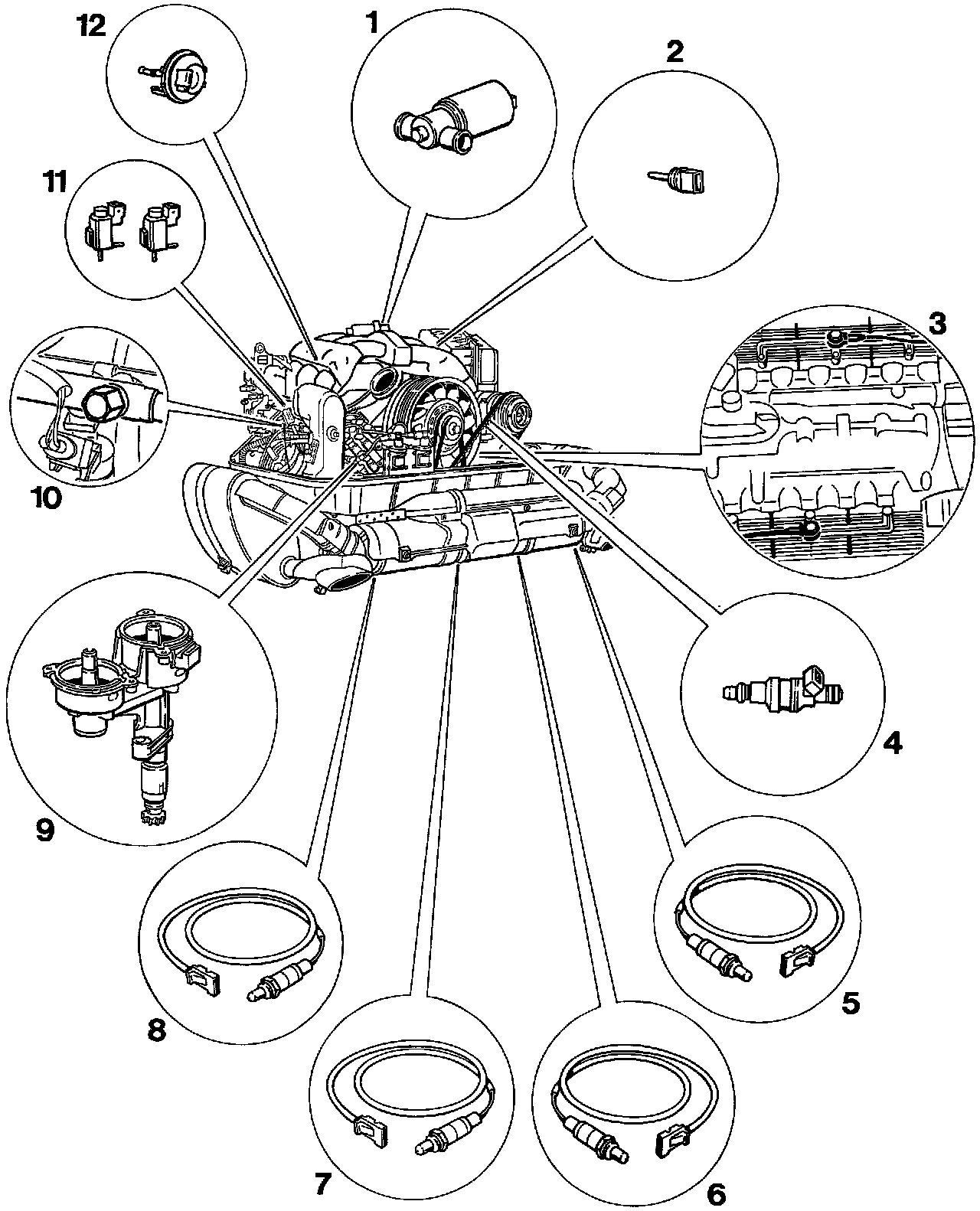

1. - Idle air control valve
2. - Intake Air Temperature Sensor
3. - Knock sensors
4. - Fuel injectors
5. - Oxygen sensor (HO2S) 2 behind Three Way Catalytic Converter (TWC)
6. - Oxygen sensor (HO2S) 2 ahead of Three Way Catalytic Converter (TWC)
7. - Oxygen sensor (HO2S) 1 behind Three Way Catalytic Converter (TWC)
8. - Oxygen sensor (HO2S) 1 ahead of Three Way Catalytic Converter (TWC
9. - Ignition distributor with camshaft position sensor
10. - Connector for fuel pressure measurement
11. - Change-over valve for resonance flap and intake manifold length tuning
12. - Vacuum capsule for resonance flap and intake manifold length tuning

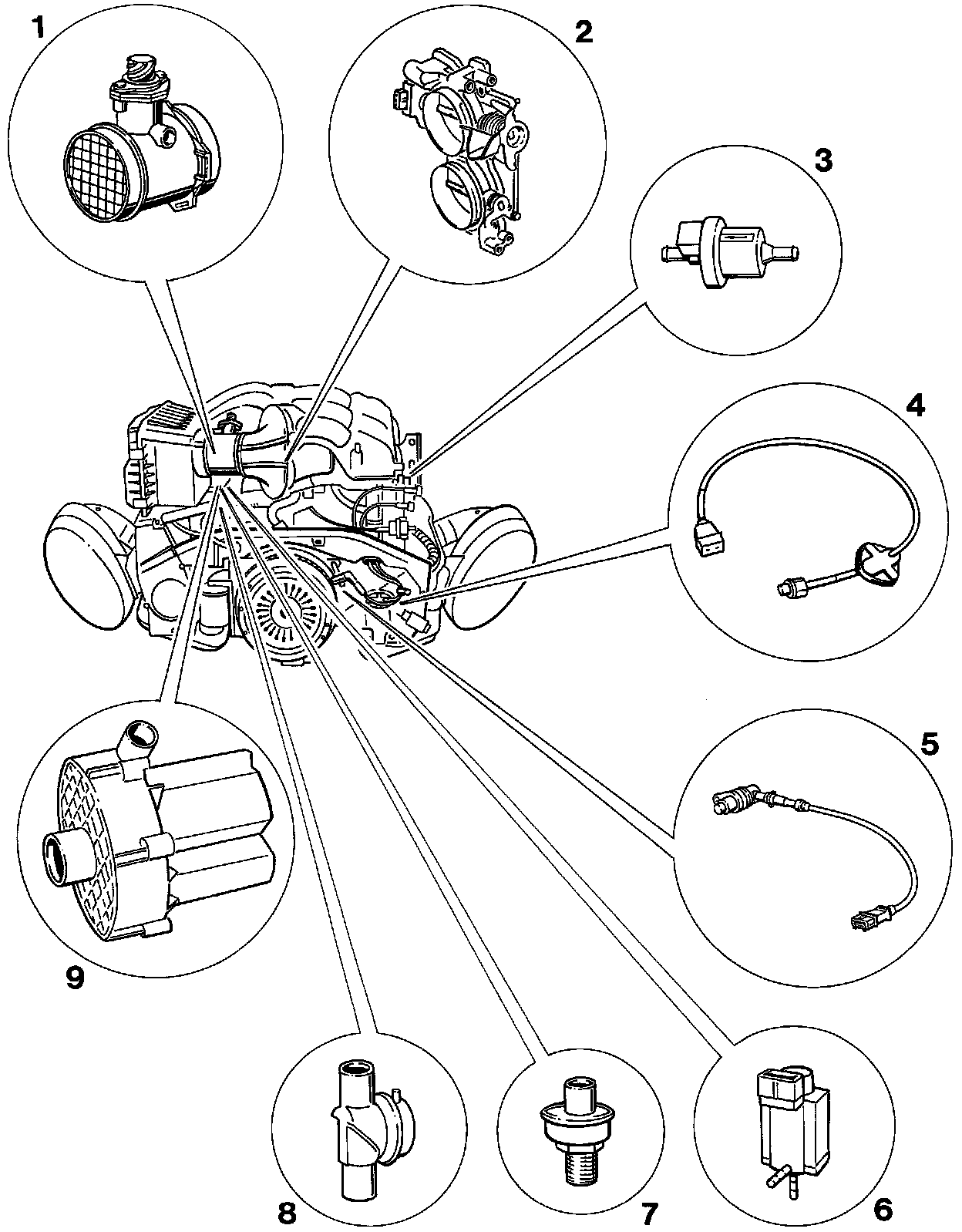

1. - Mass Air Flow Sensor
2. - Throttle body with throttle position sensor
3. - Fuel tank gravity valve
4. - Engine Temperature Sensor (NTC II)
5. - Crankshaft position sensor
6. - Electro-pneumatic Secondary Air Injection Switching Valve
7. - Check valve
8. - Pneumatic Secondary Air Injection Switching Valve
9. - Secondary Air Injection Pump
