Connector Locations



Location of Connectors in the vehicle

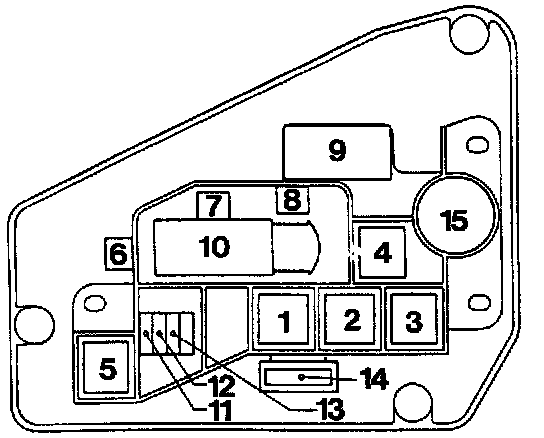

10 - Connector X 60

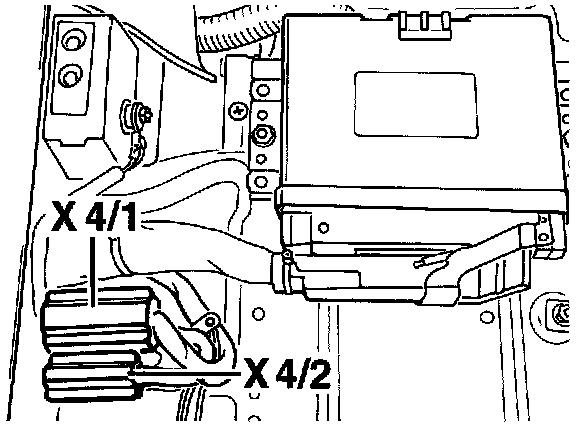

X 4/1 and X 4/2 next to the Engine Control Module (EMC)

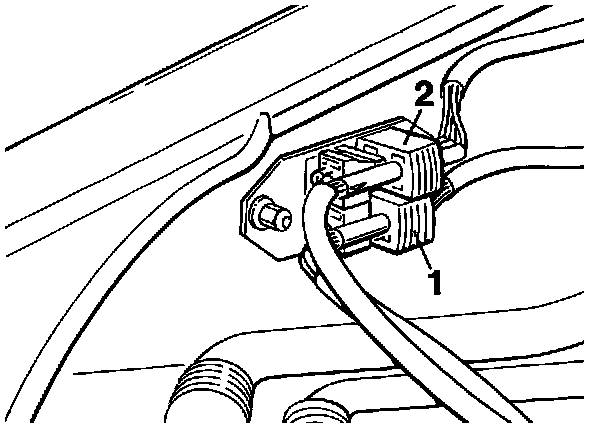

Three Way Catalytic Converter (TWC) (Bank 1, Sensor 1)
2 - Oxygen sensor 1 behind Three Way Catalytic Converter (Bank 1, Sensor 2)

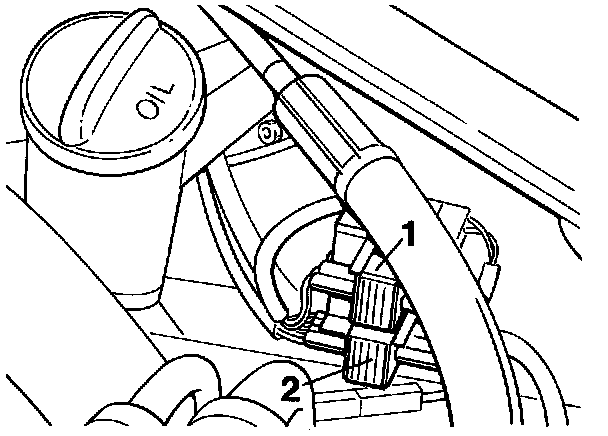

1 - Oxygen sensor 2 ahead of Three Way Catalytic Converter (TWC) (Bank 2, Sensor 1)
2 - Oxygen sensor 2 behind Three Way Catalytic Converter (Bank 2, Sensor 2)

NOTE: The oxygen sensors receive their reference air through the connectors and connecting leads. For this reason, no contact spray, grease or similar must be allowed to enter the connectors.

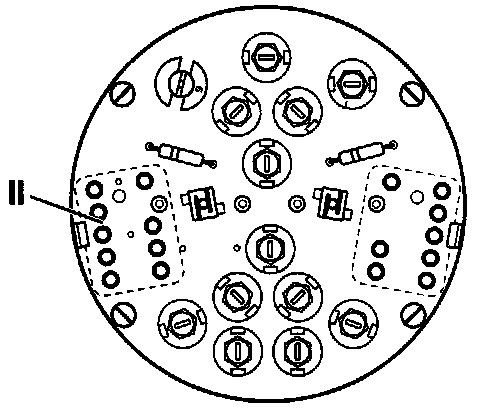

Instrument cluster connector II

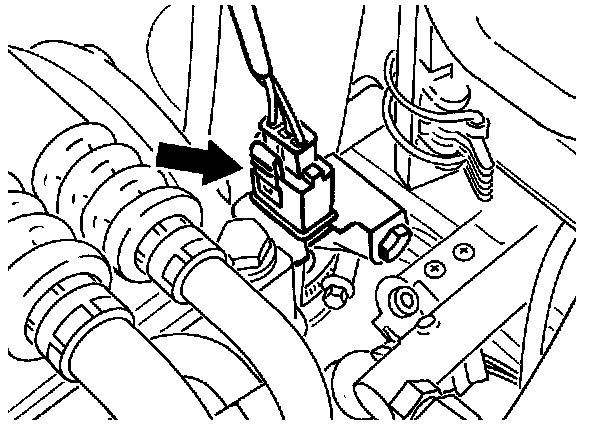

Connector for knock sensor 1

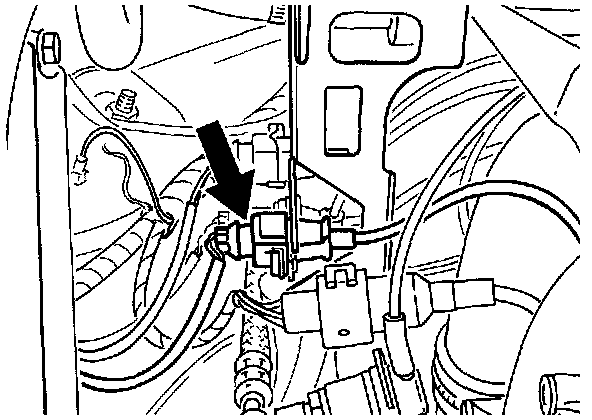

Connector for knock sensor 2




Data link connector
