Valve Spring

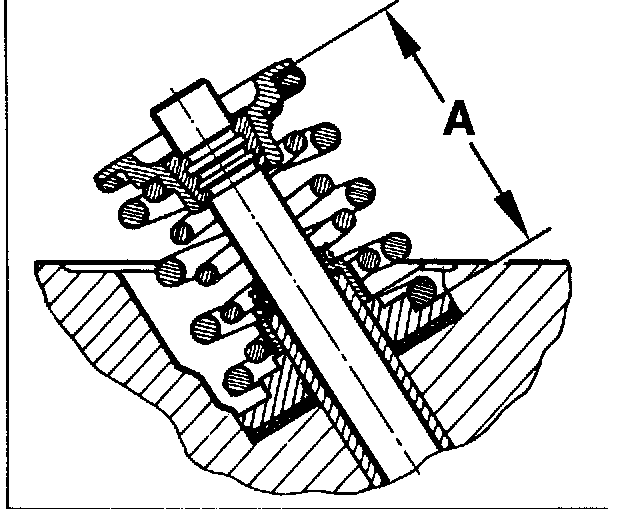

Installed Height Specifications Engine M64 / 05 / 06 / 07 / 08
Inlet Valve Dimension "A":
36.7 + 0.3 mm Exhaust Valve Dimension "A":
35.7 + 0.3 mm Engine M64 / 20 (RS)
Inlet Valve Dimension "A":
37.2 + 0.3 mm Exhaust valve Dimension "A":
35.8 + 0.3 mm
