Valve, Intake/Exhaust
Measuring The ValvesNOTE: -
911 Carrera RS values in brackets
-
The Intake valves of the 911 Carrera (993) and the 911 Carrera RS are sodium-filled
-
The exhaust valves of the 911 Carrera RS are sodium-filled

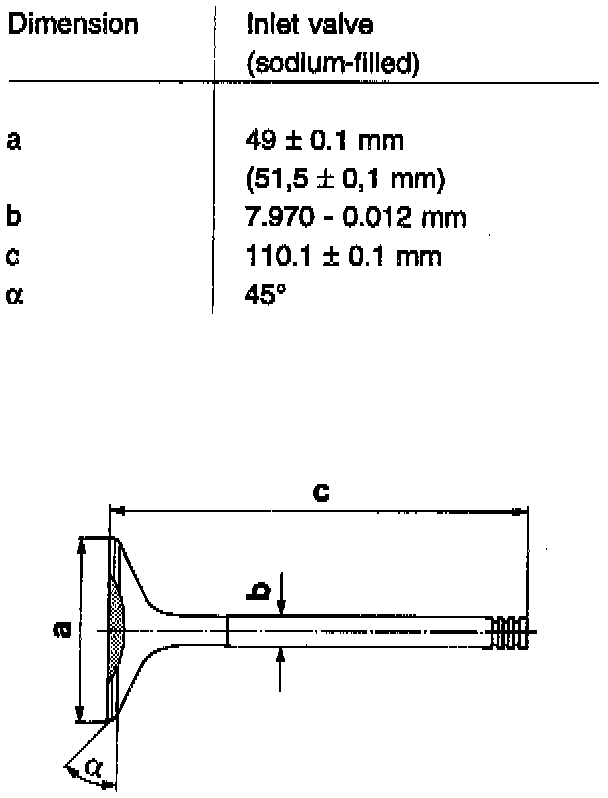

Inlet Valve Dimensions:

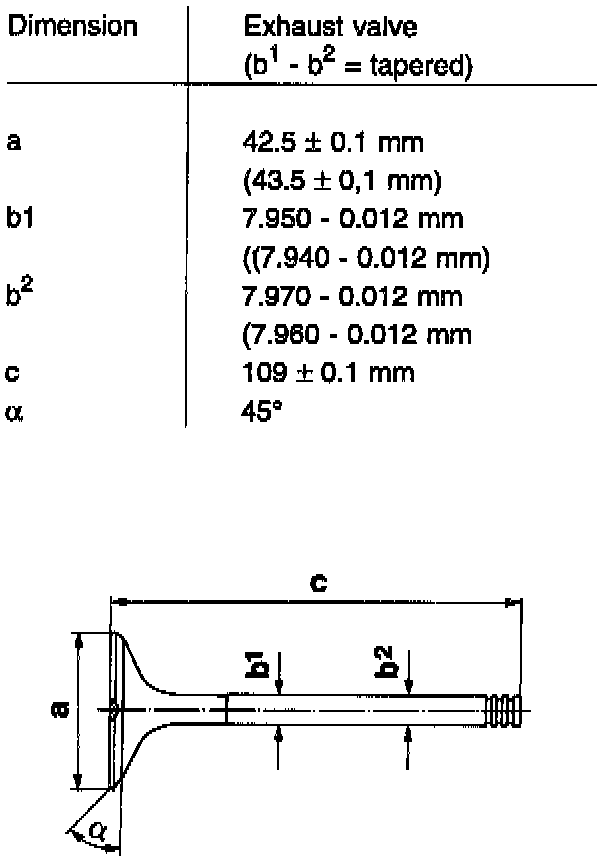

Exhaust Valve Dimensions:
