Ignition Lock Cable: Service and Repair

Removal
1. Disconnect battery.
2. Remove complete center console, knee guard and side nozzle.
3. Undo Central Information System and leave it suspended on the wiring.
4. Turn ignition lock to position "2" (Ignition on).





NOTE:
- The ignition lock must be in position ,2".
- If it is left in any other position, both the lock and the bowden cable may be damaged.

5. Unbolt bowden cable from ignition lock.

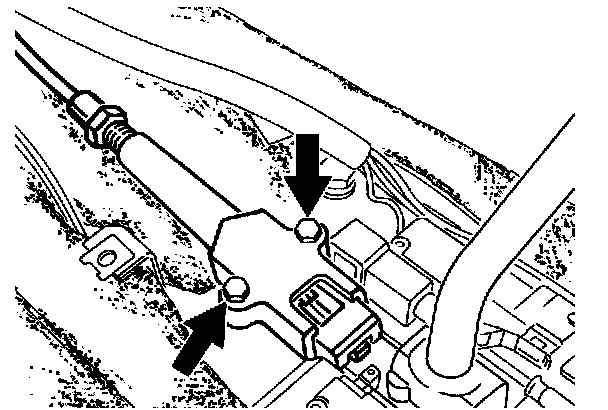

6. Undo mounting screws of cable shift lock body.
7. Disengage bowden cable from pedal floorboard and from bracket for center console.

Installation
1. Assemble in reverse order, observing the following points.
2. Turn ignition lock to position "2" (Ignition on) and fit bowden cable to ignition lock.
- Tightening torque: 2.5 Nm (2 ft lb)
3. Fit bowden cable shift lock body using sleeves and hexagon head bolts.
- Tightening torque: 2.5 Nm (2 ft lb)
4. Set selector [ever to position "P" and turn ignition lock to position "0".

NOTE: If the ignition lock cannot be turned to the 0 position, the bowden cable must be readjusted.

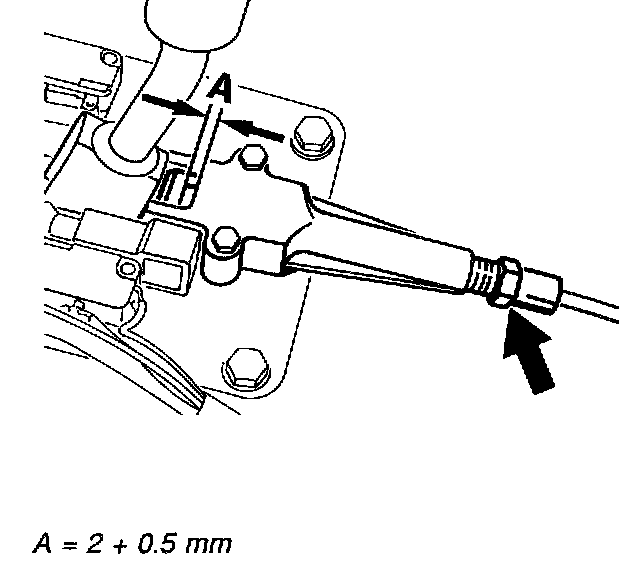

5. Adjust bowden cable, turning the cable sleeve on the valve body until the lock slide reaches a setting of 2 + 0.5 mm (refer to illustration).
6. Check operation of keylock and shiftlock.
