Maintenance: Locations

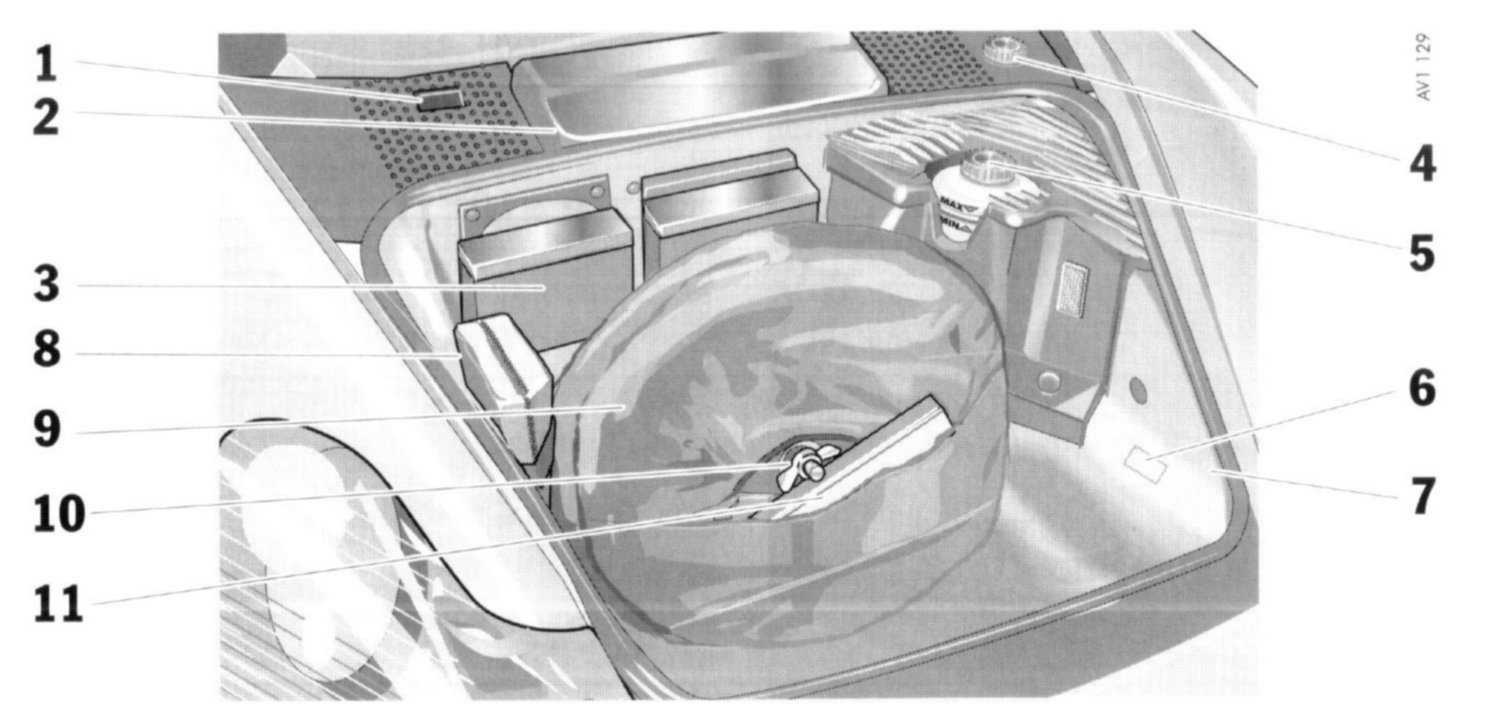

Luggage Compartment:
1 Vehicle identification number
2 Battery
3 Compact disc changer
4 Fluid reservoir for cleaning windows and headlights
5 Brake4luid reservoir
6 Paint data
7 Headlight adjustment and locking

911 Carrera:






8 Space for first aid kit
9 Tool kit and jack are located behind the spare wheel (spare wheel must be removed)
10 Spare-wheel fastening (wing nut)
11 Space for warning triangle

911 Carrera 4:

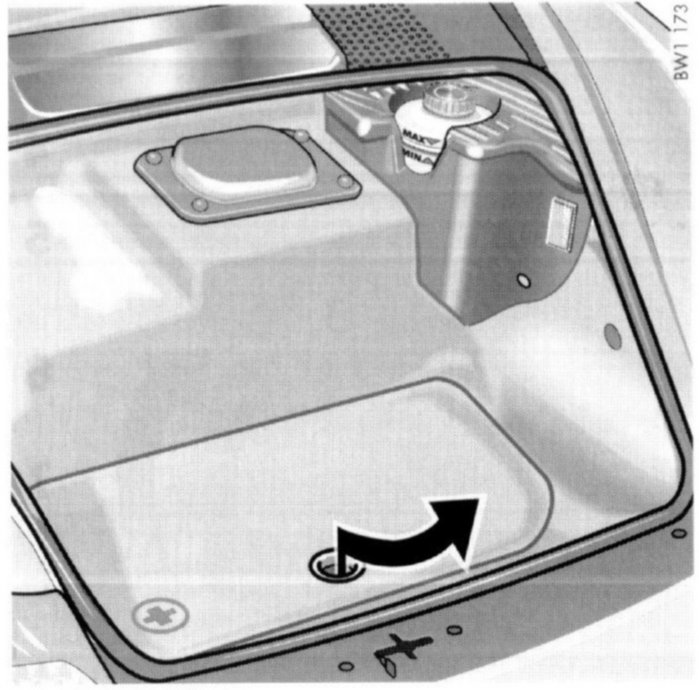

Removing luggage compartment floor:

- Simultaneously pull the luggage compartment floor forward and up at the finger hole.

Inserting luggage compartment floor:

- Insert luggage compartment floor in the rear guide and press it down.

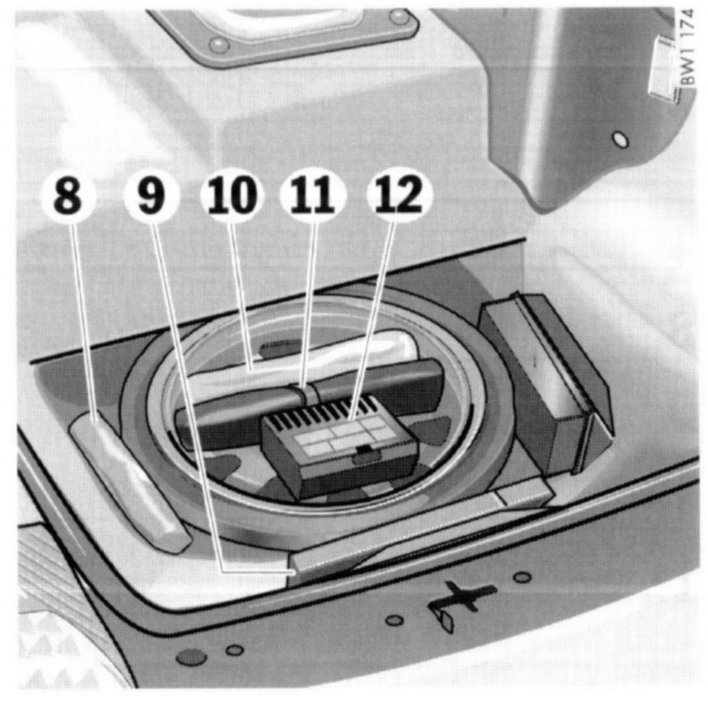

911 Carrera 4:
8 Space for first aid kit
9 Space for warning triangle
10 Jack
11 Tool kit
12 Compressor for collapsible spare wheel
