Cellular Phone: Adjustments

Setting Hands-Free Microphone to the Telephone Type

NOTE: There is an adjustment possibility on the hands-free microphone for adopting it to the telephone system installed in the vehicle. The following positions must be set for the Nokia 2110 or Motorola:


Setting

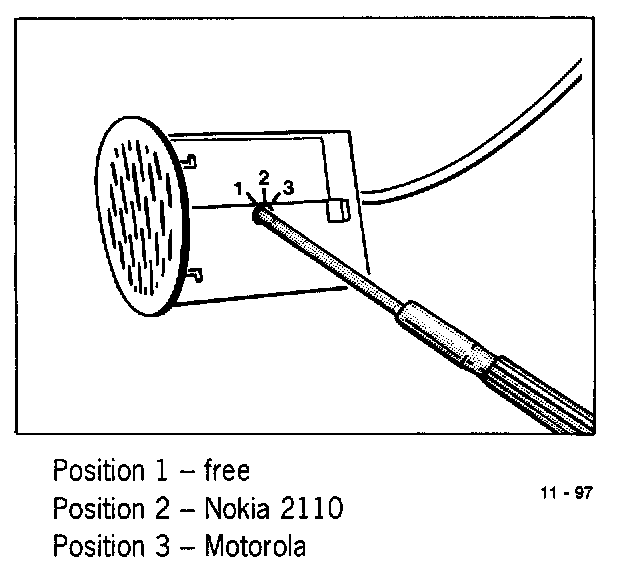

1. Carefully unclip handsfree microphone from the dashboard insert and pull out.






2. Use a small screwdriver to set the position of the installed telephone system (e.g. Nokia 2110 pos. 2). The setting as delivered in new cars is position 3.
3. Carefully clip the handsfree microphone into the dashboard insert again.
