Seat Adjustment Motor, Removing/Installing

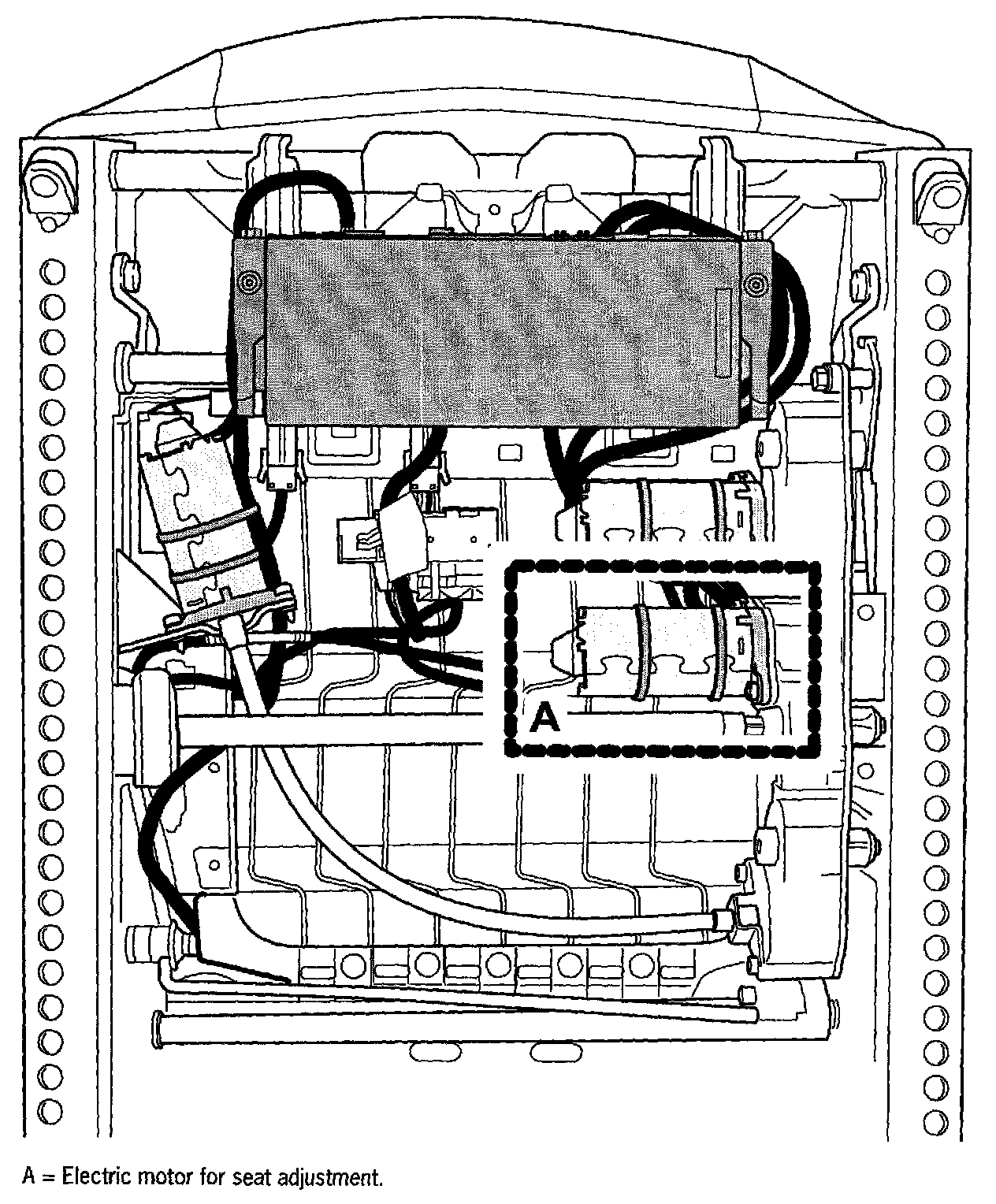

Removing and Installing Electric Motor For the Seat Adjustment
No. 1 - 6:

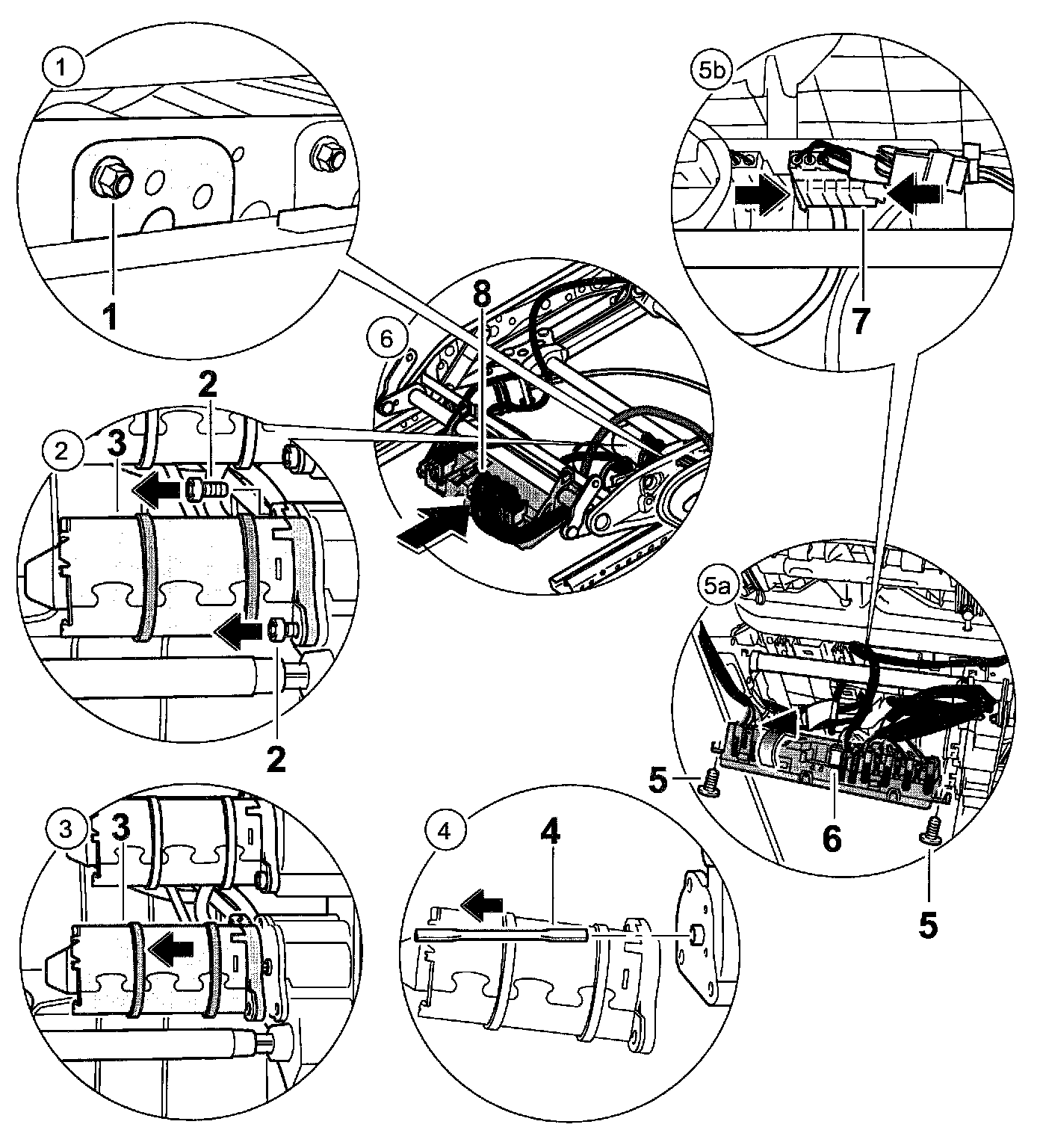

Removing Electric Motor For the Seat Adjustment
No. 1 - 6b:

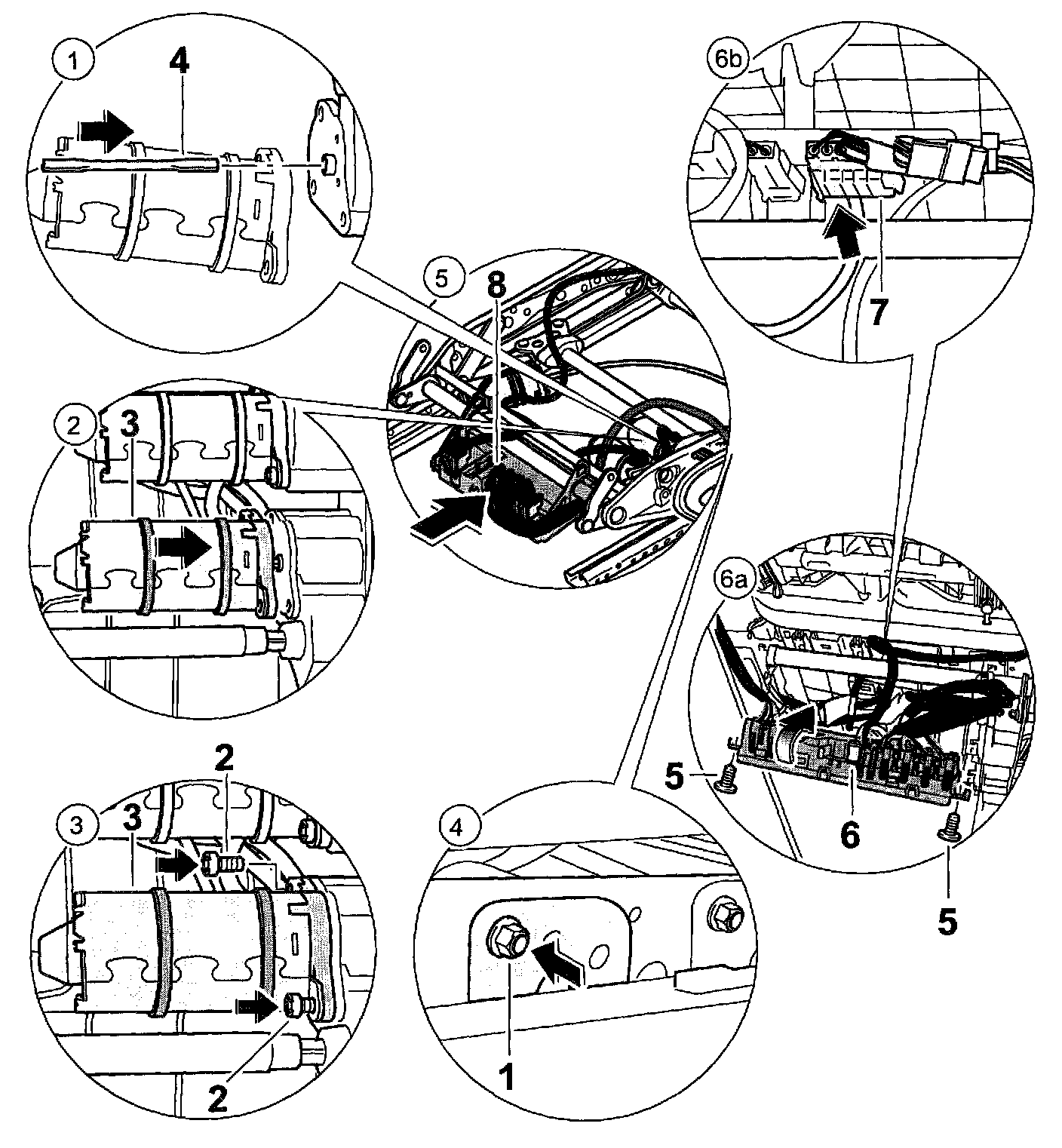

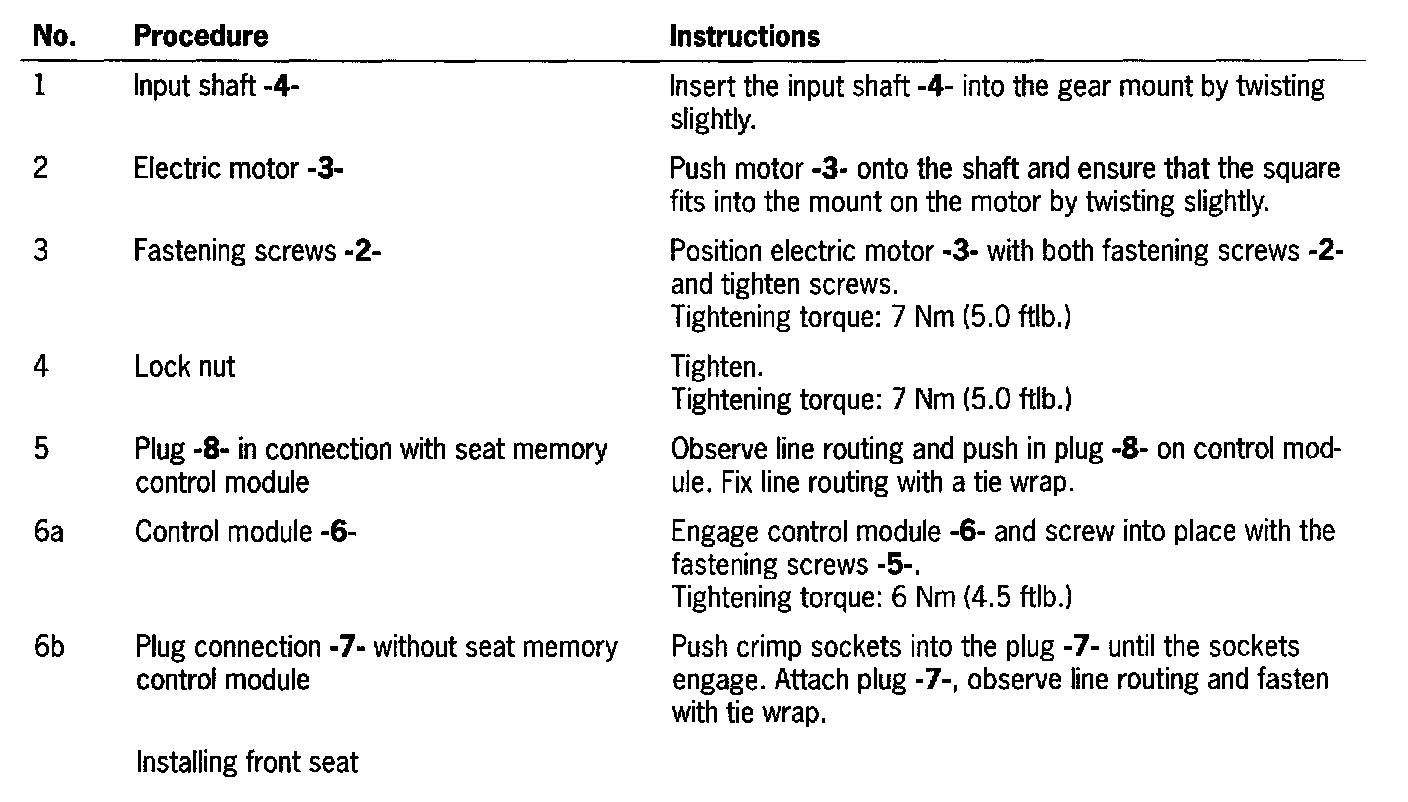

Installing Electric Motor For the Seat Adjustment
Tools

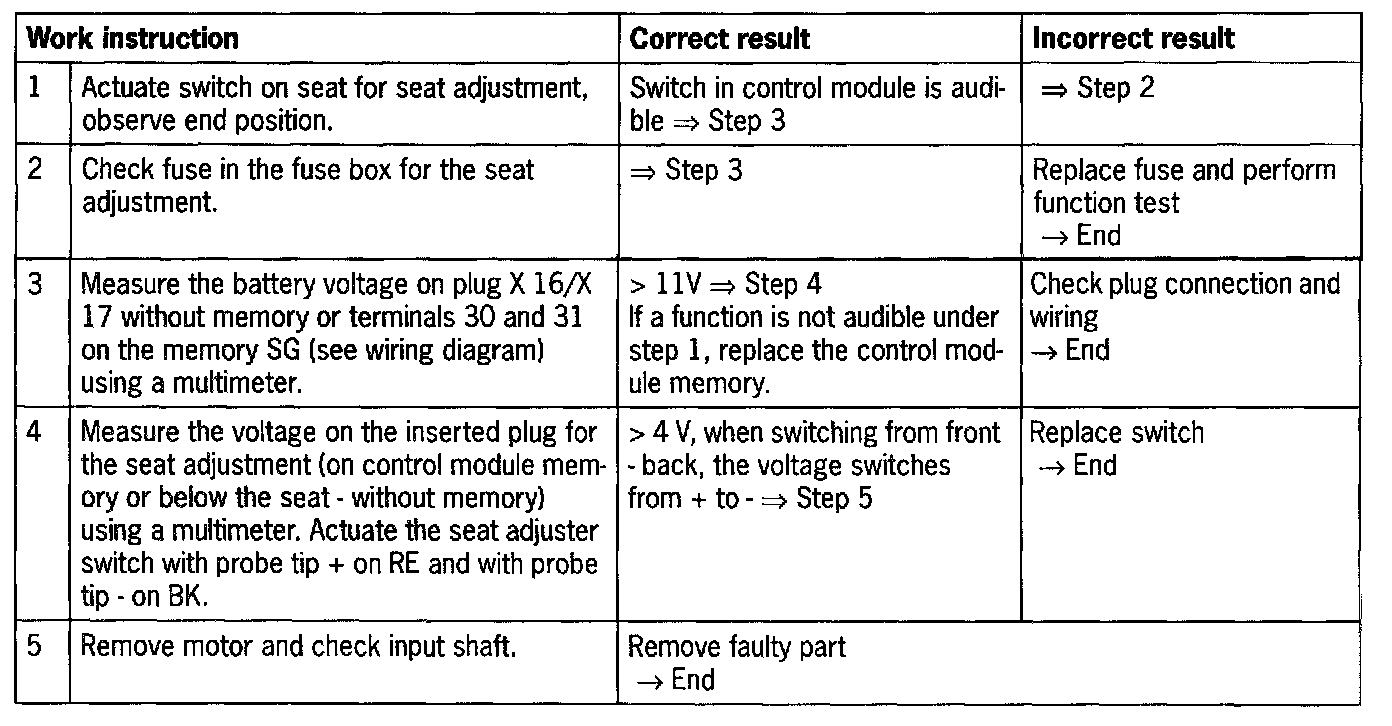

Work Instruction 1 - 5:
Test Plan For the Seat Adjustment
In the case of complaint "seat adjustment does not function", proceed according to test plan. As the seat functions vary, the test plan principally complies with the seat version with seat memory adjustment. Work aids: Use wiring diagram and multimeter.
