License Plate Bulb: Service and Repair

Removing and installing bulb for number plate light

Removal

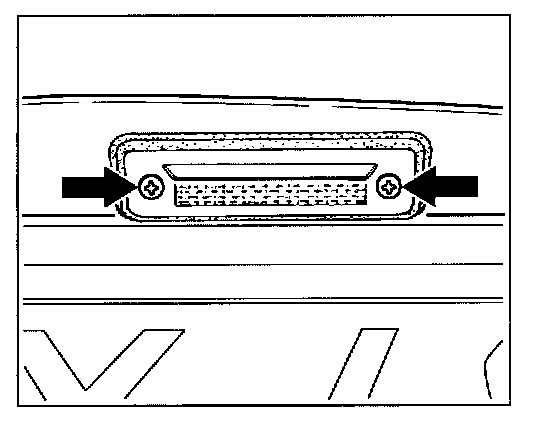

1. Loosen both fastening screws and remove the number plate light.
2. Push back the rubber cover and remove defective bulb from between the contact springs.

Installation
1. Insert new bulb in the holes of the contact springs.
2. Push the rubber cover (protects against water leaking in) carefully over the number plate light and fasten.
3. Perform a function test.
