Removing and Installing the Differential

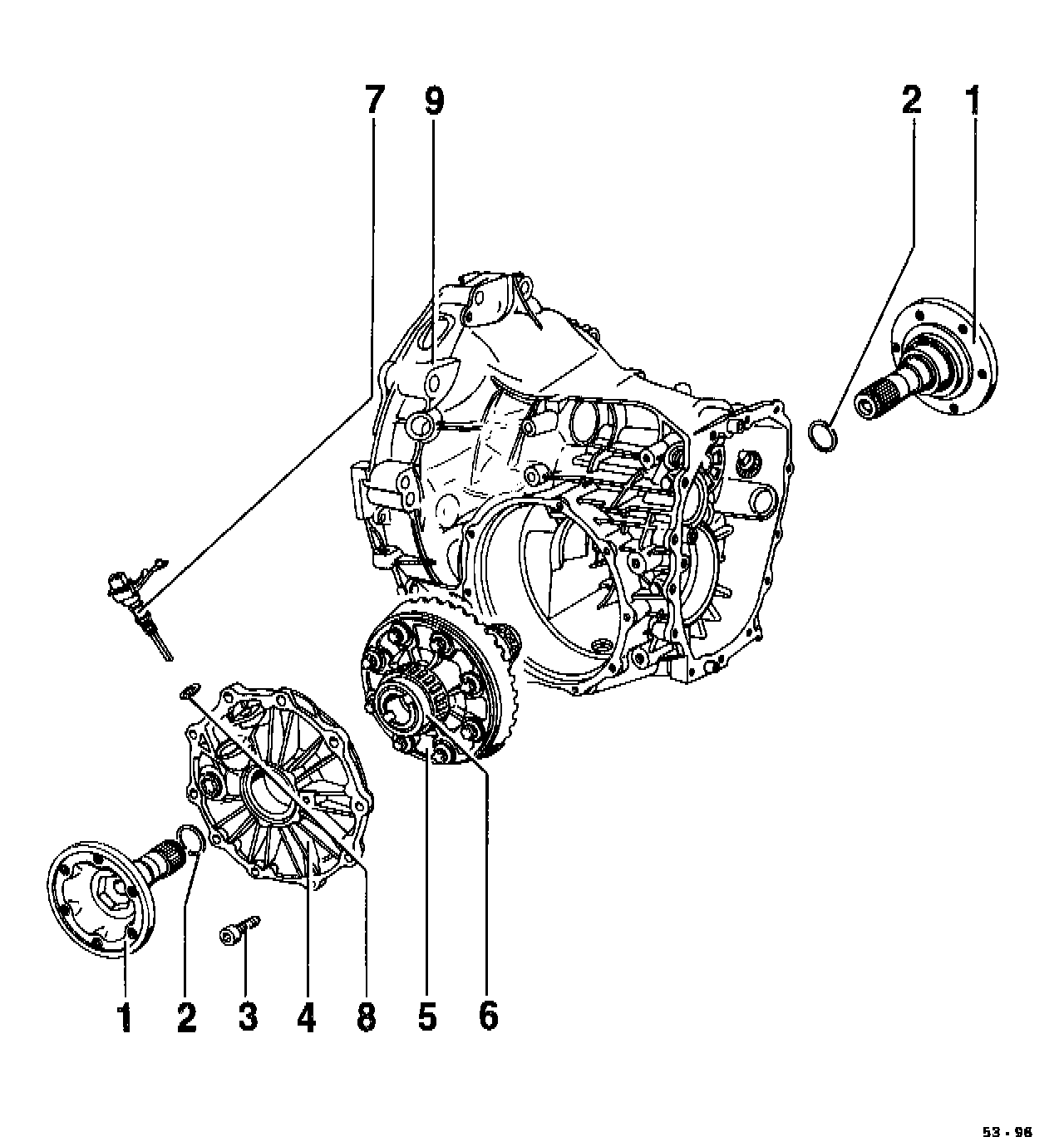

Removing and installing the differential (transmission G 86)








Removing and installing the differential (transmission G 86)

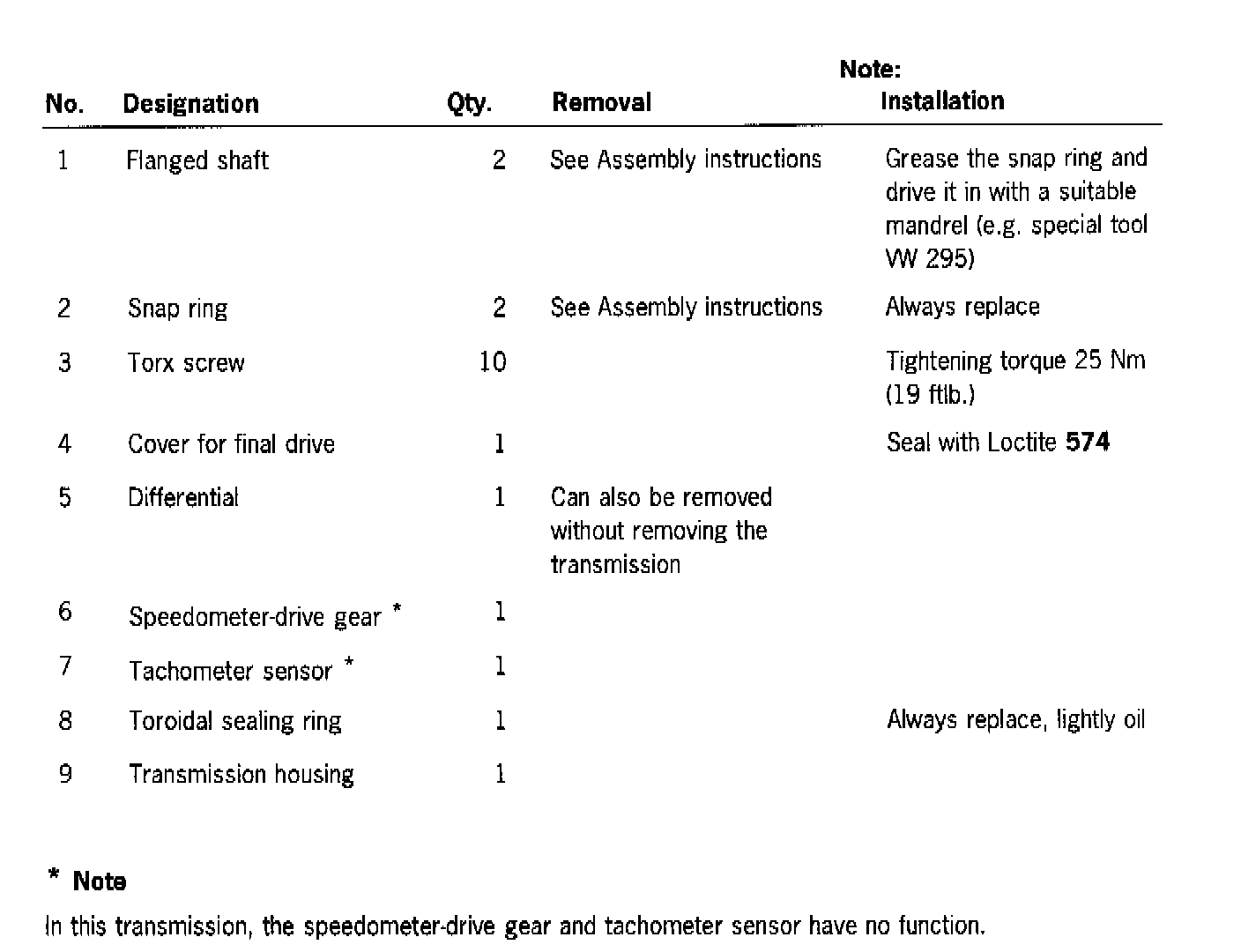

Instructions for removal and installation (transmission G 86)

Removal





1. Remove the flanged shaft. To do this, place a chisel or spacer "A" under the flanged shaft and pull out the flanged shaft by turning the screw "B".

Installation

Note The flanged shafts are installed with polygonal bearings. The rough running of these bearings when the flanged shafts are not installed does not indicate that the bearings are faulty. The polygonal bearings can be replaced only with the flanged shaft.





1. Always replace the snap ring for the halfshaft flange. To do this, clamp the flange with protective jaws and press out the snap ring with the new snap ring "A".
2. Grease the snap ring thoroughly and drive in the halfshaft flange.
