Headlamp Washer Reservoir: Service and Repair



Washer Fluid:

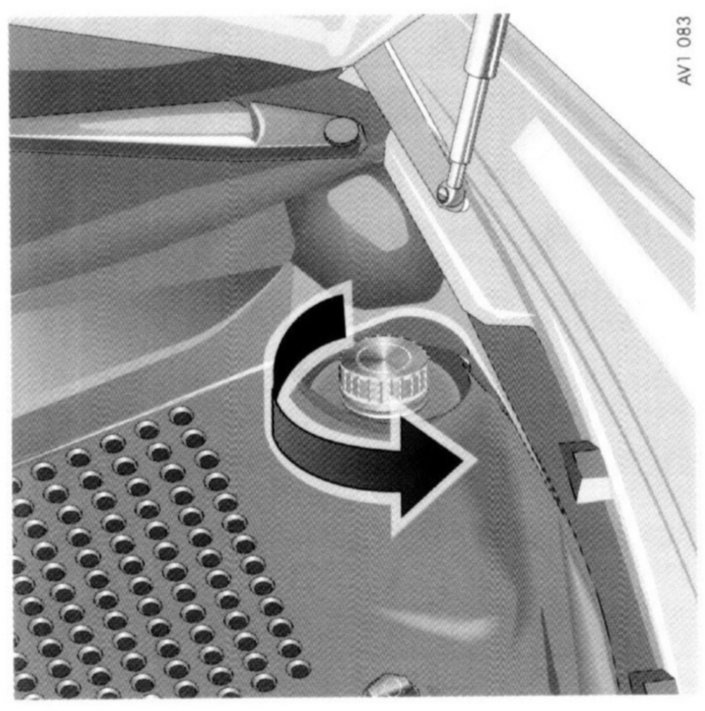

The reservoir, with a screw cap, is in the front luggage compartment, to the rear left.

Capacity:
- Without headlight cleaning system approx. 2.5 liters
- With headlight cleaning system approx. 7 liters

Clean water is generally not enough to clean the windshield and headlights.

It is advantageous to add a winter cleaner giving antifreeze protection or a suitable summer cleaner, depending on the season. Follow the instructions for the mixing ratio.

NOTE: Do not use engine coolant antifreeze or any other solution that can damage the car's paint, in the washer reservoir.

Please note all the information on the container of the cleaning agent.




Lights when approximately 0.5 liter is left in the reservoir.
