Removing the Cigarette Lighter




Removing The Cigarette Lighter:

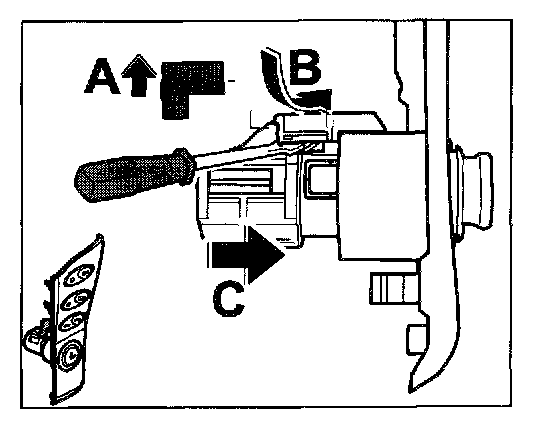

1 - Disengage the cover -arrow A- upwards.
2 - Press the lights bracket -arrow B- out to the side with a narrow screwdriver.
3 - Disengage the cigarette lighter in the direction of -arrow C- out of the front cover.
