Checking Function of Heating For Mirror Glass

Checking Function Of Heating For Mirror Glass

NOTE:
- The function of the heating for the mirror glass can be checked with a temperature probe with digital display.
- The indicator light in the rocker switch also lights up if a fault is present and the heating wires in the mirror glass do not warm up!

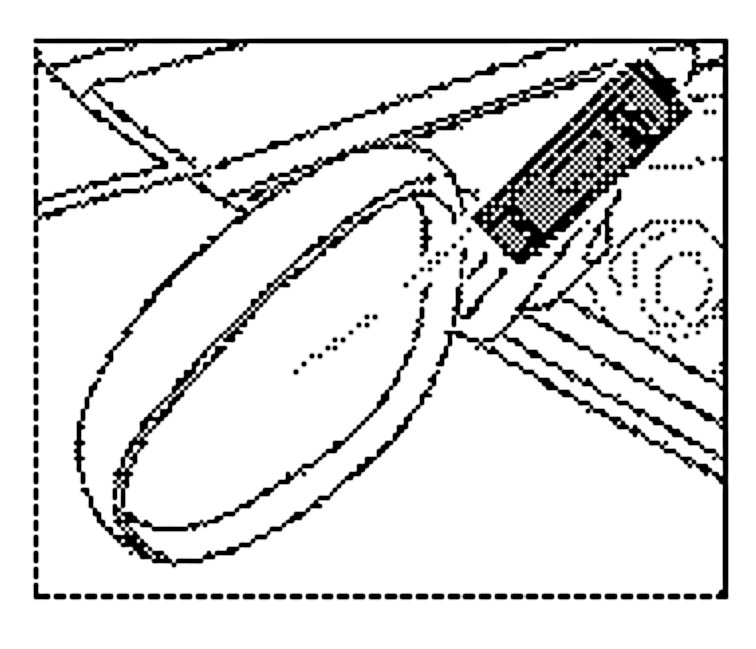

Check with the temperature probe

- The tip of the sensor is used to measure from the outside on the centre of the mirror glass.






NOTE:
- After switching on at room temperature and a period of 1 minute, the temperature must increase by approx. 2 degrees!
- If no temperature increase is shown, the fault must be detected on the basis of the wiring diagram!
