Connector Assignment

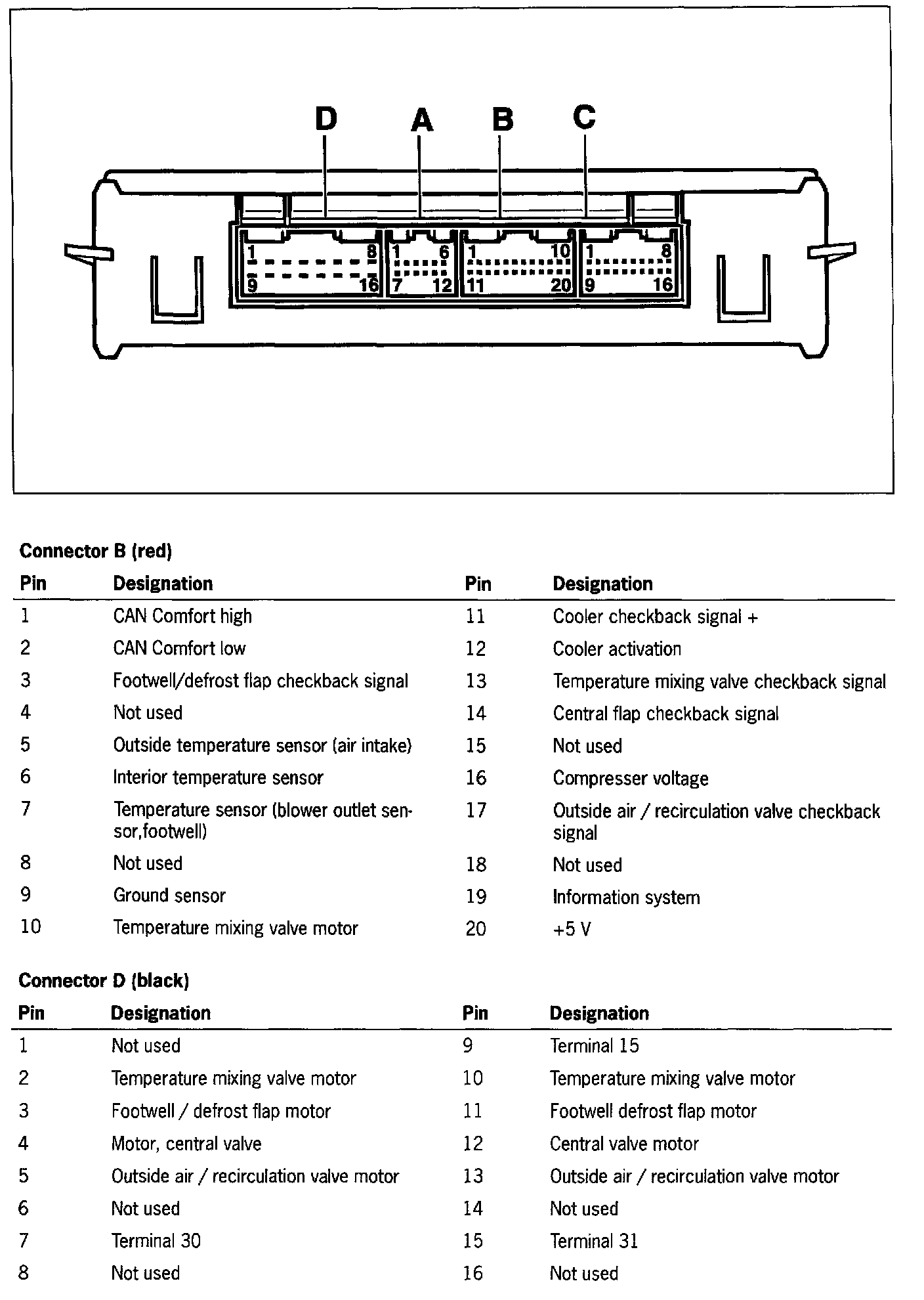

Connector Assignment for Air-conditioning Control Module The two plugs, A and C, are replaced by networking (used by CAN Comfort Bus). The signals required for function or control are exchanged via the CAN Bus lines CAN Comfort high and CAN Comfort low.
