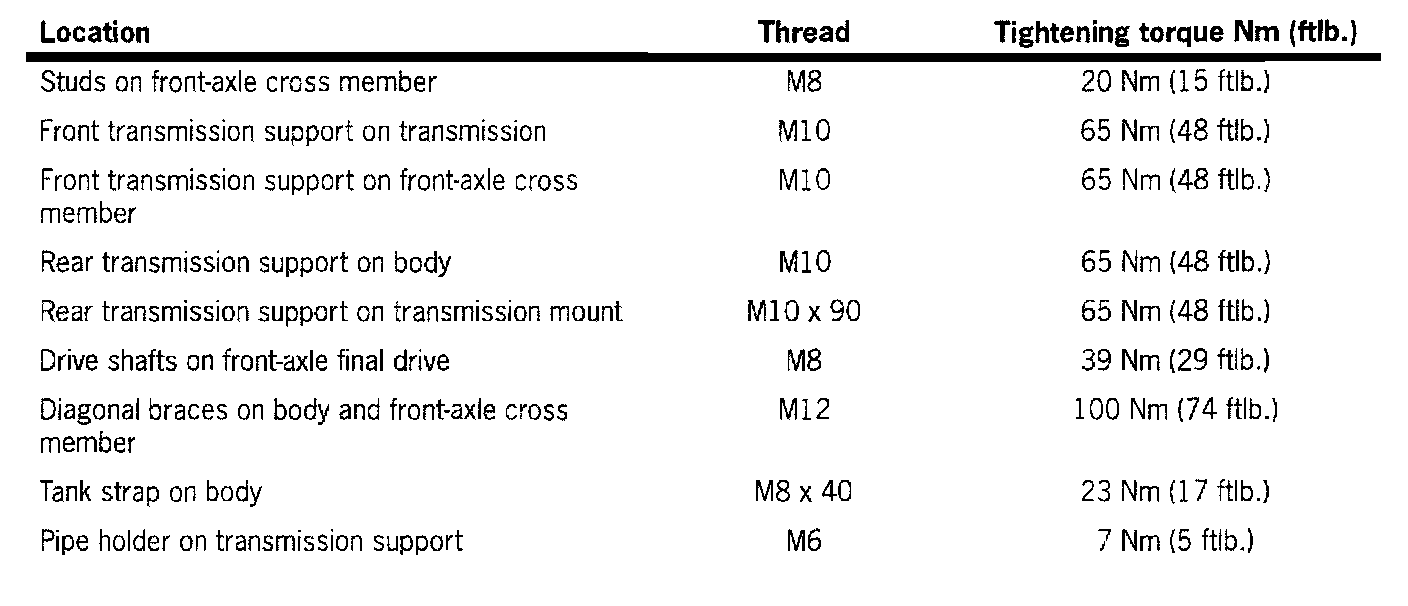

Tightening Torques





5-Speed Tiptronic Transmission A96.50-150





Tiptronic Transmission A96.50-150


Related torques

A 96.50-150 Tiptronic Final Drive Torque:





A 96.50-150 Tiptronic Related Torque:





A 96.50-150 5-spd Tiptronic Related Torque:





Tiptronic Related Tightening Torque:





Tiptronic Related Tightening Torque:





Tiptronic Related Tightening Torque:





Tiptronic Related Tightening Torque:
