Front Fender: Service and Repair

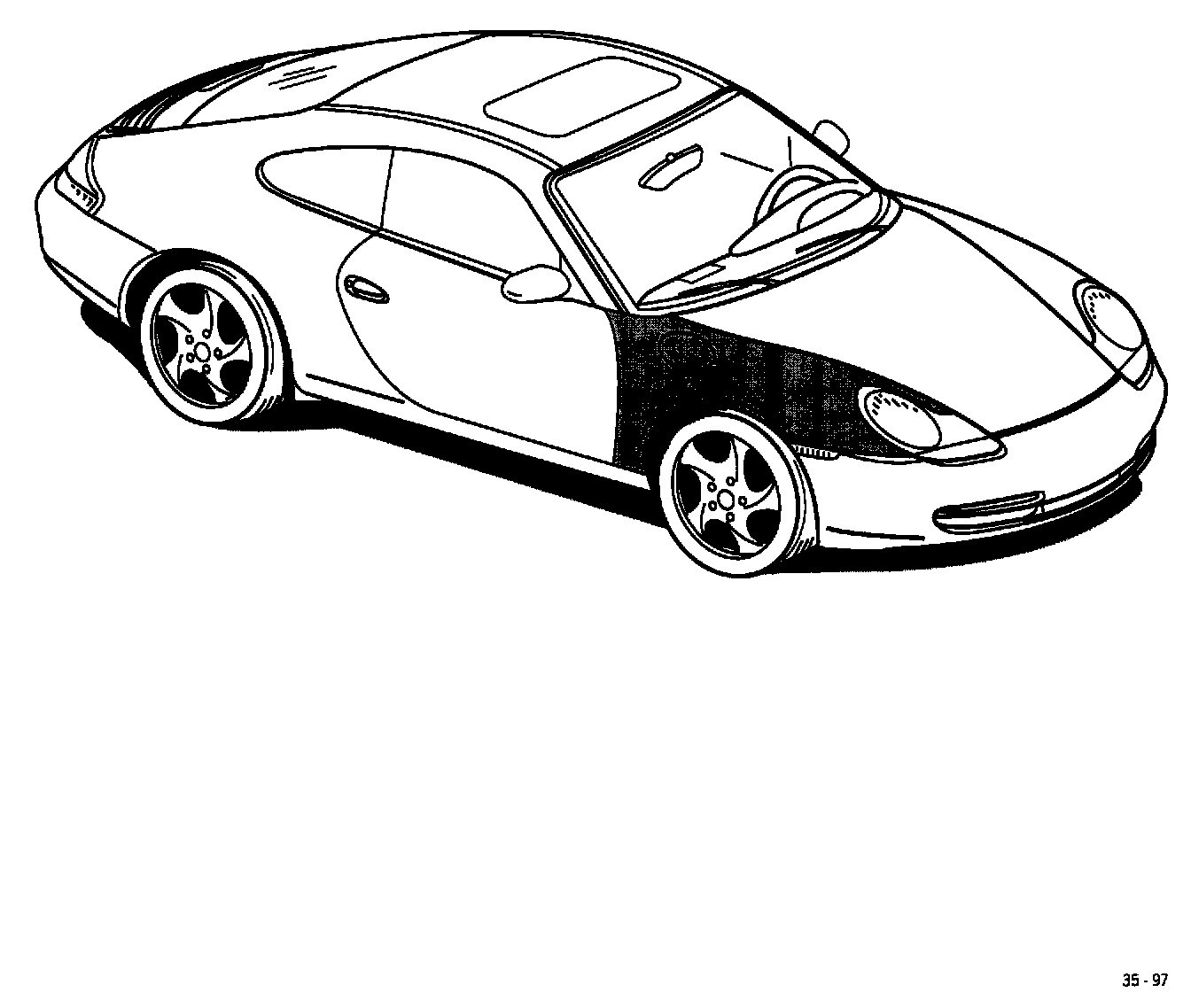

Overview:

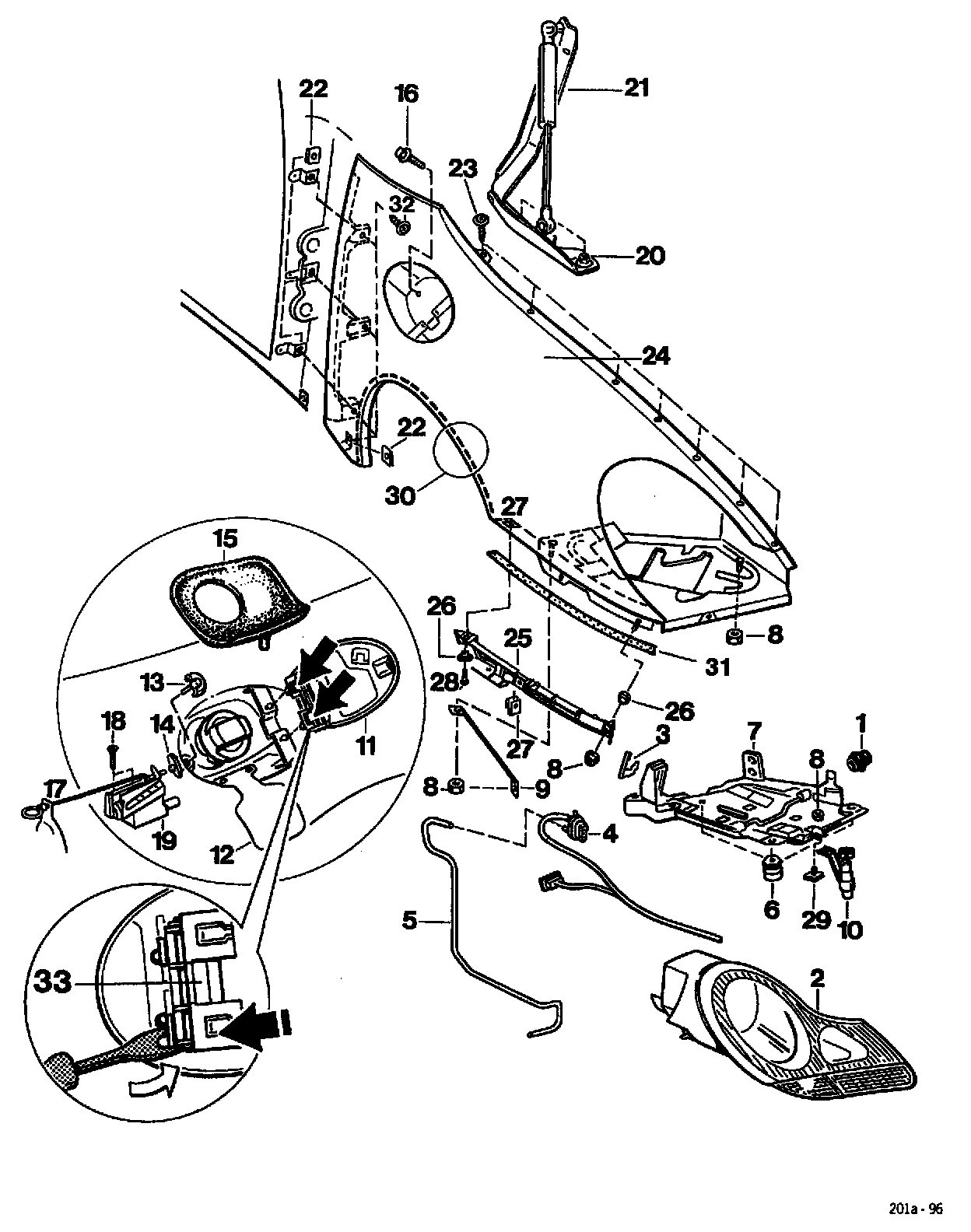

Exploded View:






Before removing the wing, it is necessary to remove the wheel, the wheel housing liner and the carbon canister.

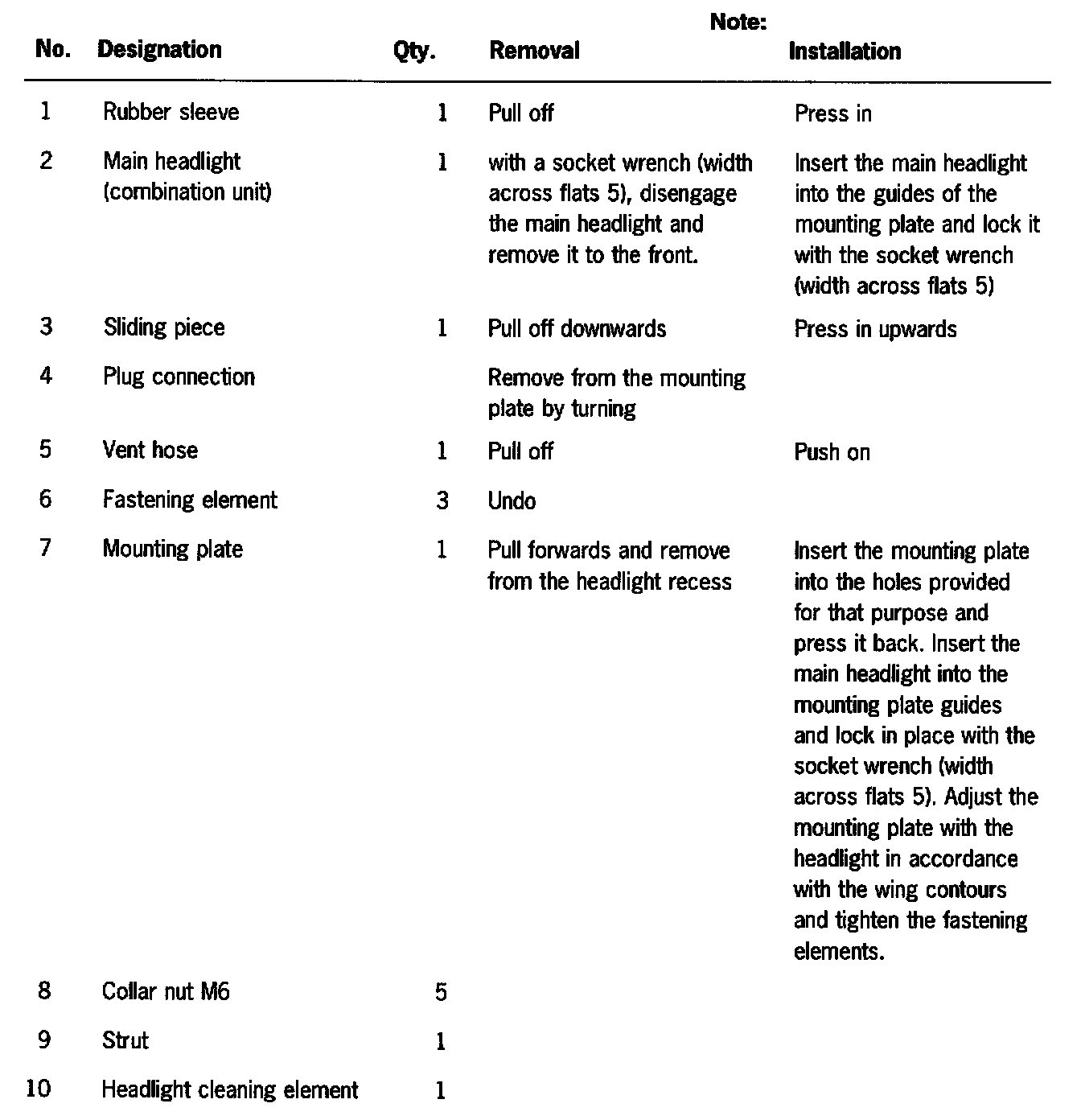

Steps No. 1 - 10:

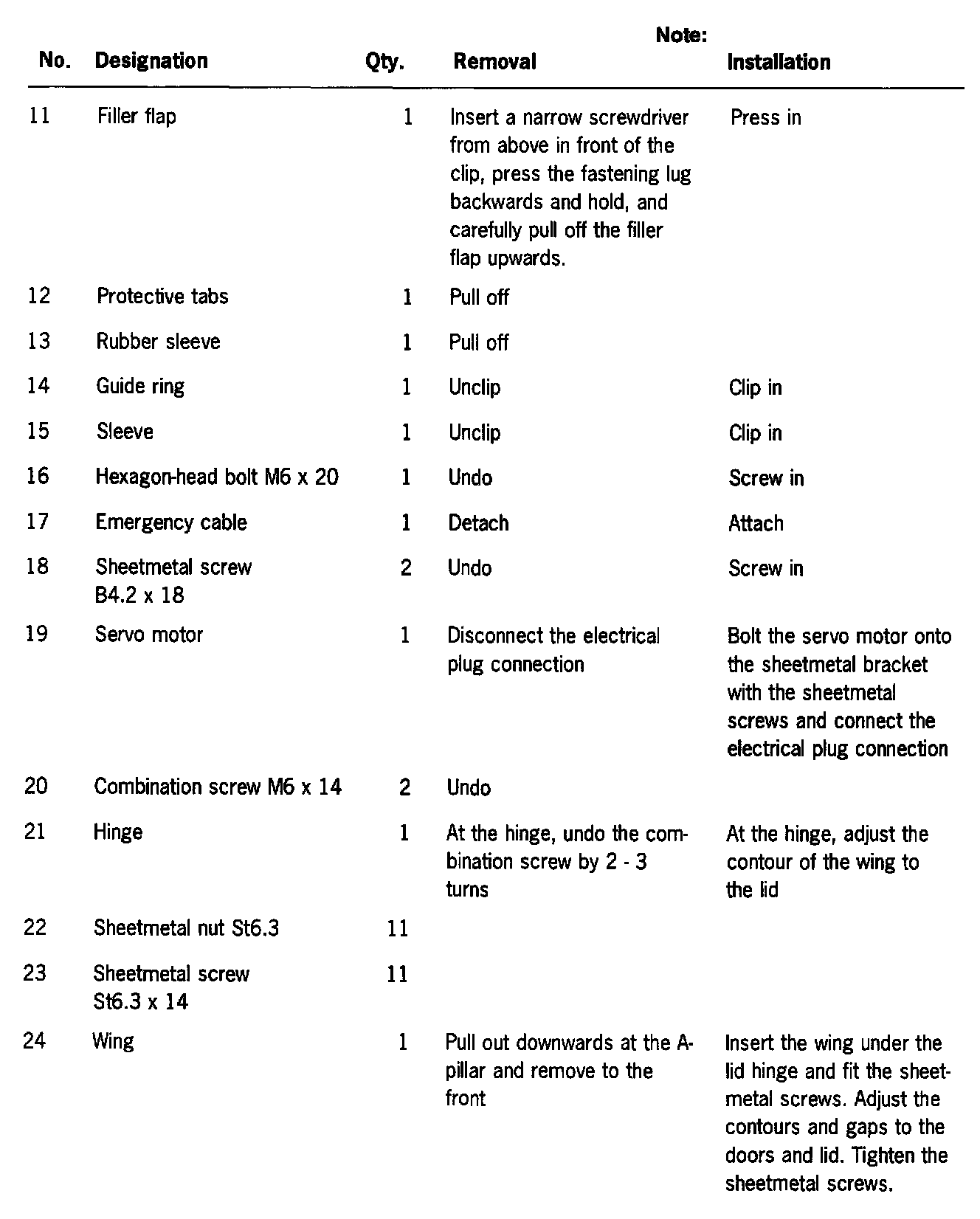

Steps No. 11 - 24:

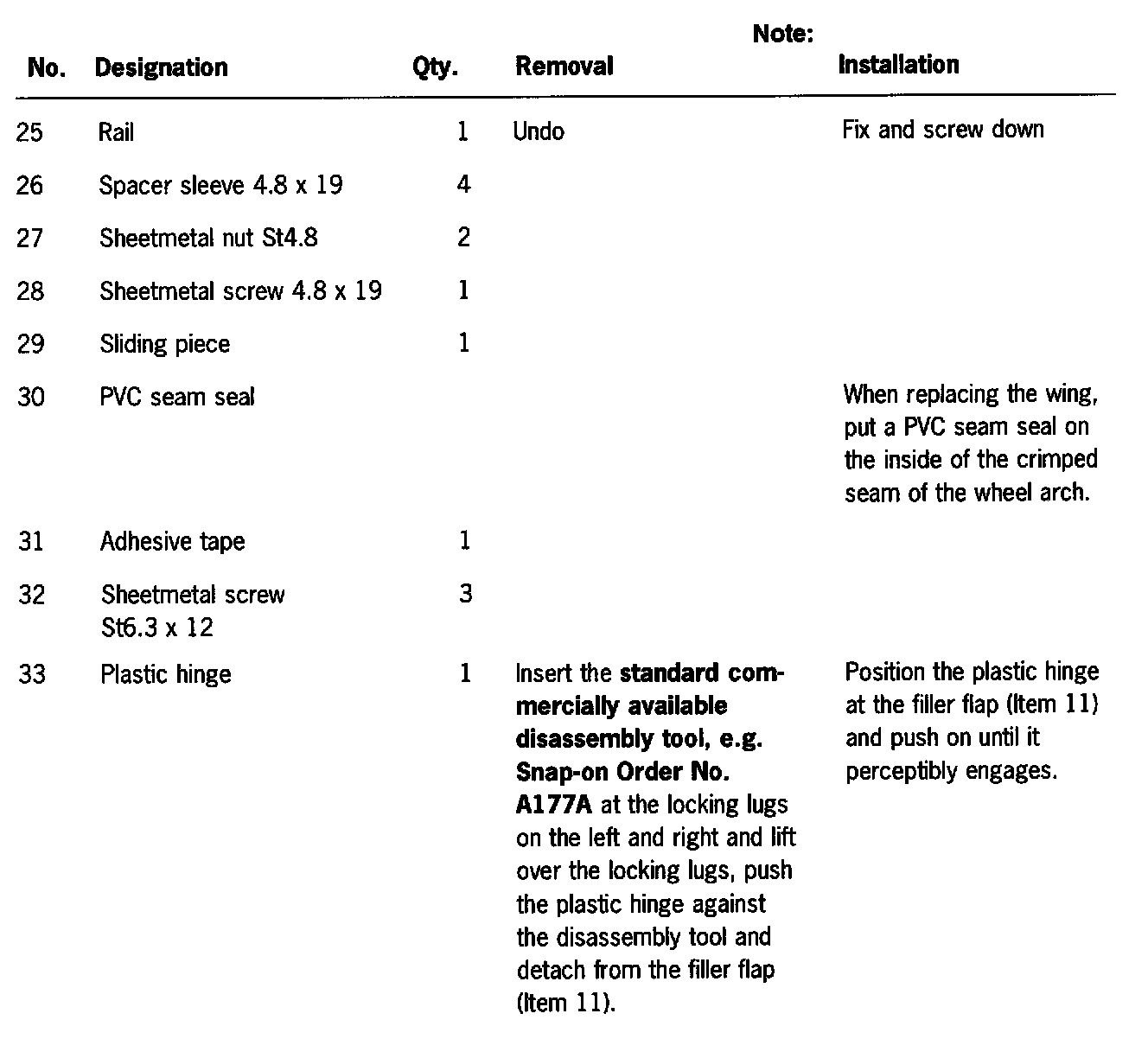

Steps No. 25 - 33:
