PSM 5.3 Connector Assignment

PSM 5.3 connector assignment

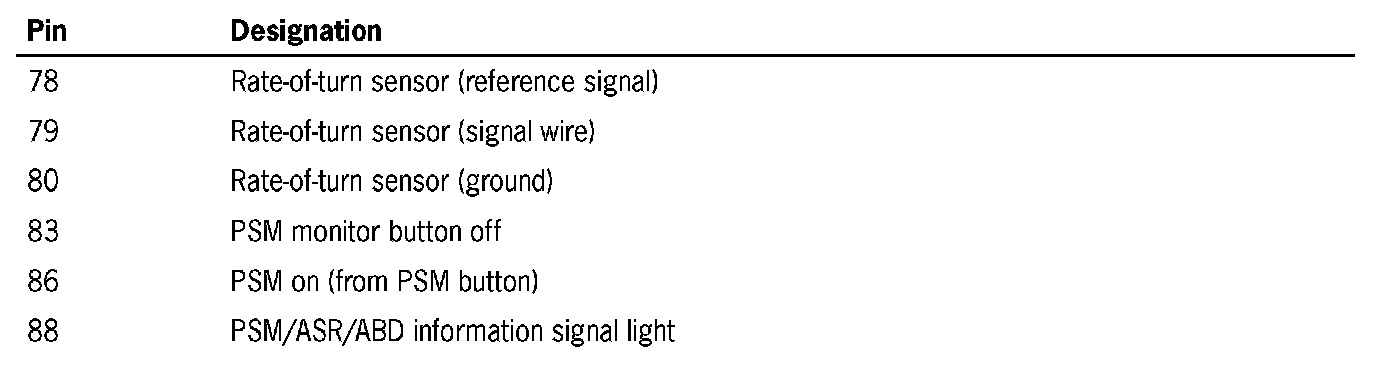

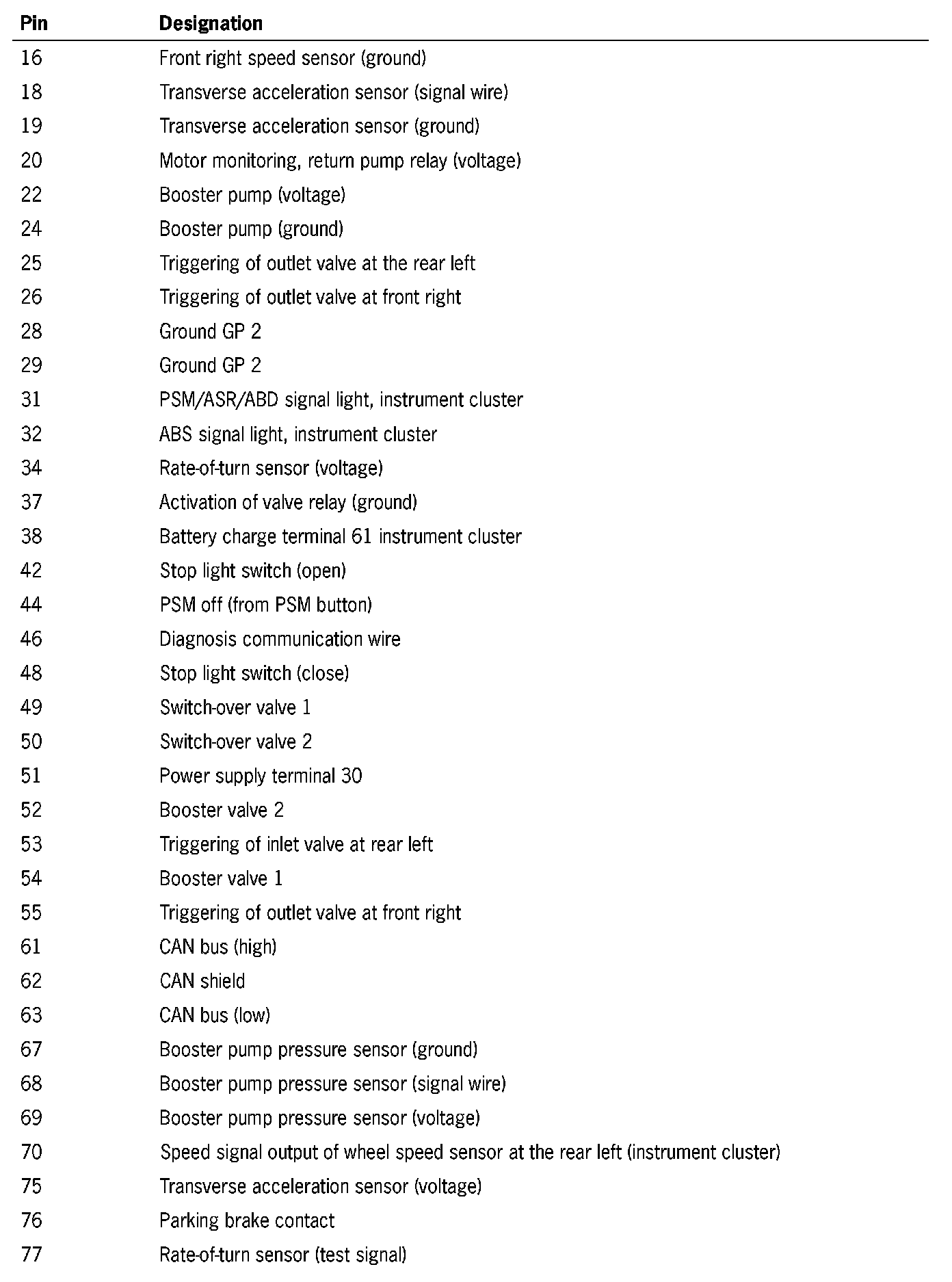

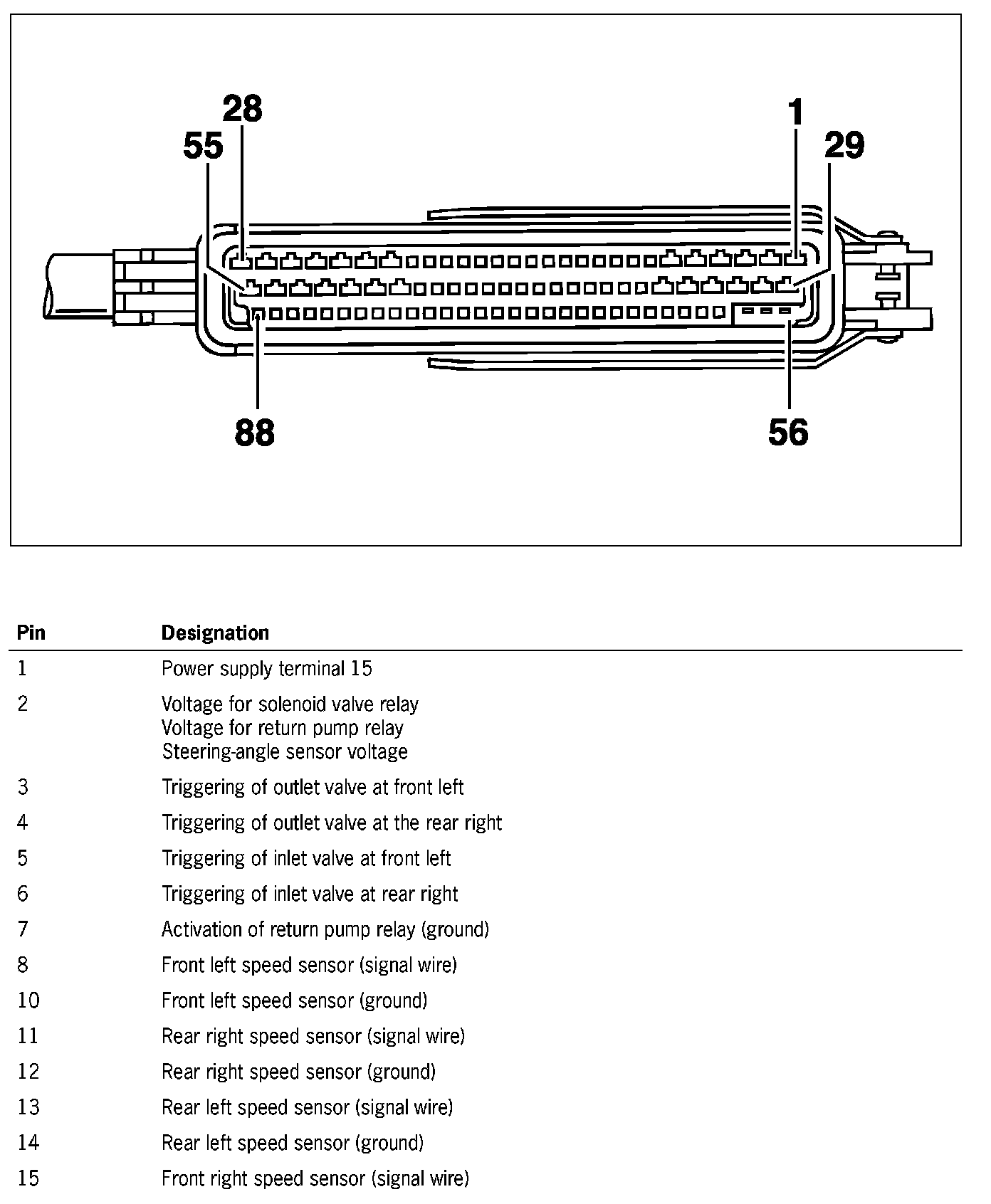

Connector of PSM 5.3 control module

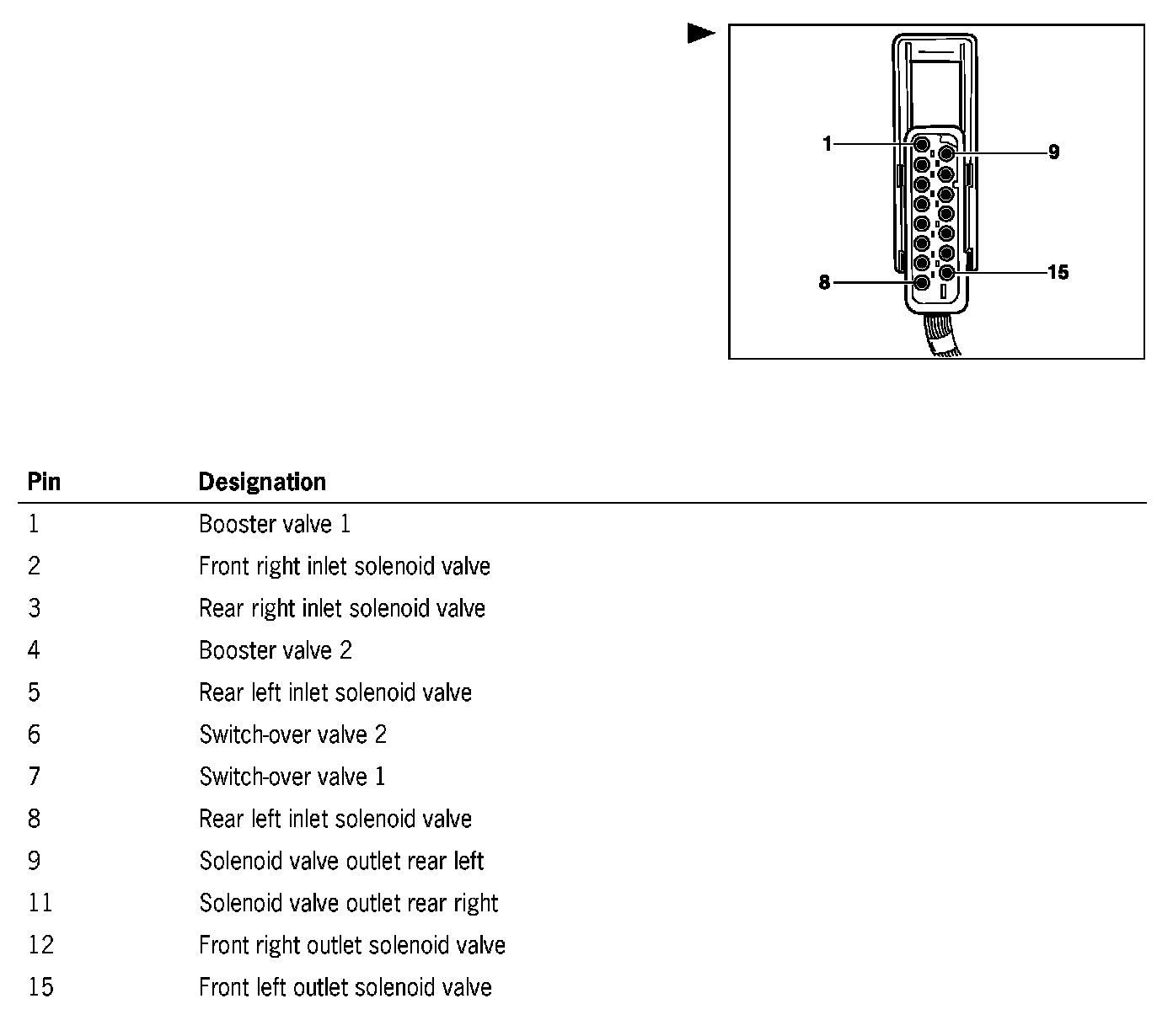

Connector of PSM 5.3 hydraulic unit

Ground points/plug connections

Ground point 2

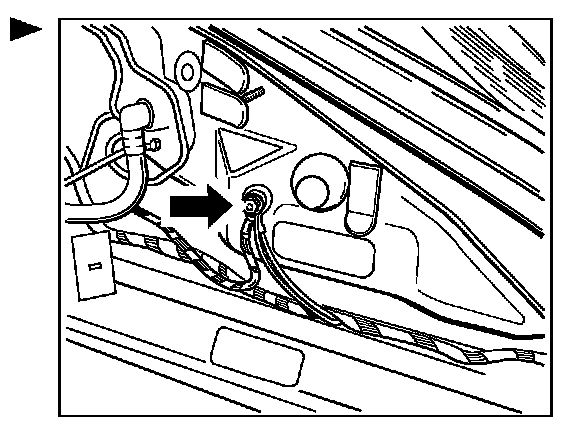

Ground point 2 is located on the left at the front end (KS front left)

Plug connection and relays

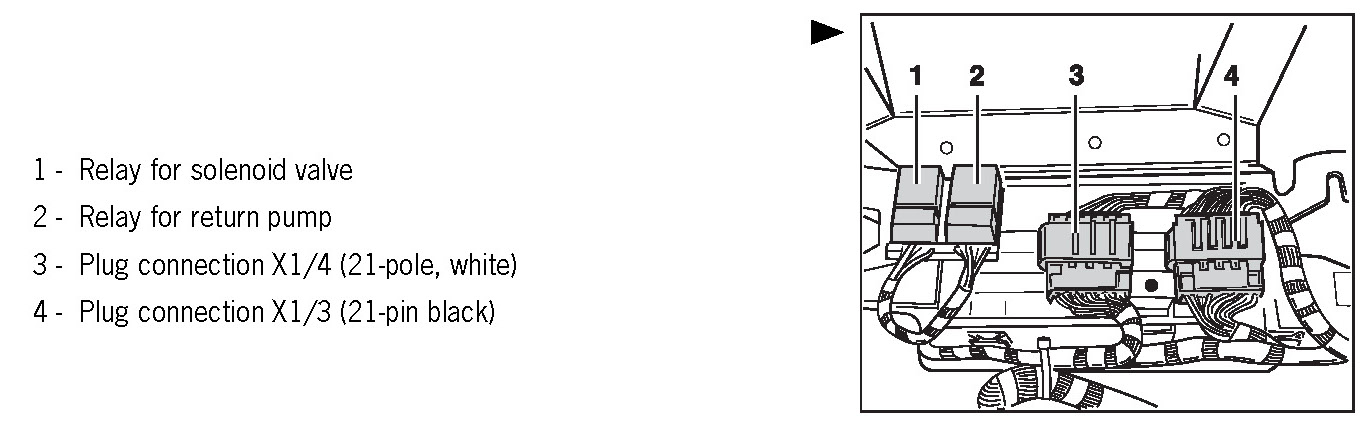

The plug connections X1/3, X1/4 and the solenoid valve and return pump relays are located in the passenger compartment wiring harness on the left at the front behind the PSM control module.
