Tiptronic System G100, G101, G102, G110

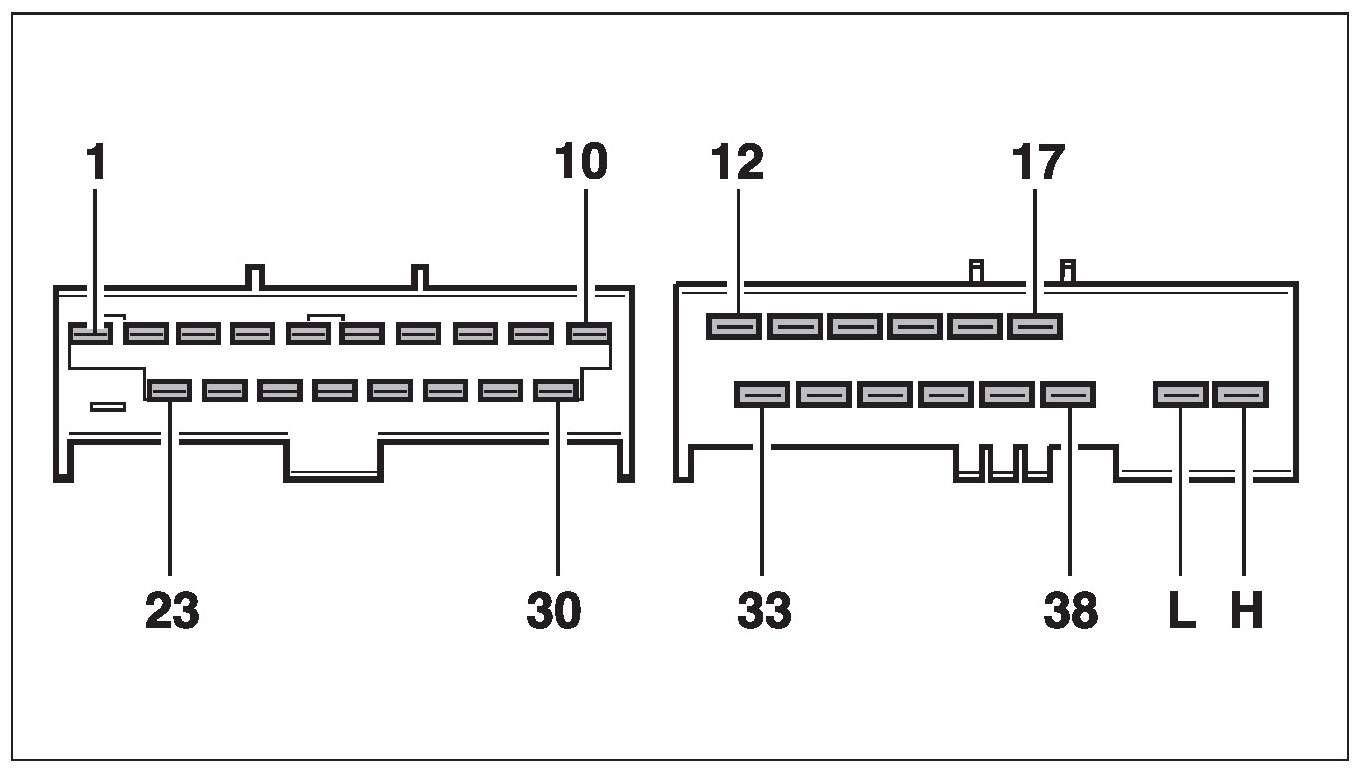

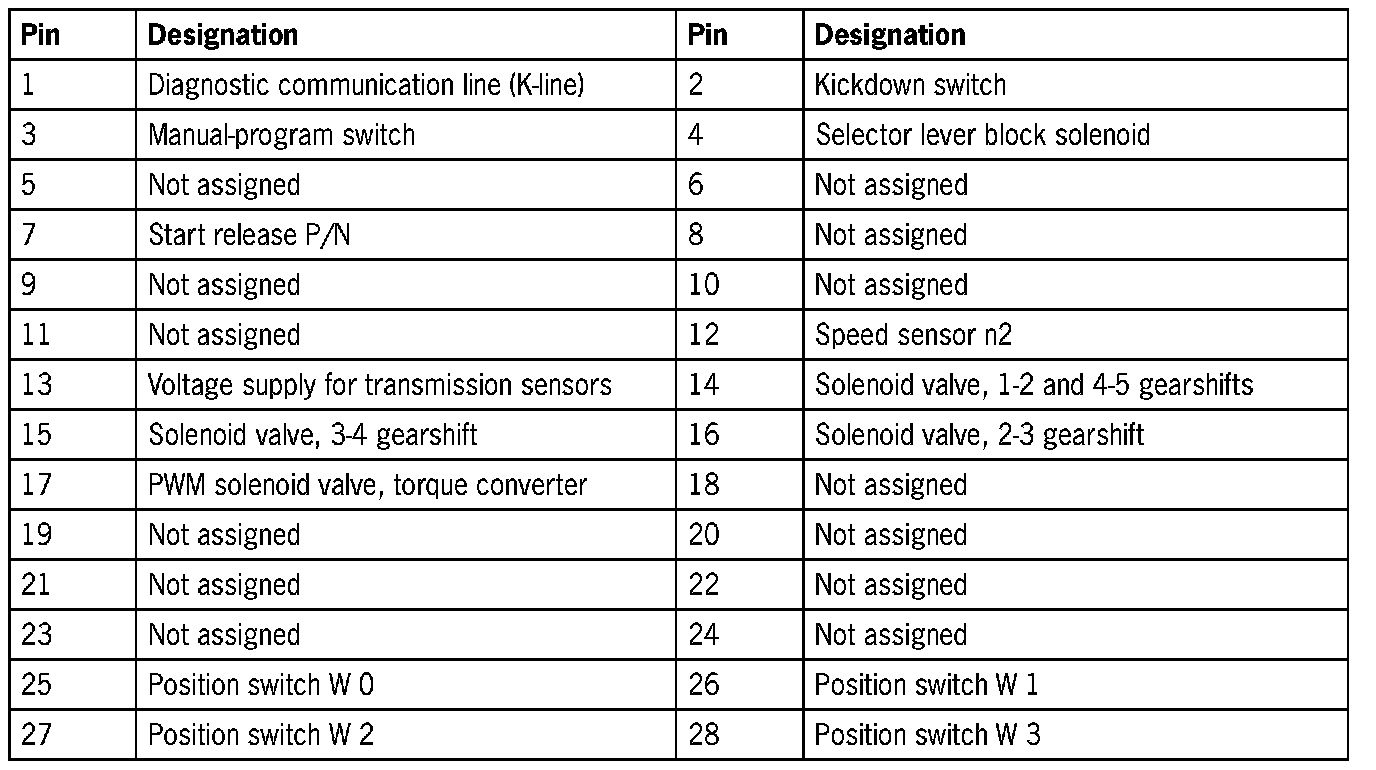

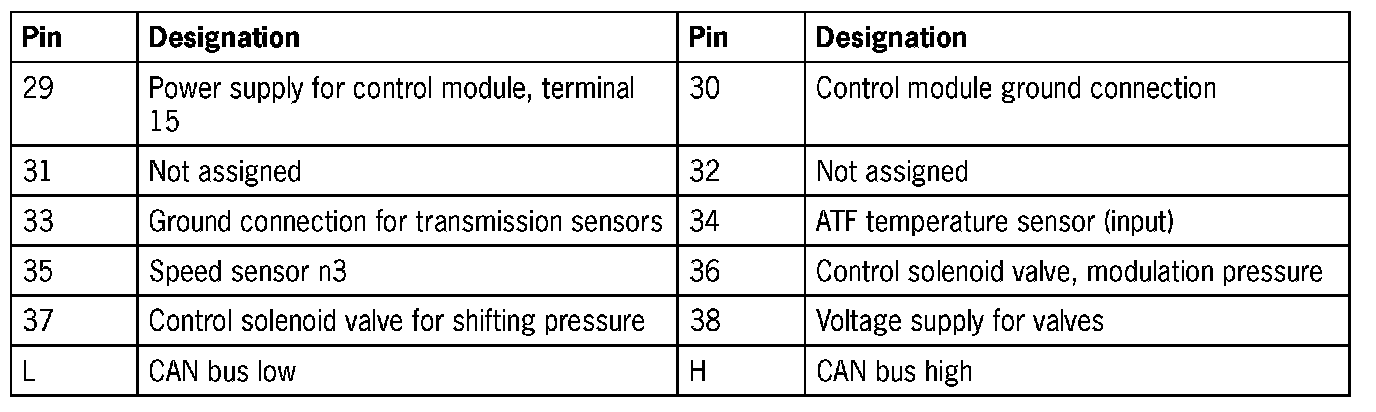

Connector AssignmentTiptronic control module connector
Tiptronic transmission connectors
Transmission connector (wiring harness side)Connection X60 rear/transmission

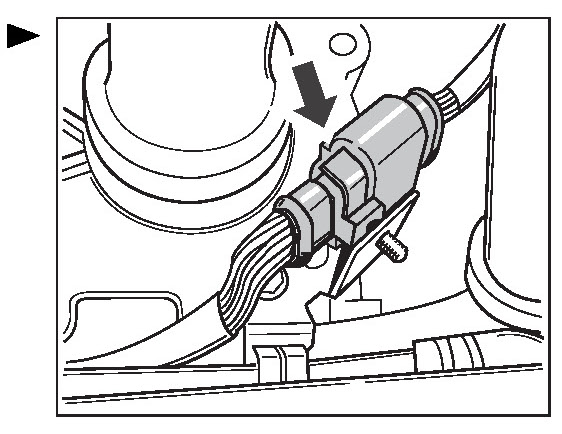

Connection X60NOTE: The connection X60 rear/transmission is located on the right-hand side of the transmission.

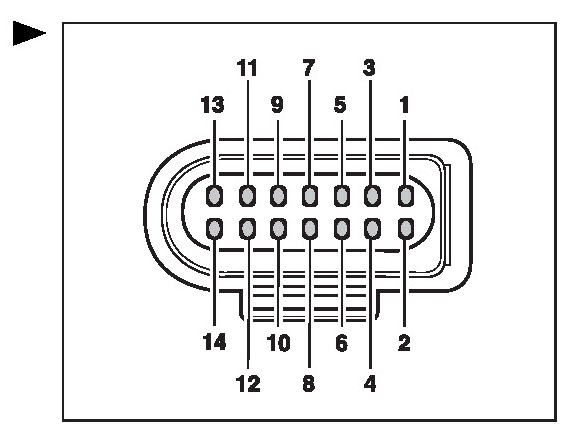

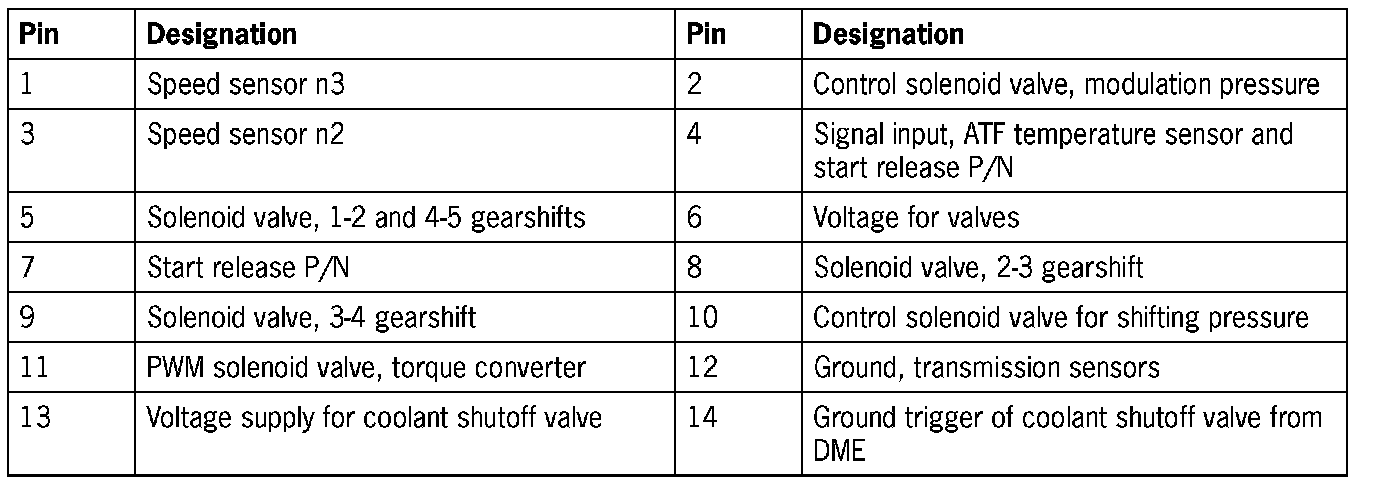

Connection X60 connector

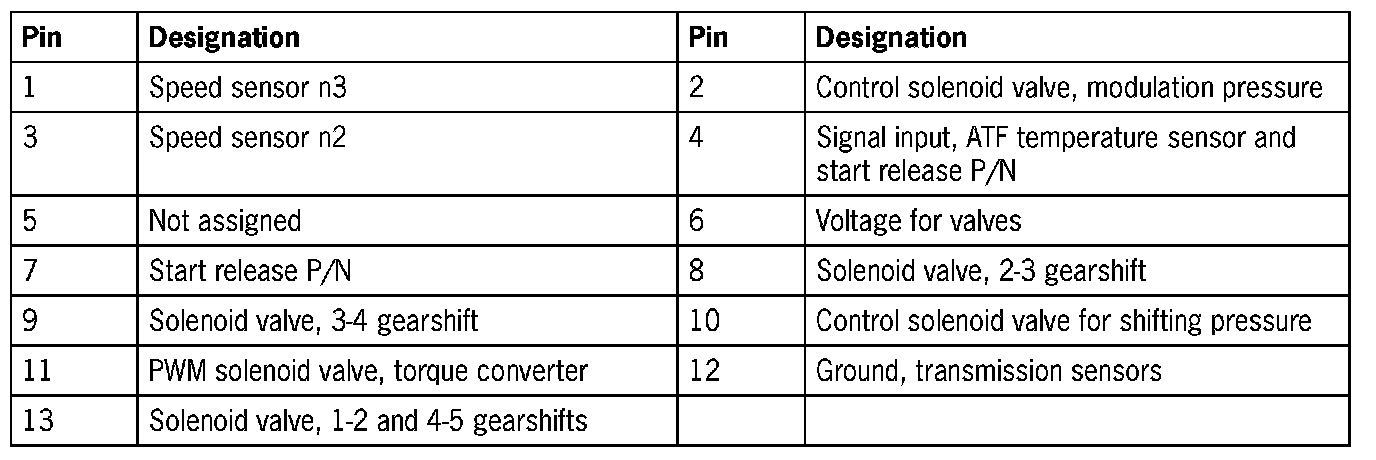

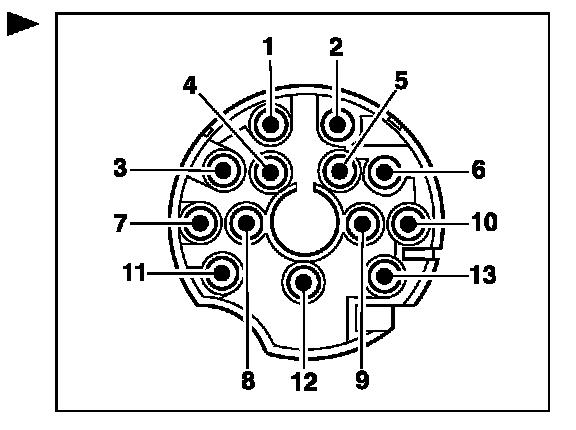

Connection X60 (control module side)
