Side Window

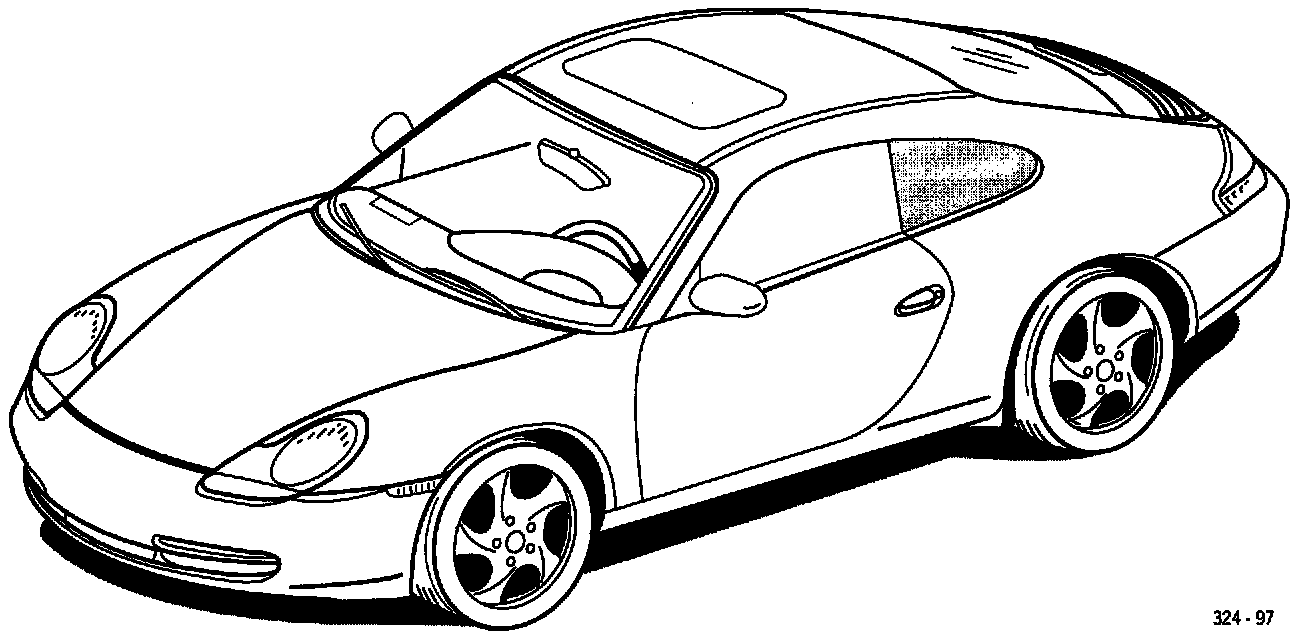

Overview:

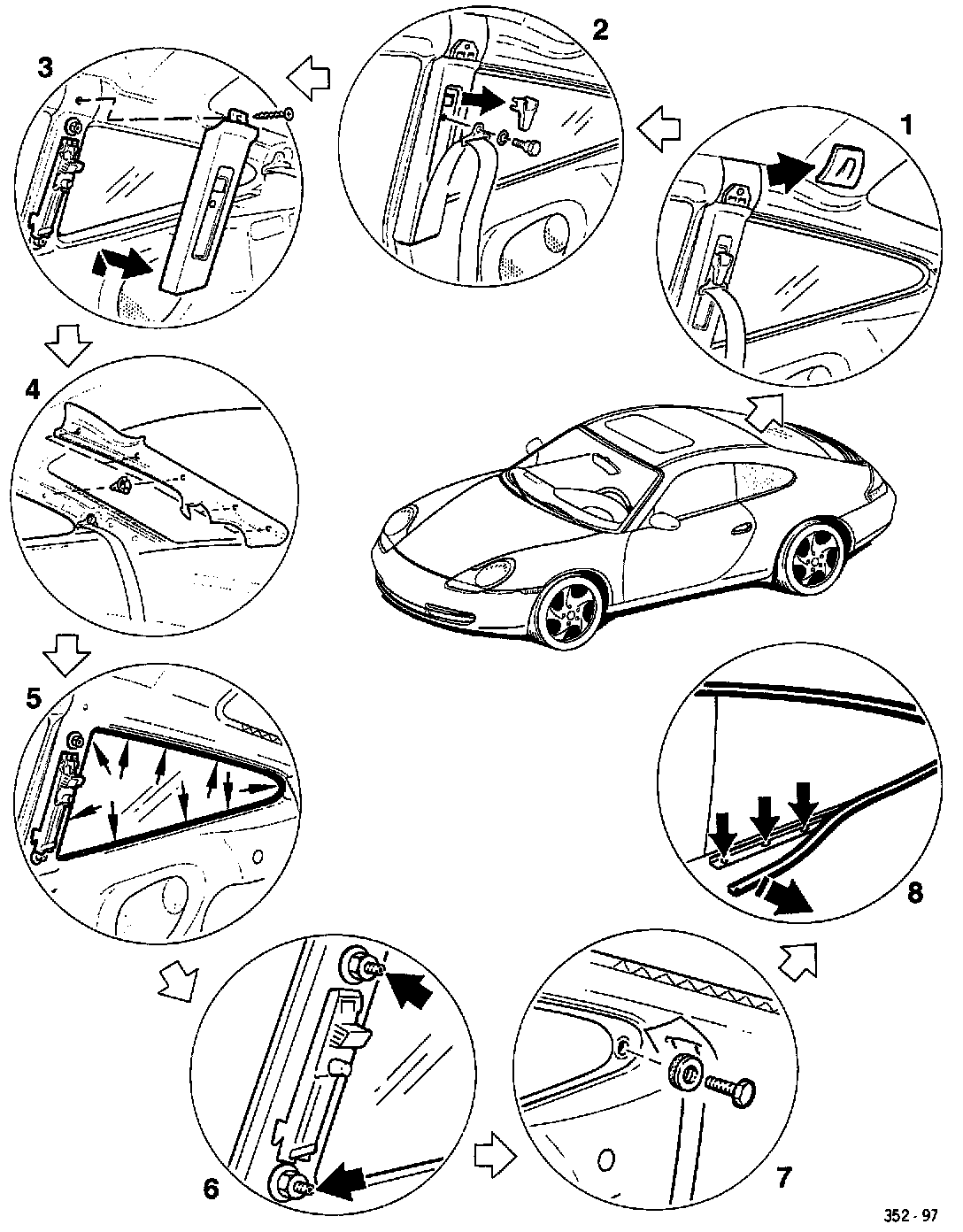

Removing side window


Steps 1 - 8:






NOTE: The removed side window can be reinstalled if
- there is no prior damage to the side window
- the side window was removed without damage.

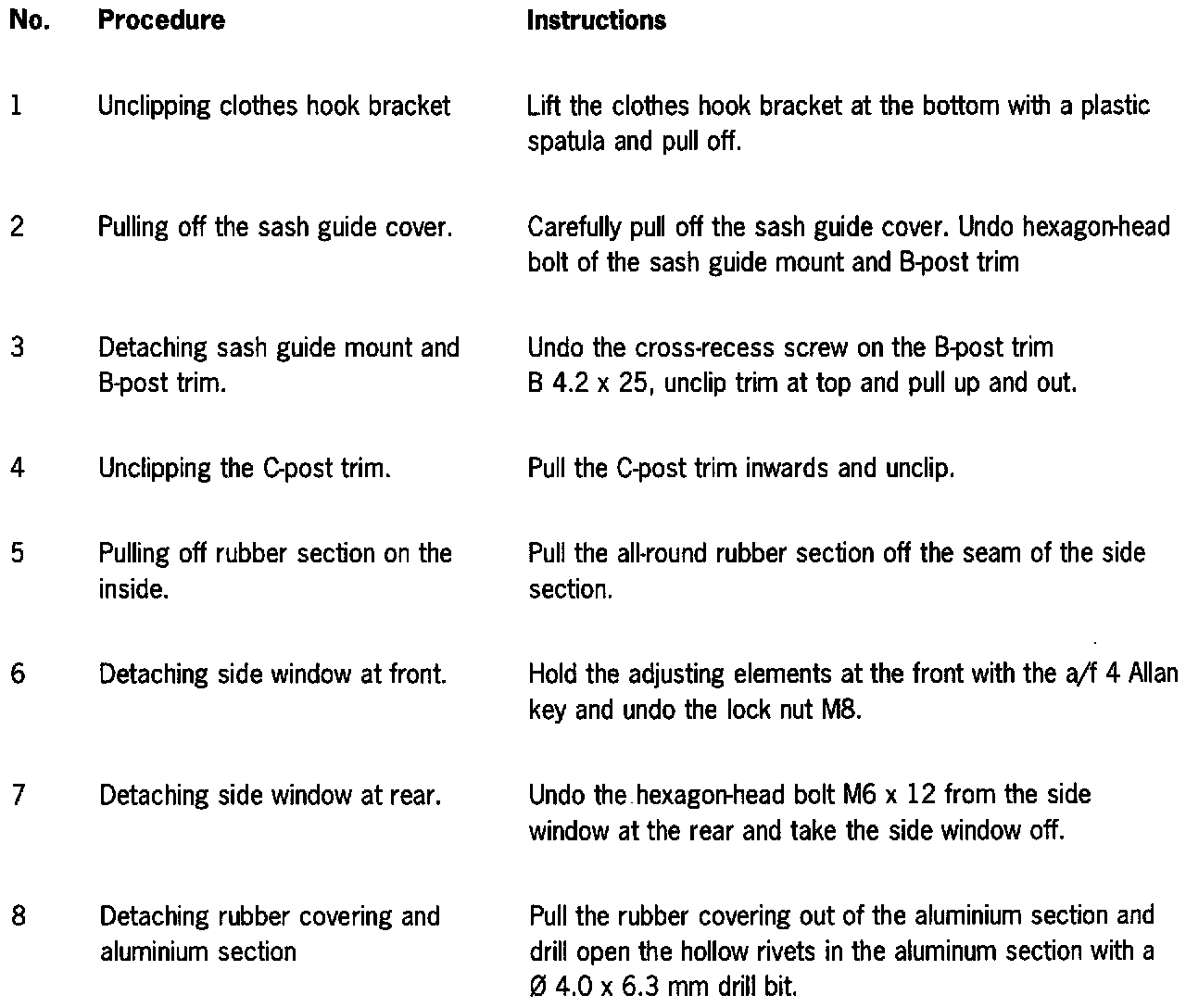

Procedures No. 1 - 8:

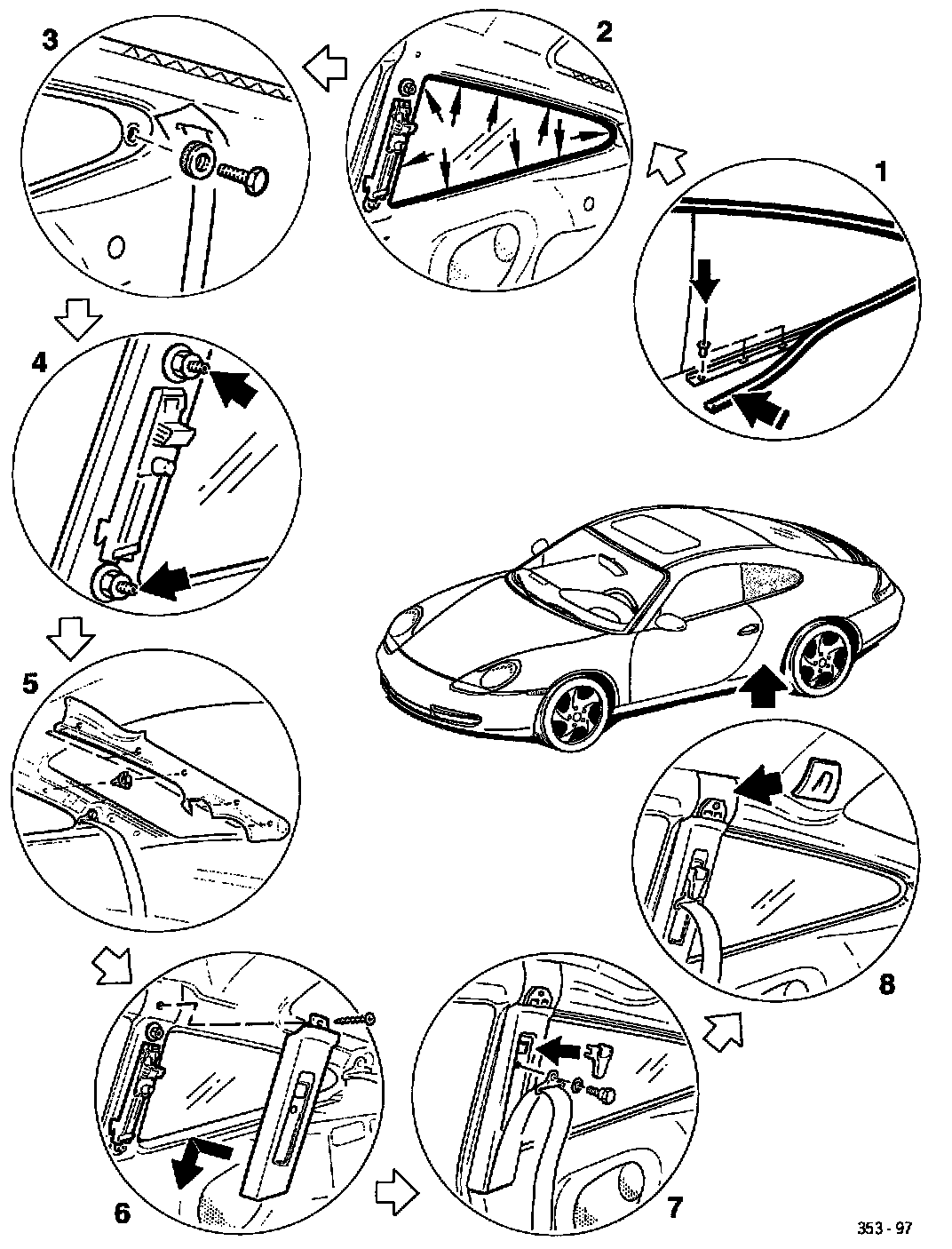

Installing side window


Steps 1 - 8:

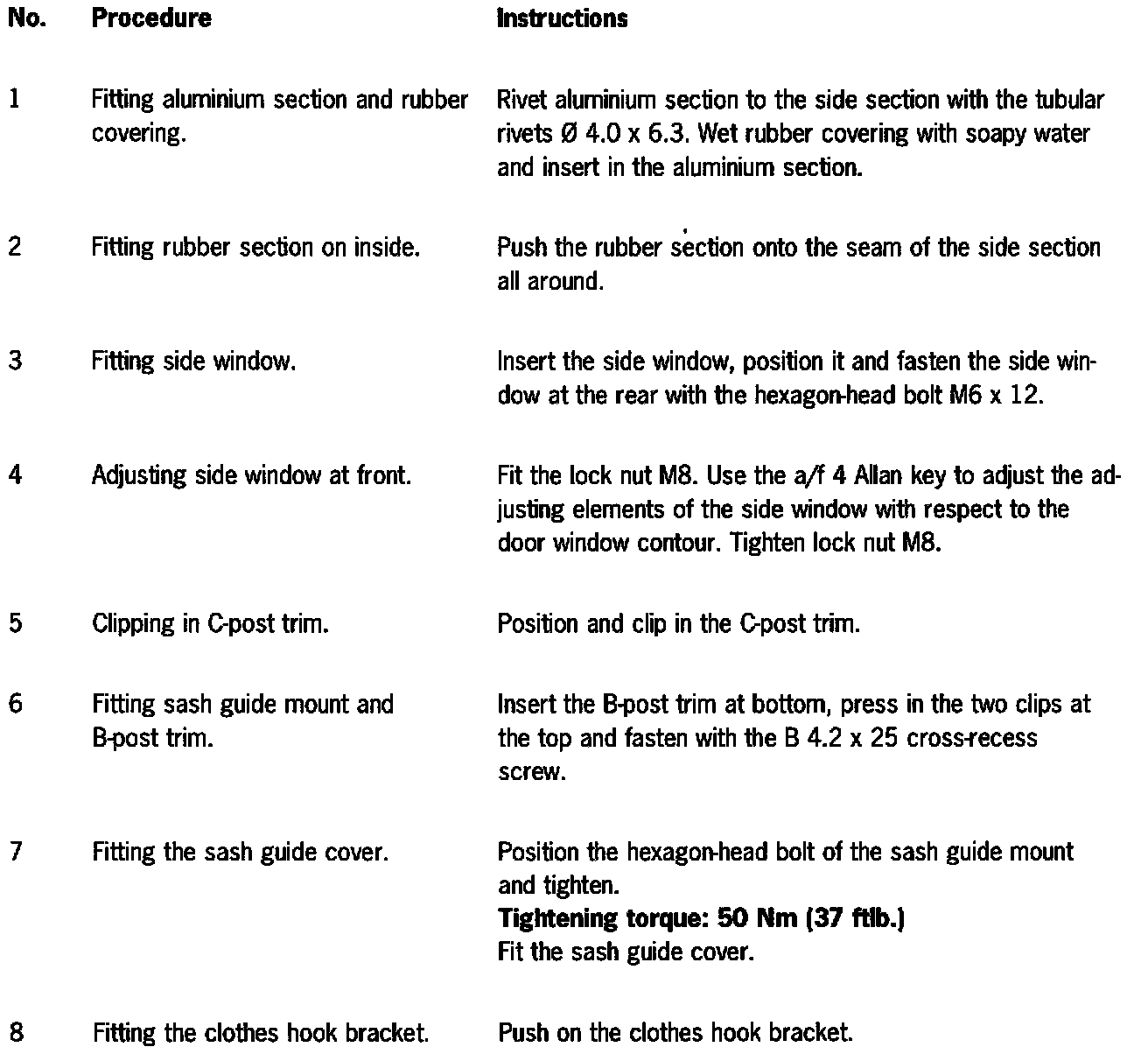

Procedures No. 1 - 8:
