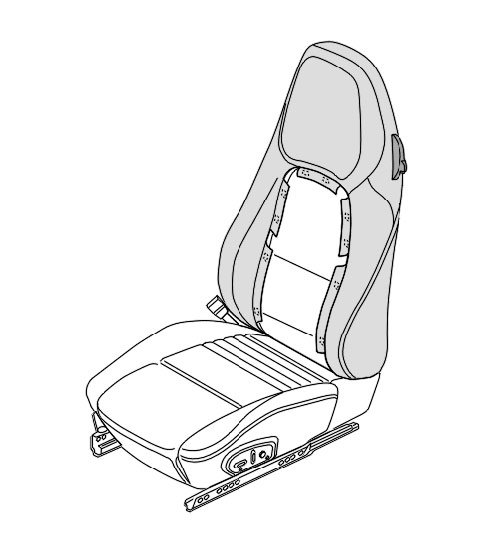

Replacing Covering For the Front Backrest Frame



Replacing Covering For The Front Backrest Frame

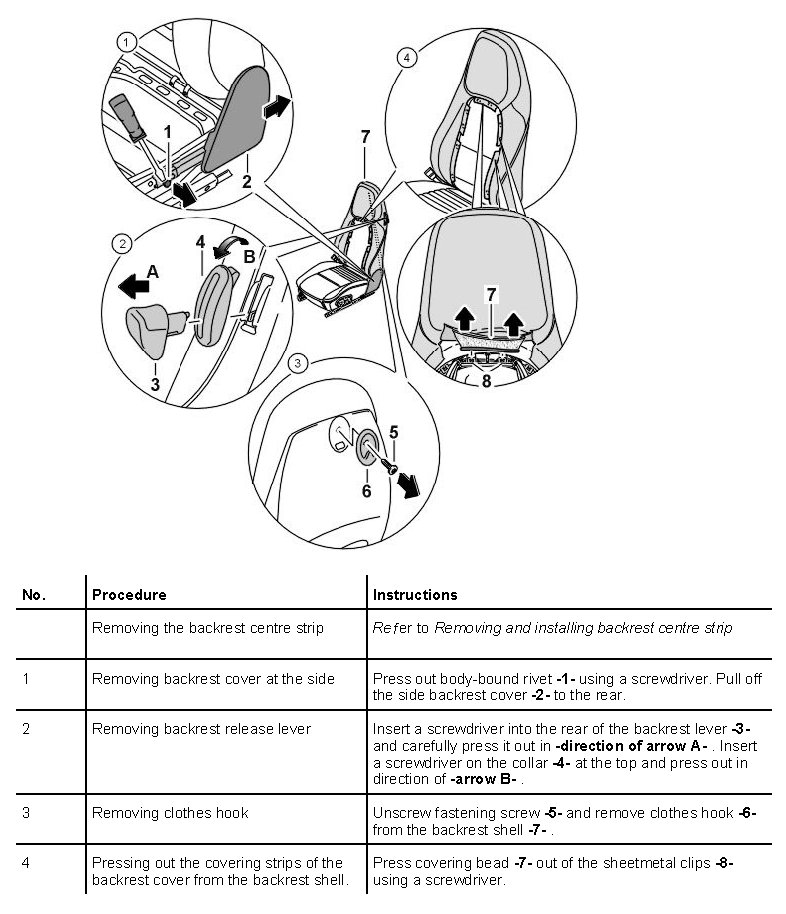

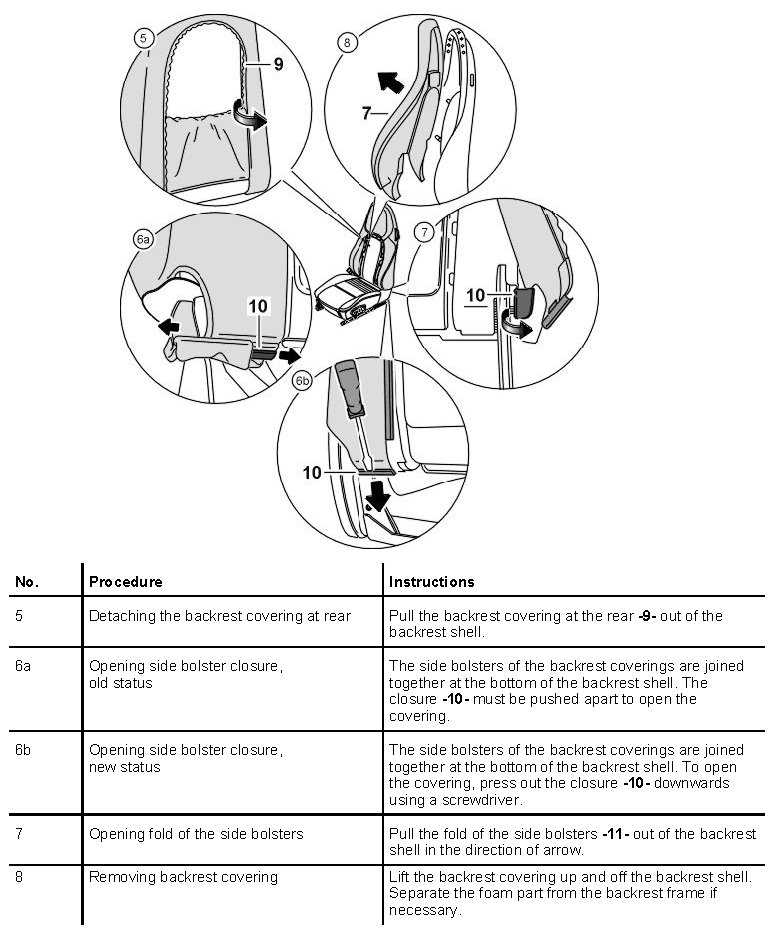

Removing cover for the front backrest frame

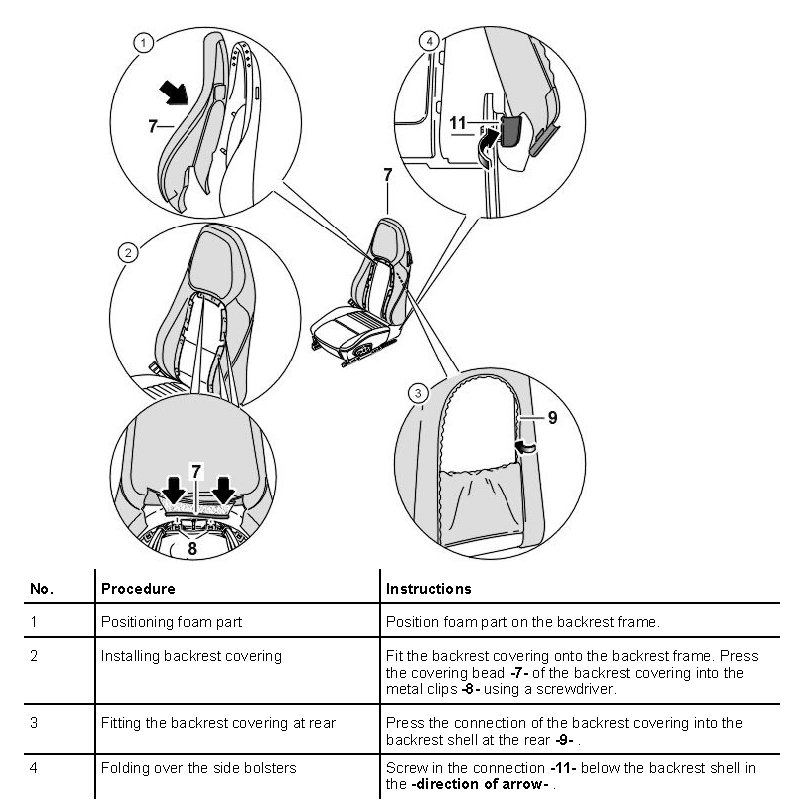

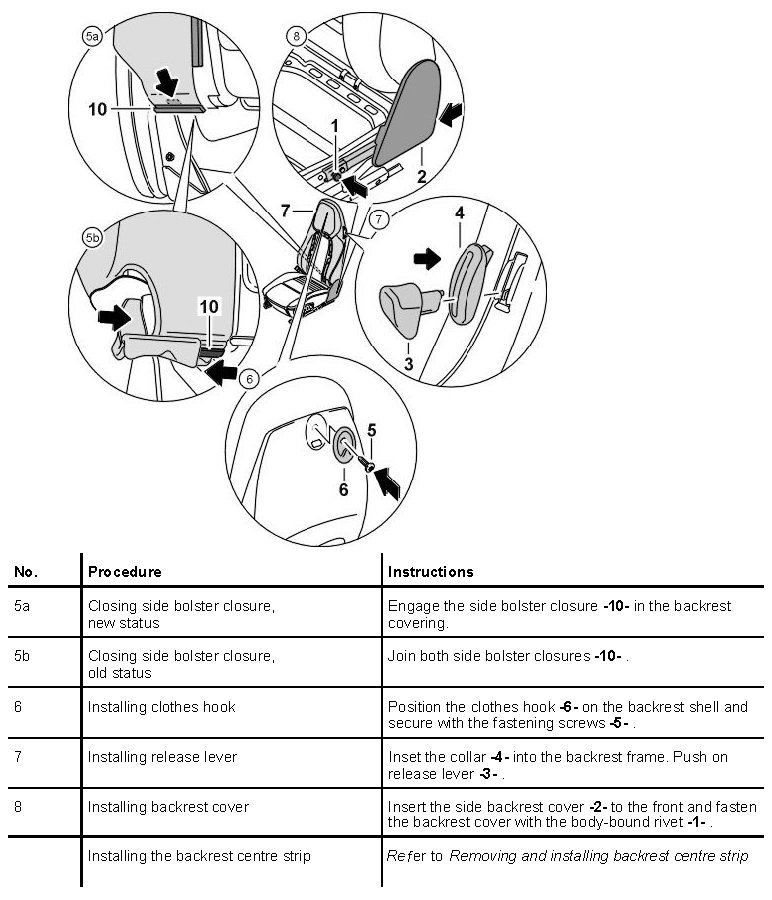

Installing covering for the front backrest frame










CAUTION: Danger of material damage if excessive heat is applied.

- If creases form, only short partial warming with the hot-air gun is permissible. The hot-air temperature of approx. 50 degrees Celsius (122 Fahrenheit) must always be observed.
