System Specifications

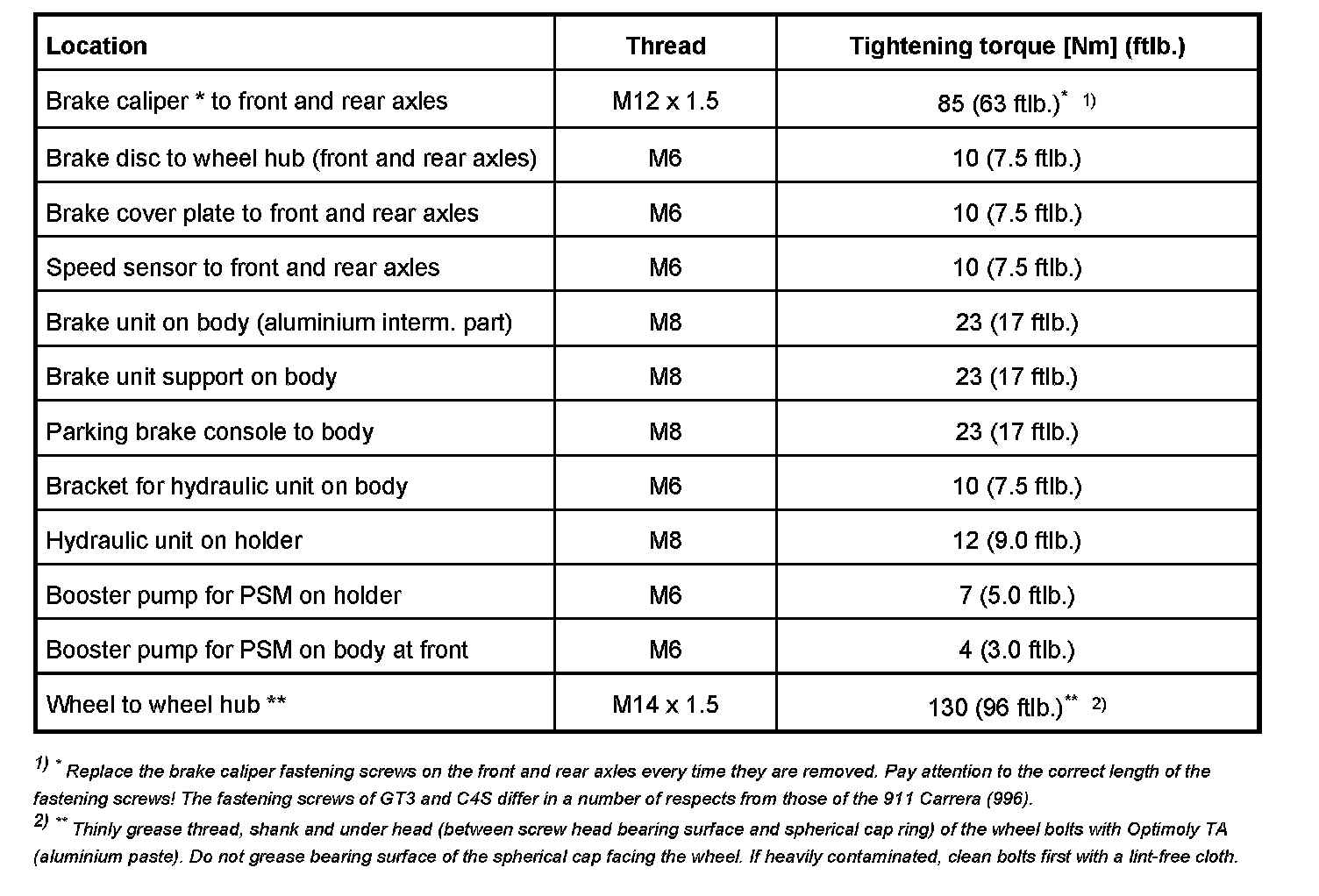

Tightening torques for mechanical brake





Front
Front Without PCCB
Brake disc thickness/wear limit: Max. 2.0 mm total wear permissible.

The permissible lateral runout of the installed brake disc is max. 0.06 mm
Brake disc: max. 0.03 mm.
Thickness tolerance of the brake disc max. 0.02 mm (new condition: max. 0.01 mm).

Rear
Rear without PCCB
Brake disc thickness/wear limit: Max. 2.0 mm total wear permissible.

Lateral runout of the removed brake disc:max. 0.03 mm.
Thickness tolerance of the brake disc max. 0.02 mm (new condition: max. 0.01 mm).
