Fluid - M/T: Service and Repair

Changing transmission oil - GT2
Total capacity: 3.7 + 0.1 Liter
Oil change quantity: 3.7 + 0.1 Liter

Note:
^ Use only oils approved for this type by Porsche.

Changing transmission oil - GT2
1. Remove rear, center and left underbody trim.





2. Unscrew oil filler plug -1-.
3. Unscrew oil drain plug -2- and let oil drain off into a suitable container.

Topping up transmission oil - GT2
1. Clean the drain plug and filler screw.
2. Screw in oil drain plug again and top up oil up to the bottom edge of the oil filler opening.
Tightening torque: 30 Nm (22 ft. lbs.)
3. Screw in oil filler plug.
Tightening torque: 30 Nm (22 ft. lbs.)
4. Fit underbody trim parts.

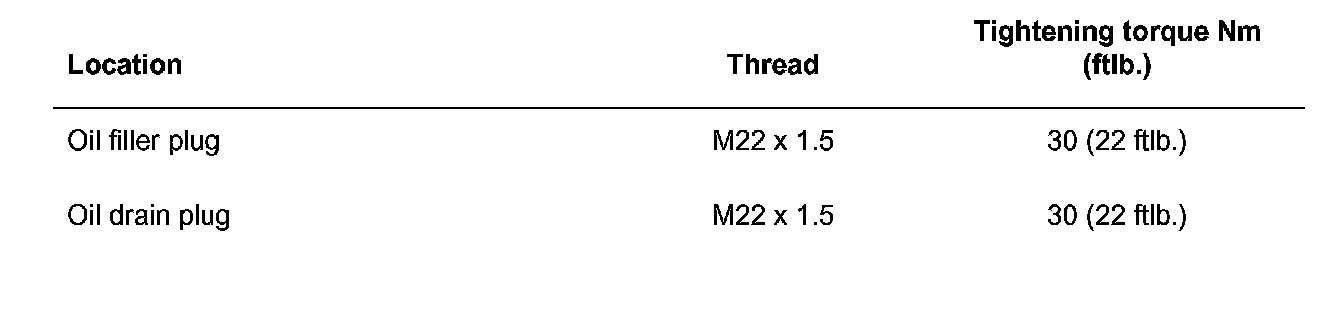

Tightening torques
