Fusible Element In the Current Distributor

Removing and Installing Fusible Element in the Current Distributor

Removing








1. Remove cover for current distributor and remove the service label.

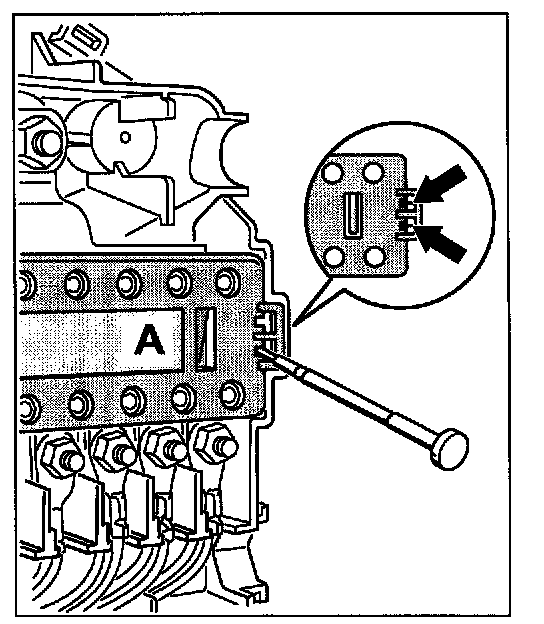

2. Carefully lever off the cover -A-, e.g. with a screwdriver -arrow-. This will break the locking tabs and the cover can be removed.





3. Remove the broken locking tabs from the current distributor.
4. Unscrew the two hexagon nuts M5 -3- from the blown fusible element -1- and remove with the washers -2-.

Installing

NOTE:
The following spare parts must be replaced.
- Hexagon nut M8, 1 piece
- Repair kit - replacement fusible element





1. Insert new fusible element -1-, using new washers -2- and new hexagon nuts -3- M5. Tightening Torque: 4 Nm (3 ftlb.).





2. Position and engage the blue after-sales service cover -A-.
3. Close the current distributor cover until it engages -arrow-.
4. Affix the blue service label.
5. ==> Refer to "Installing the current distributor".
