Navigation Unit, Removing and Installing

Removing And Installing Navigation Unit

NOTE: Special tool V 160 must be used to remove the navigation unit.

Removing navigation unit

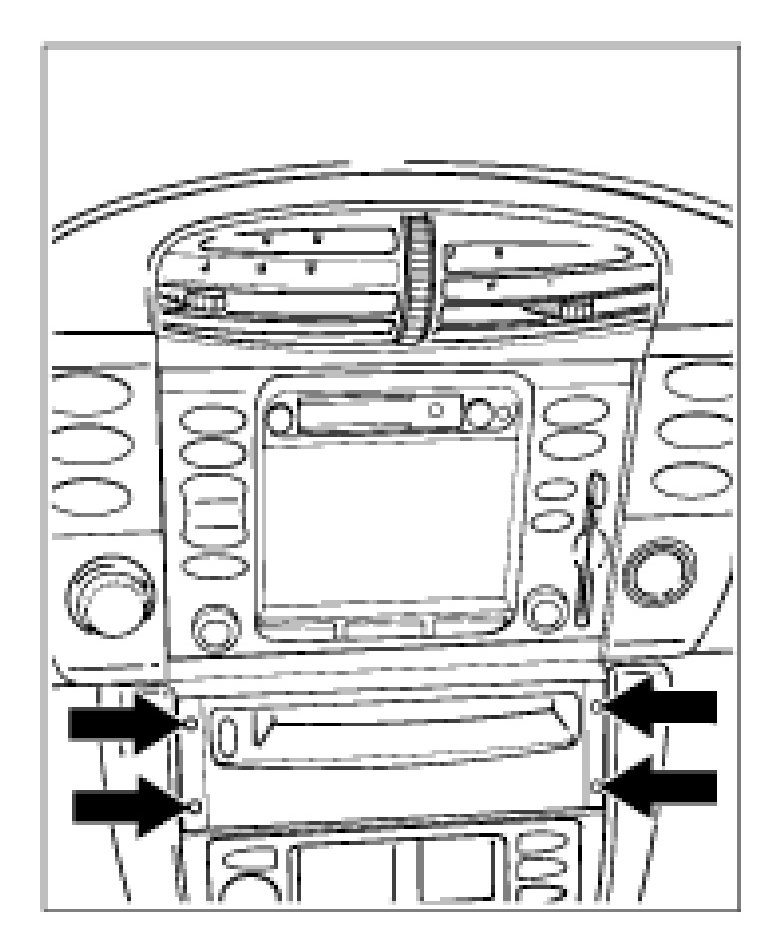

1. Unclip the cover on the left and right of the navigation unit.
2. Insert special tool V 160 into the recesses of the navigation unit and engage.







3. Carefully push out the navigation unit rearward and disconnect plug connections.

Installing navigation unit
1. Engage the electrical plug connections and carefully lay the electrical leads (do not pinch).
2. Clip in cover on the left and right and perform a function test.

Device code input

NOTE: The navigation unit is protected against theft by a device code.

- Only the navigation code has to be input again if the navigation unit is exchanged.
