Condenser Fan: Service and Repair



Removing And Installing Fan For Condenser




NOTE: This procedure applies to both driver-side and passenger-side condenser fans.

Removing fan for condenser
1. Remove front wheel, front wheel housing liner and front spoiler.

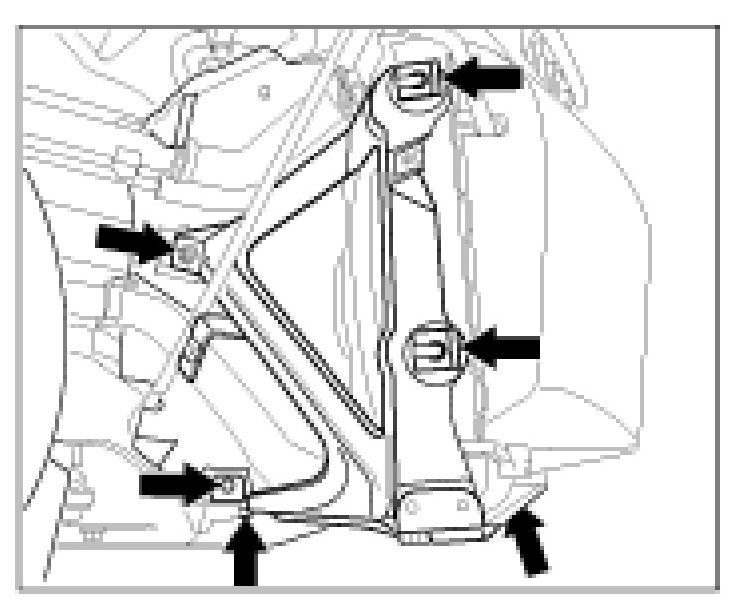

2. Detach cooler bracket from the body -(1 nut, 2 M8 screws and 1 sheetmetal screw)-.
3. Undo -retaining clips- from the radiator and pull off the radiator bracket downwards.







4. Disconnect the electrical plug connection and undo 2 sheetmetal screws from the fan housing.
5. Pull the fan housing with fan motor out of the holder.

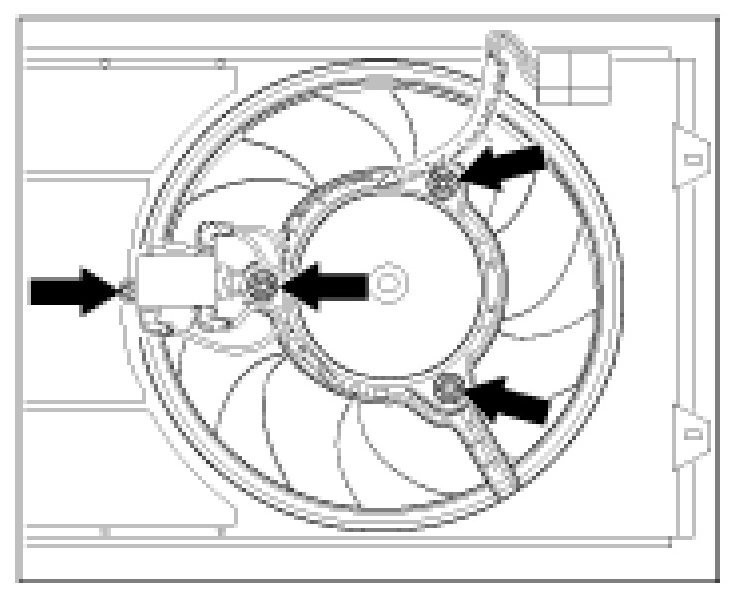

6. Detach -fan motor and ballast resistor- from the fan housing and remove.

Installing fan for condenser
1. After installation, check whether the fan can rotate freely.
2. Tighten front wheel.
Tightening torque: 130 Nm (96 ftlb.)
