Antenna Control Module: Service and Repair

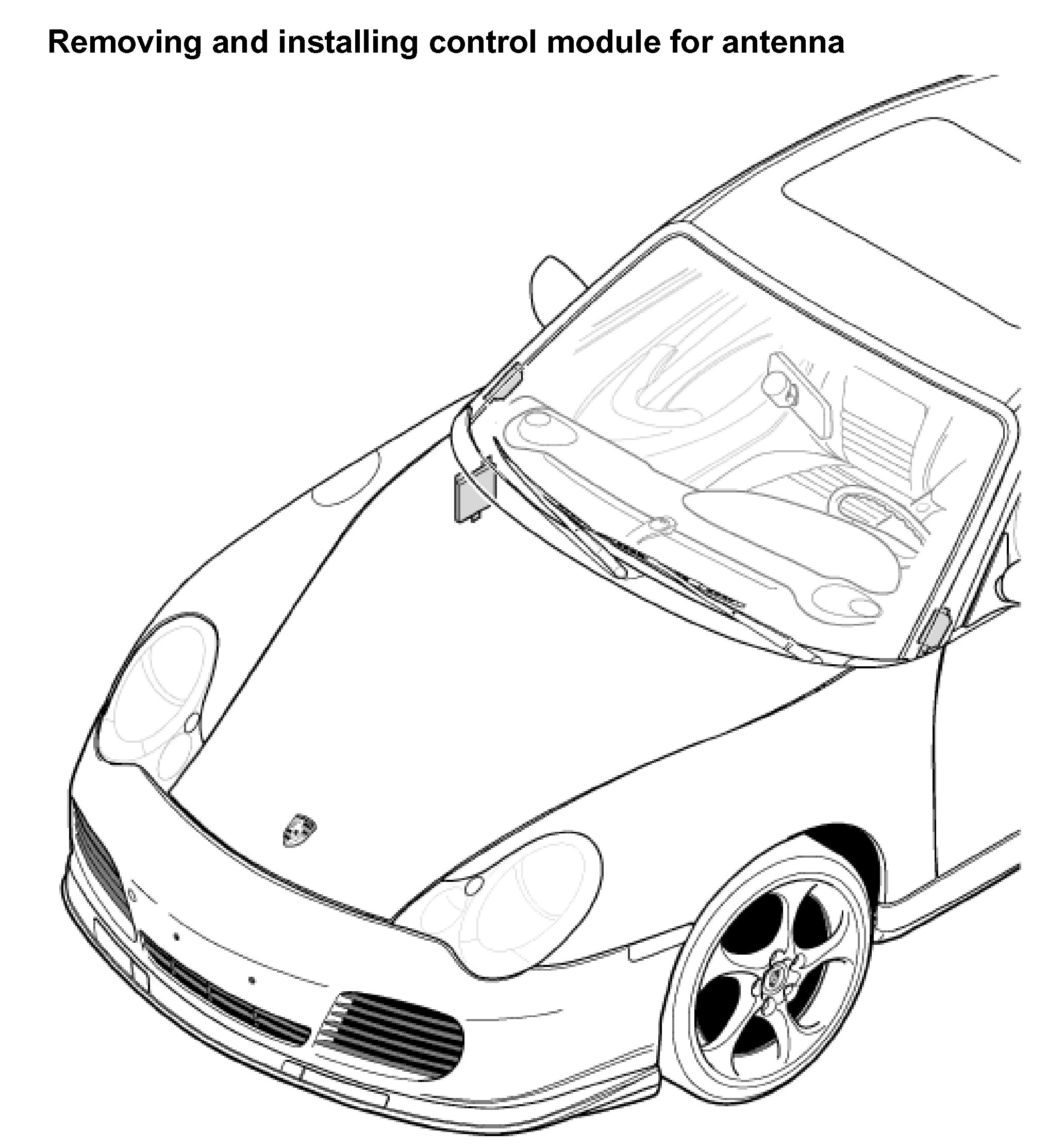

Removing And Installing Control Module For Antenna







Removing control module for antenna
- Remove the right cover under the instrument panel.
- Remove the ignition key and switch off the radio.

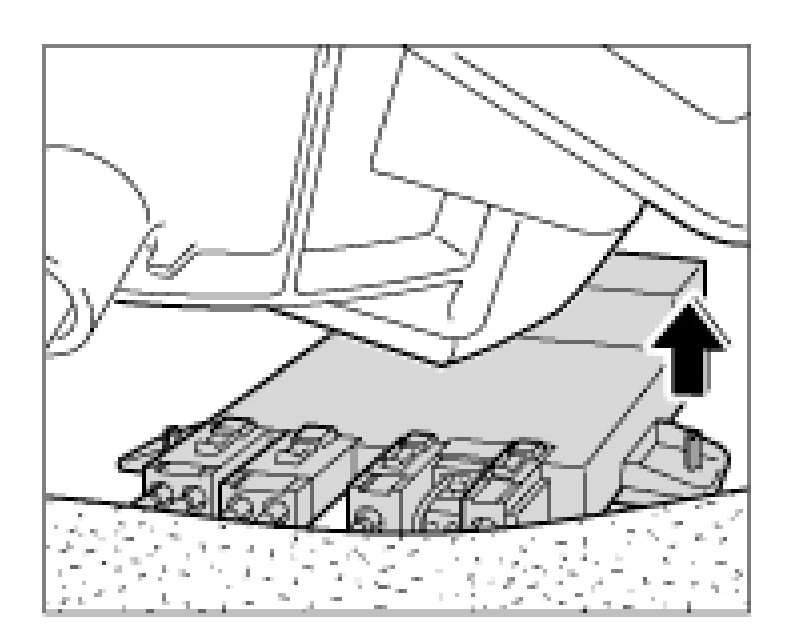

1. Lever the control module on the left side out of the clip and pull it to the right out of the holder.

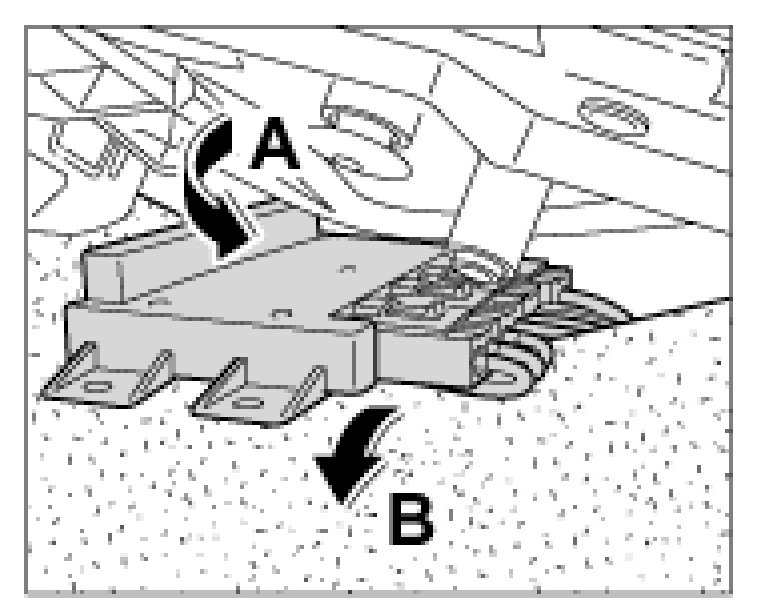

2. Swivel the control module in the direction of the arrow -A- and carefully pull it over the passenger compartment carpet -B- pay attention to the length of the lead.

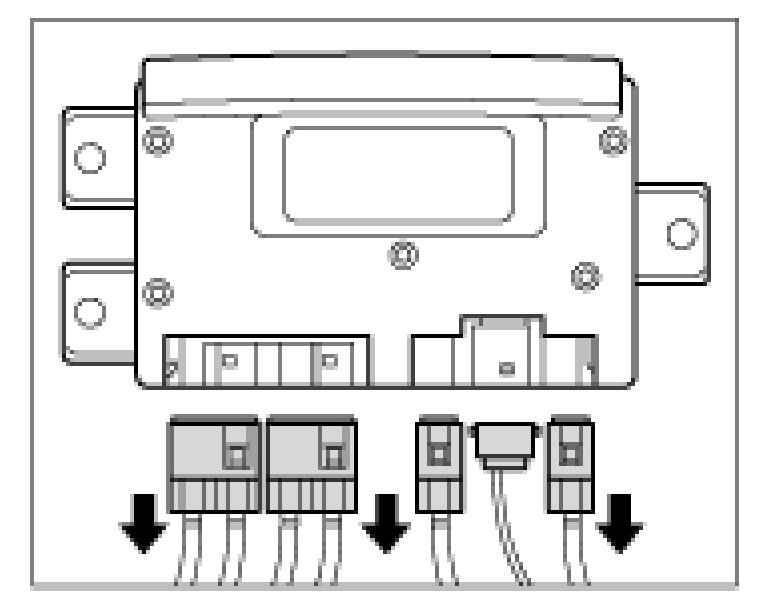

3. Disconnect the electrical plugs successively.







Installing control module for antenna

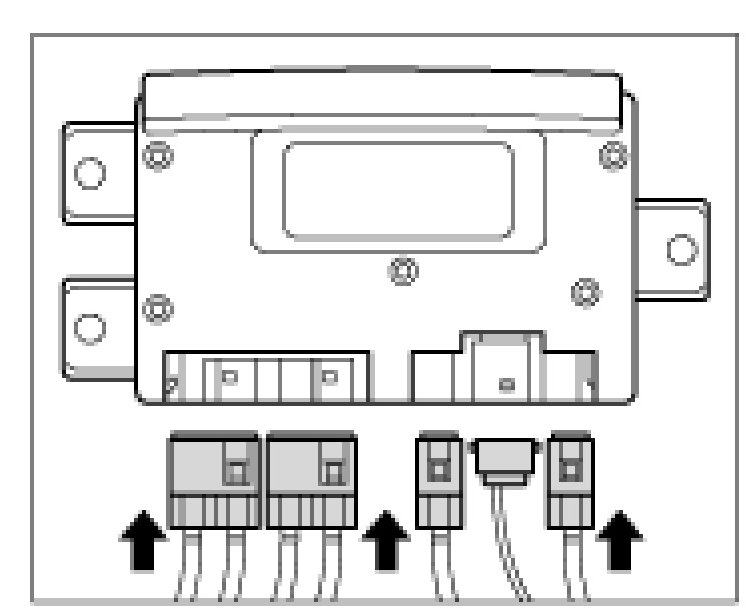

1. Connect the electrical plugs successively.

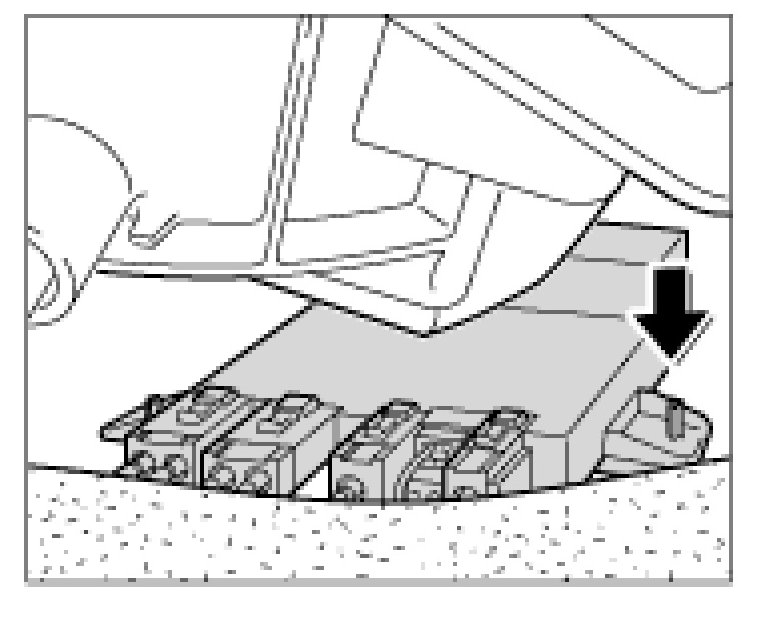

2. Carefully push the control module over the passenger compartment carpet -B- and position the module in the holder -A-.







3. Fasten the control module with the clip on the holder.


Install the right cover under the instrument panel.
