Removing and Installing Motor For the Lumbar Support

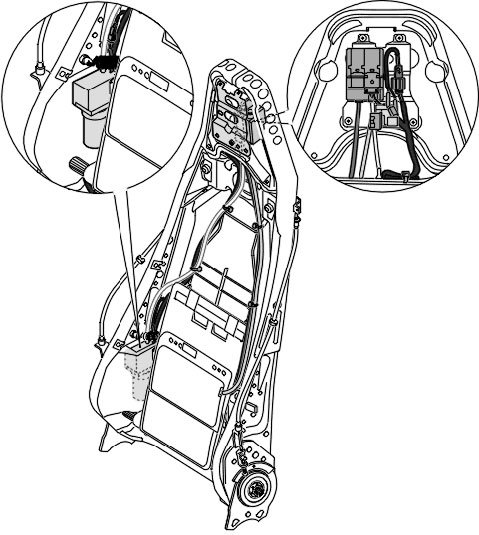

Removing And Installing Motor For The Lumbar Support

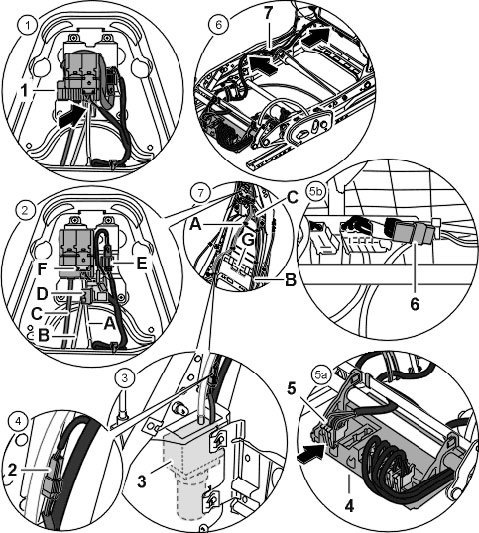

Removing lumbar adjustment device for the lumbar support







Removing motor for the lumbar support







Removing electrical line for the lumbar







Removing lumbar support

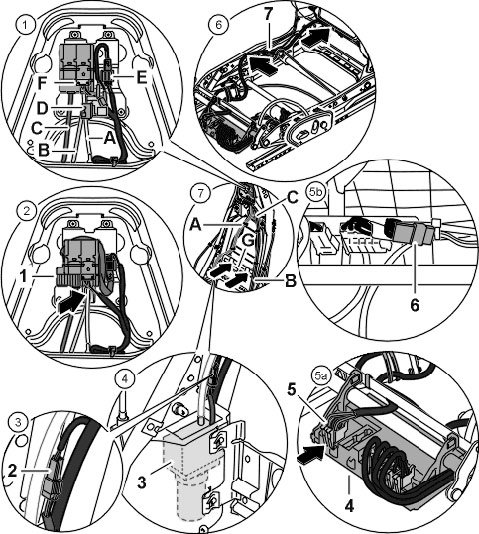

Installing lumbar adjustment device for the lumbar support







Installing motor for the lumbar support







Installing electrical line for the lumbar







Installing lumbar support







Tools

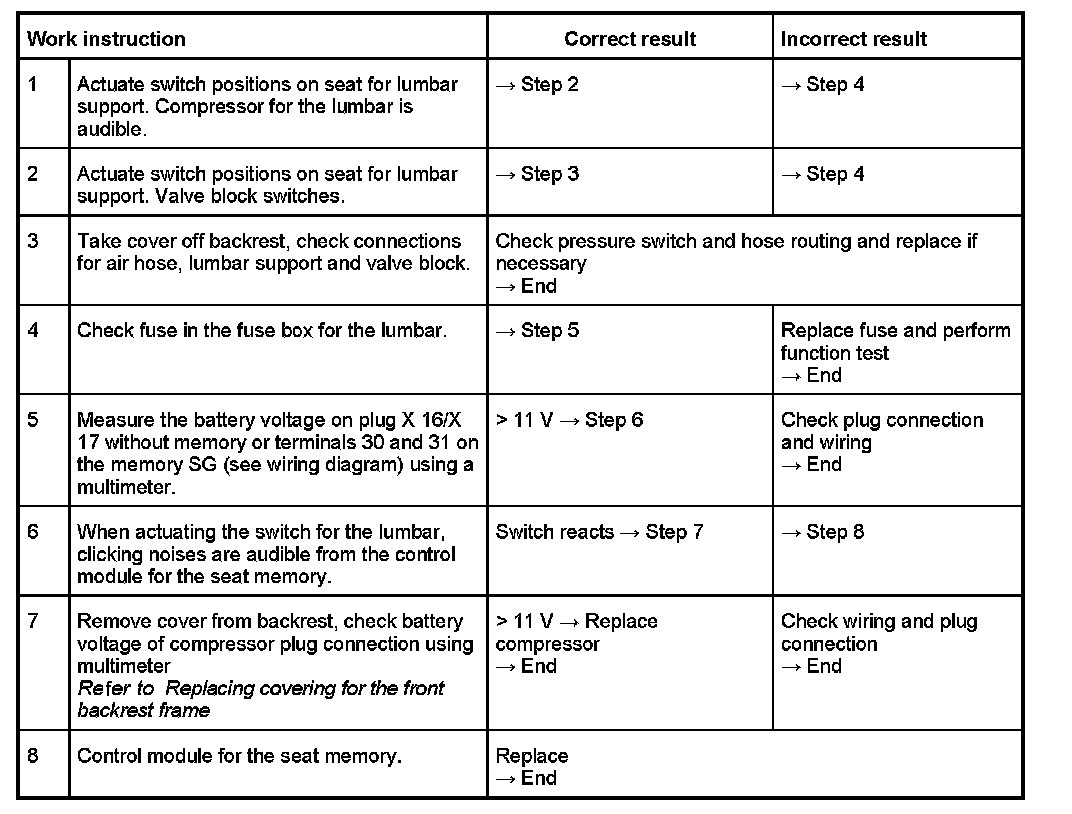

Test plan for the lumbar adjustment device

In the case of the complaint "lumbar support does not function", proceed according to the following work instruction. As the seat functions vary, the test plan principally complies with the seat version with seat memory adjustment. Work aids: Use wiring diagram and multimeter.
