Washer Fluid Level Indicator: Service and Repair
Removing and installing fluid level indicatorRemoval 1.
Remove tank for windscreen washer system.
2.

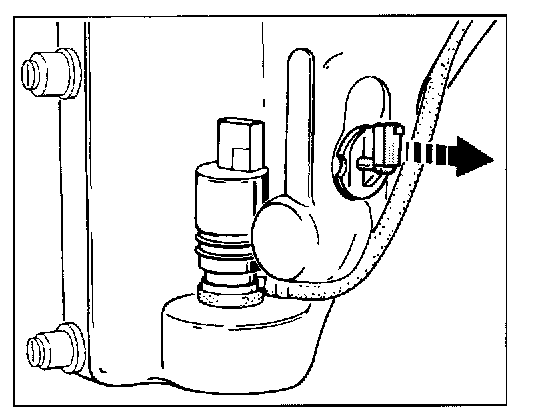

Pull sensor for fluid level indicator out of the tank to the side.
Installation 1.
Check rubber sleeve for sensor, replace if necessary.
2.
Install sensor and tank, fill in water and perform a function test.
