Lighting and Horns: Service and Repair



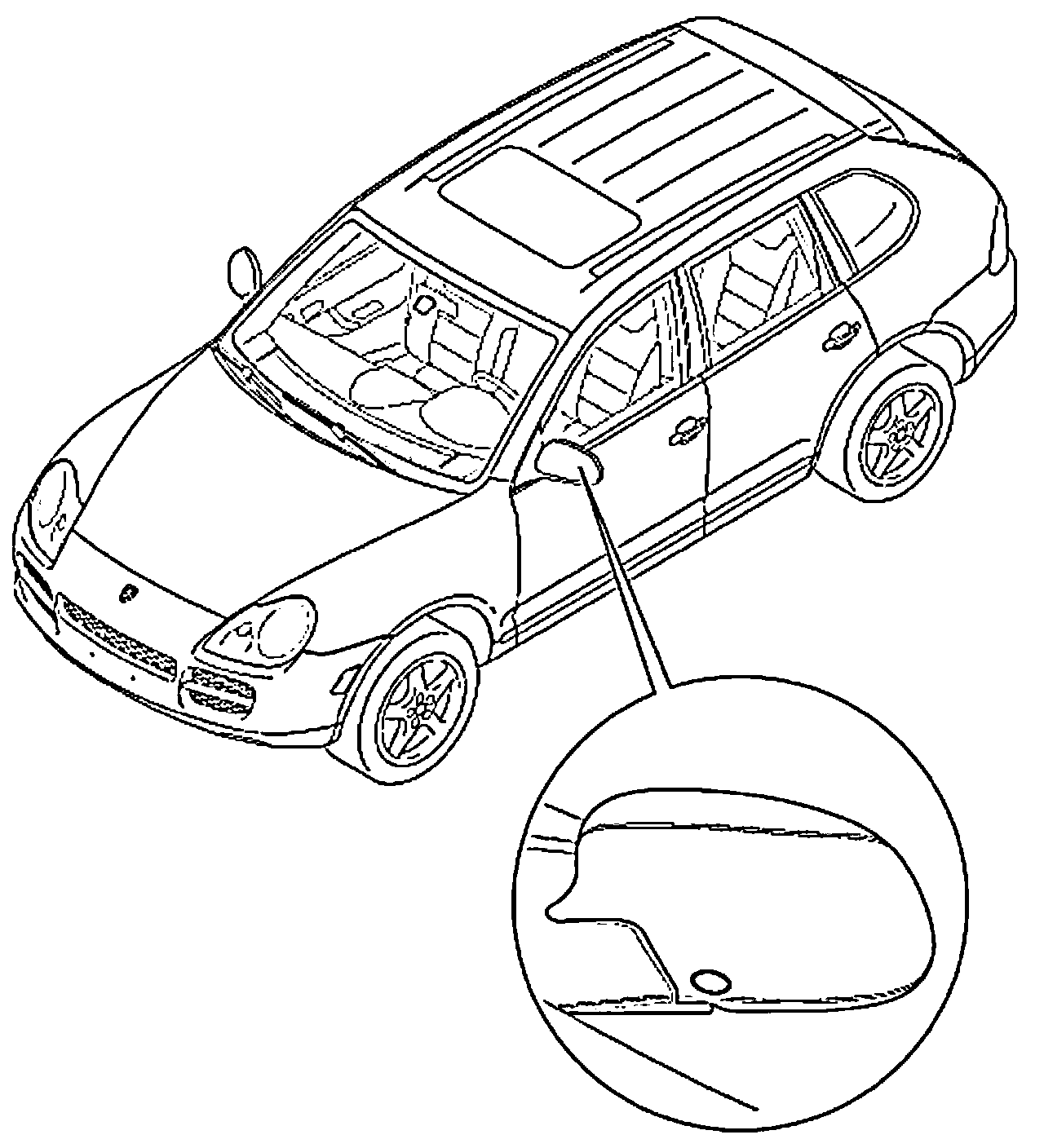

Removing And Installing Light In Rearview Mirror







Removing Light In Rearview Mirror
1. Remove mirror glass.
2. Remove upper mirror housing.







3. Slide back plug connection "arrow A" and remove from holder "arrow B".
4. Release plug connection "arrow C" and disconnect "arrows D".
5. Remove lower mirror housing.







6. Press out light from mirror housing "arrow".

Removing Light Bulb In Rearview Mirror

WARNING: Risk of short circuit: Before removing the light bulb in the rearview mirror, take out the ignition key and switch off the light switch.







1. Pull bulb holder from light housing "arrow A".
2. Remove bulb from bulb holder "arrow B".

Installing Light Bulb In Rearview Mirror







1. Insert bulb into bulb holder "arrow A".
2. Insert bulb holder into light housing "arrow B".

NOTE: When inserting bulb holder, ensure that the marking "C" is opposite the locking tab "D".

Installing Light In Rearview Mirror







1. Press light into mirror housing "arrow A" until locking tabs "B" are felt to engage.







2. Pull lead through mirror cover "arrows".
3. Install lower mirror housing.







4. Push together plug connection "arrows A" until locking tab "B" can be felt to engage.
5. Insert plug connection into holder "arrow C" until it is felt to engage.
6. Install upper mirror housing.
7. Install mirror glass.
