Air Injection Pump: Service and Repair

Removing And Installing Secondary Air Pump







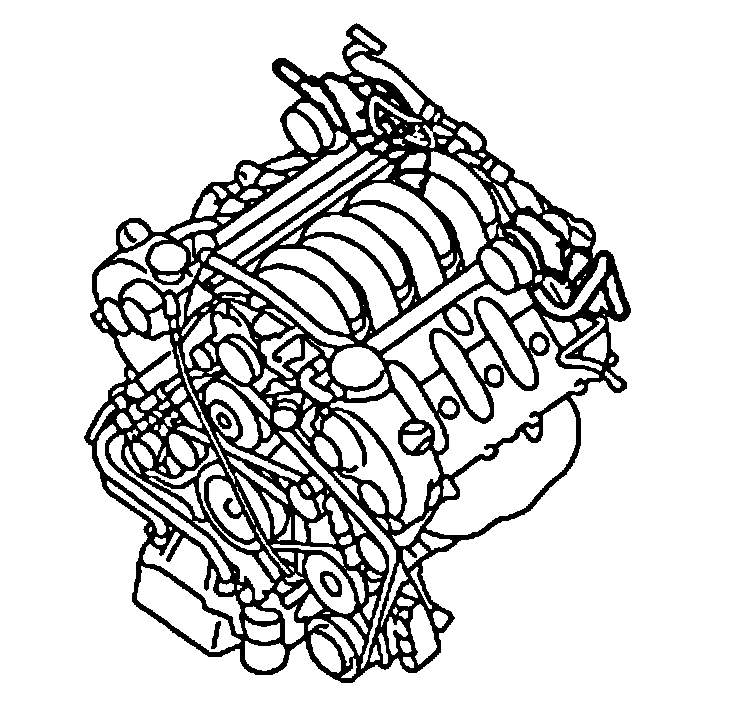

Removing secondary air pump

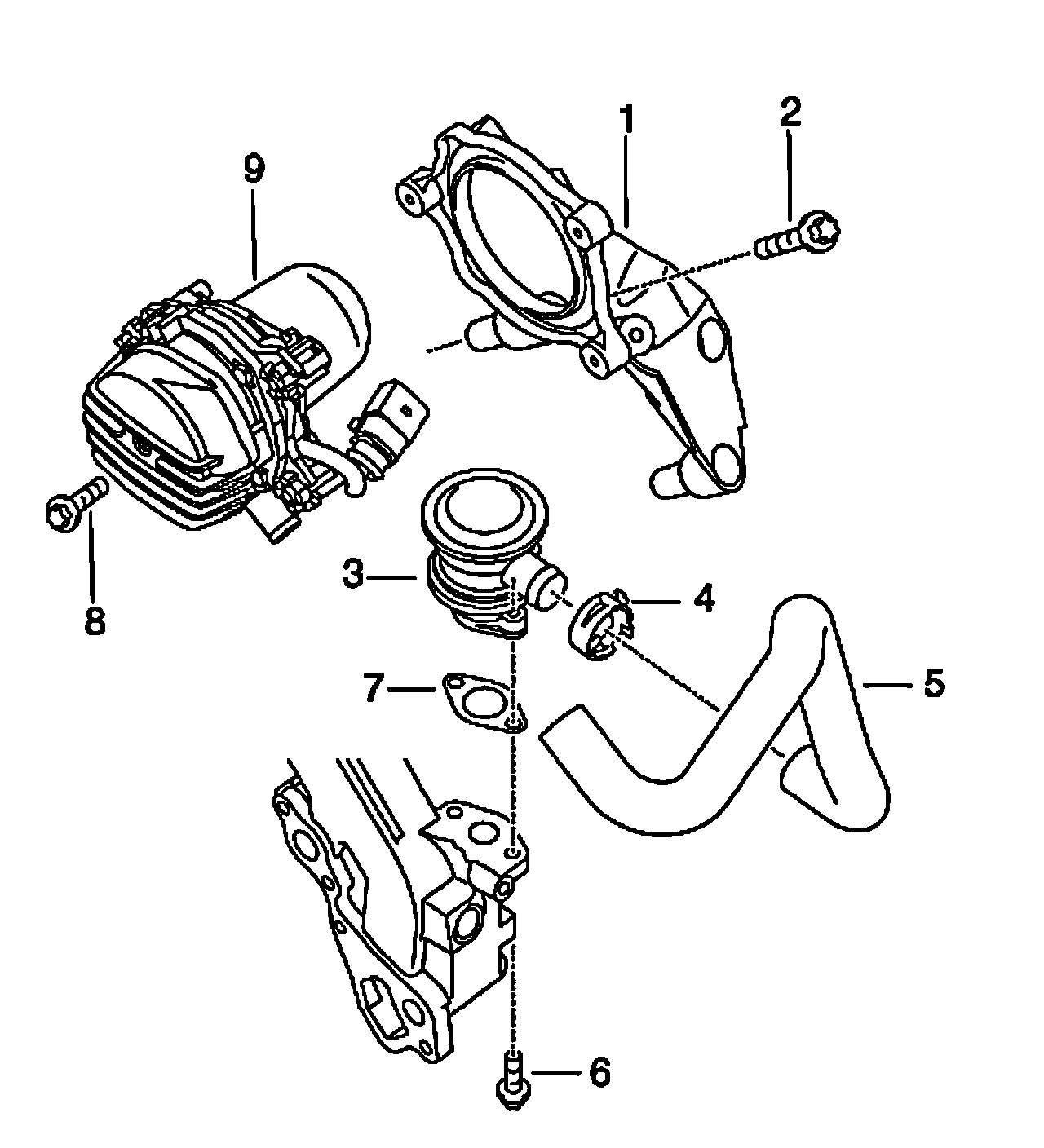

No. 1 - 9:

Removing secondary air pump

NOTE:
- The description only relates to one secondary air pump.
- The 2nd pump are removed in parallel.

1. Remove engine compartment cover on the left, right and rear.
2. Remove hose on the secondary pump. Then separate the electric connection on the secondary air pump.







3. Unscrew the 3 fastening screws on the secondary air pump.







4. Take the pump out of the holder.

Removing bracket for secondary air pump
1. Undo the 3 fastening screws on the bracket and remove the bracket.

Installing bracket for secondary air pump
1. Tighten the 3 fastening screws (M6 x 50) to 10 Nm (7.5 ftlb.).

Installing secondary air pump
1. Link the electric connectors together and insert the pump into the bracket. Then connect the hose to the secondary air pump fitting.
2. Then tighten the 3 fastening screws (M6 x 50) to 10 Nm (7.5 ftlb.).







3. Install engine compartment cover on the left, right and rear.

Tightening torques
