Changing Oil For All-Wheel Final Drive
Changing oil for all-wheel final driveNote: Use only oil approved by Porsche.

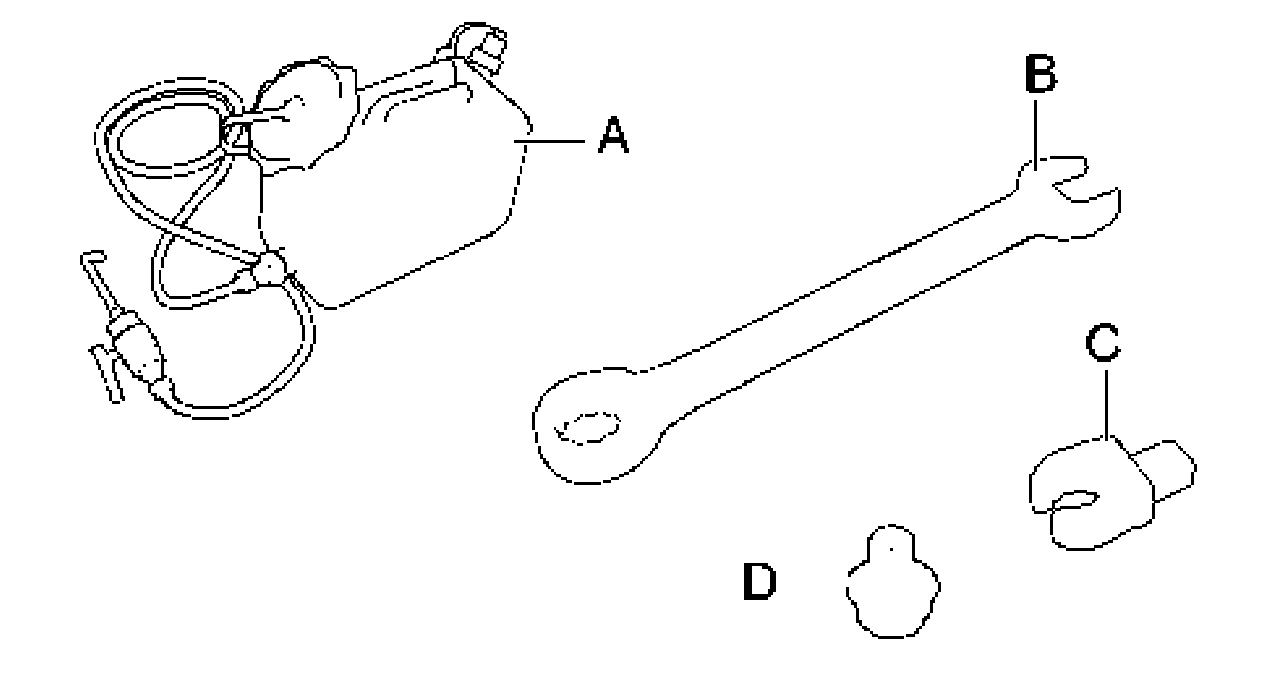

Tools
Changing oil for all-wheel final drive
1. Remove engine guard.
2. Place oil collection pan under the all-wheel final drive.

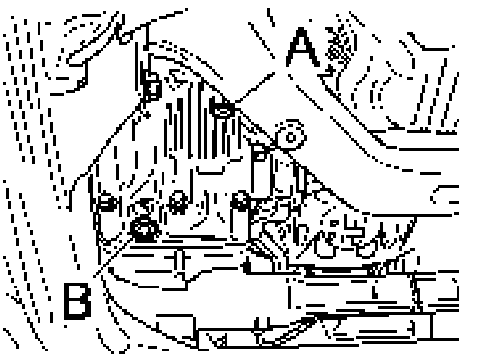

3. Unscrew oil drain plug -B- .
4. Screw in oil drain plug -B- with new sealing ring.
Tightening torque: 35 Nm (26 ft. lbs.)

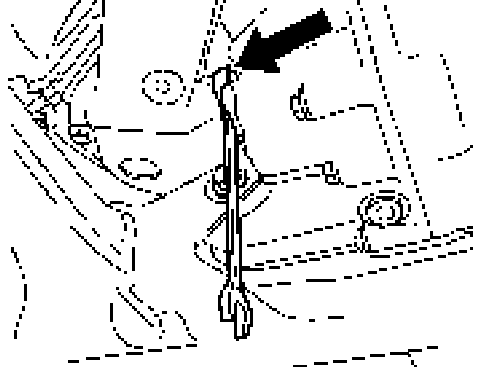

5. Unscrew oil inspection plug -A- using the special inserts model AB 170 tool.

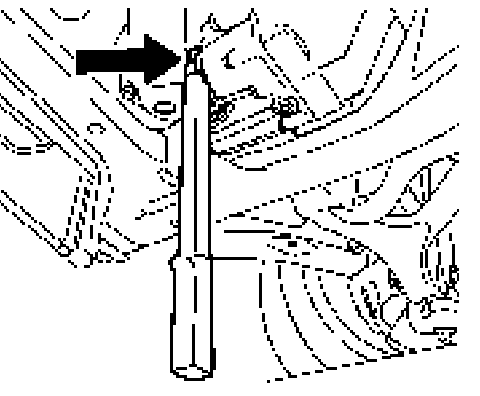

6. Fill with oil to the lower edge of inspection plug -A- using the ATF filling device for filling transmission 161 .
Filling capacity: approximately 1.0 L
7. Unscrew oil inspection plug -A- using the special inserts model AB 170 tool and the accessory for the torque wrench: open ring wrench insert a/f 13 + adapter 98-1 and screw in a new sealing ring.
Tightening torque: 35 Nm (26 ft. lbs.)
8. Install engine guard.

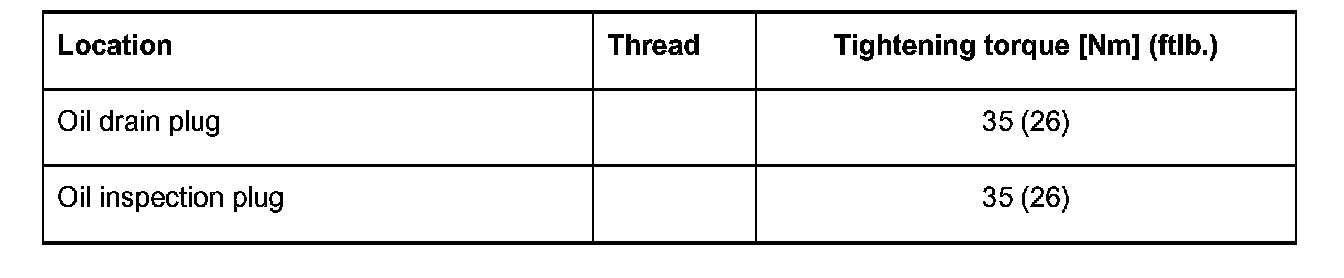

Tightening torques
