Communications Control Module: Service and Repair

Removing And Installing Control Unit For The Telephone

Remove right front seat.

Switch ignition off, remove key, switch off the PCM or the radio.

Removing control unit for telephone

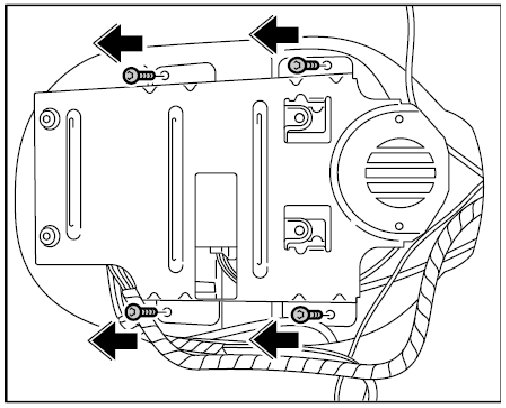

1. Unscrew the 4 fastening screws from the holder.

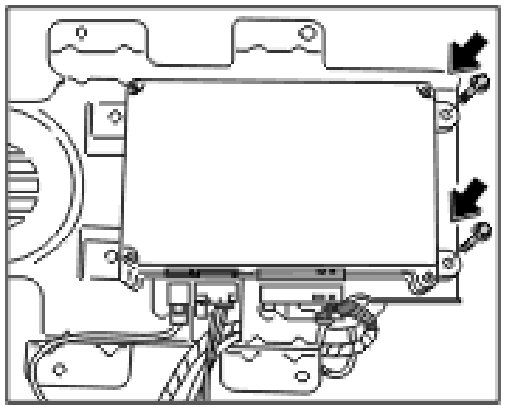

2. Unscrew the two fastening screws on the holder and remove the control unit from the holder.

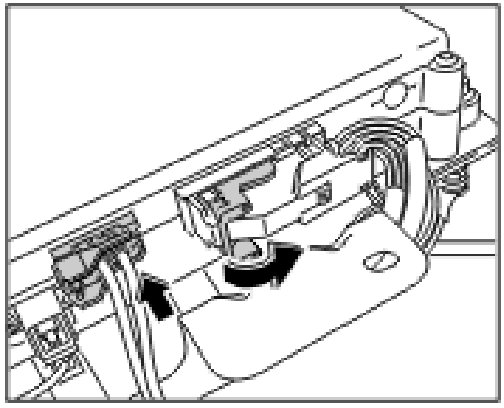

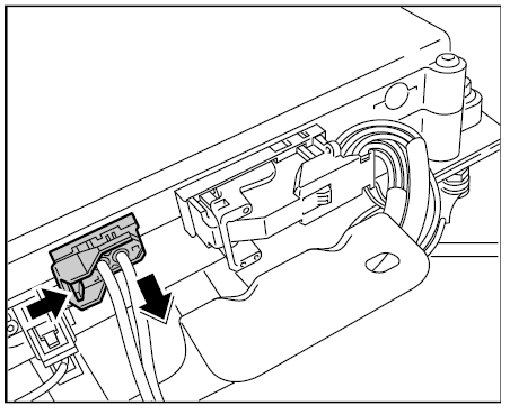

3. Disconnect the electrical plug connections.

Installing control unit for the telephone







1. Connect the electrical plug connections on the control unit.







2. Position control unit on the holder and screw it down with the fastening screws. Tightening torque 10 Nm (7.5 ftlb.).

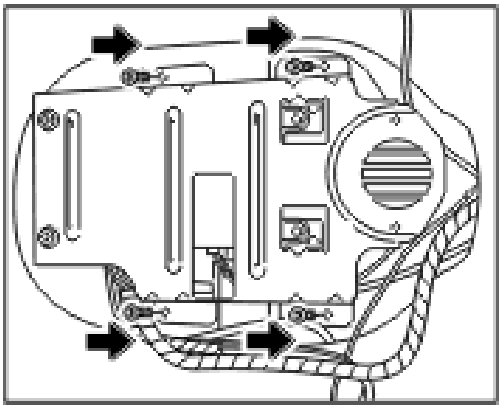

3. Lay the holder with the control unit on the floorpan and screw it down with the 4 fastening screws.

Install right front seat.
